Kernel panic when booting (Qotom Mini PC Q500P)

Hello all,

I received my hardware, which I discussed here, for my XG yesterday.

First I had the problem that the installation did not go through, but after I set everything to legacy in the BIOS, the installation was without problems.

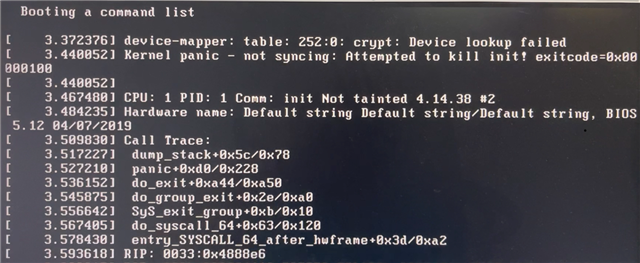

However, I now get a kernel panic when booting:

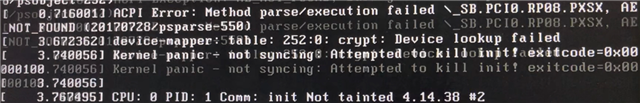

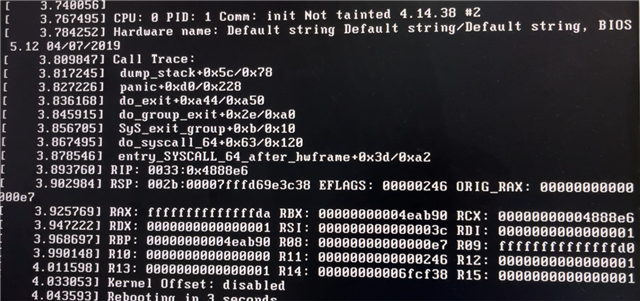

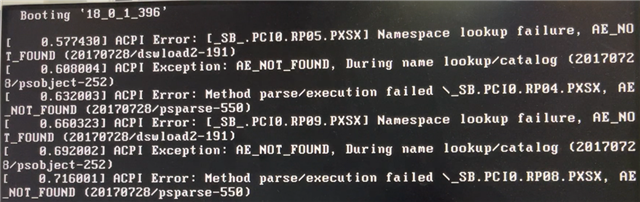

Unfortunately, booting with acpi=off does not help either. Here is a photo of booting with acpi=off

Does anyone have an idea how I can solve the problem?

Regards

Marc

This thread was automatically locked due to age.

0 Dejan Bukovec over 3 years ago

On Q9XXGE-P which I test for friend I get pretty same errors(Different interfaces) but it normally boot and load XG 18.5 ...
Cancel
Vote Up 0 Vote Down

Cancel
0 initB10r over 3 years ago in reply to Dejan Bukovec

Is there a public download for 18.5? I have only found an update
Cancel
Vote Up 0 Vote Down

Cancel
0 Dejan Bukovec over 3 years ago in reply to initB10r

There is no iso for 18.5. You need download 18.0 ISO, install it and then install 18.5.1 update(SW-18.5.1_MR-1.SFW-326.sig).
Cancel
Vote Up 0 Vote Down

Cancel
0 initB10r over 3 years ago in reply to Dejan Bukovec

Unfortunately this way is not possible, because the 18.0 does not start :-(
Cancel
Vote Up 0 Vote Down

Cancel
0 Dejan Bukovec over 3 years ago in reply to initB10r

What HDD do you use? SATA? Im not sure if M.2 or NVME are supported.
Did you update bios? My had one from 2020 and is normaly install 18.0 and update to 18.5 Im update it to last one from 2021 and 18.5 run. I need to disable UEFI and use legacy options, and Im disable speedstep and other saving options.

Only issue I had right now is boot messages but it then boot and run. And last 3 days I have issue that WAN connection do not work anymore. It get IP, GW, DNS from DHCP but gw stay red and do not change to green. Also ping and traceroute do not work on wan interface... Im try change WAN interface from Port8 to Port7 and to Port4 but none help...

P.S: This underlined issue is resolved. XG has been tested in internal LAN and WAN IP on that XG has receive same network as configured on XG VLAN... Im found this when im check routes on advanced console and see two routes for same network(one on WAN and onother on VLAN.
Cancel
Vote Up 0 Vote Down

Cancel
0 initB10r over 3 years ago in reply to Dejan Bukovec

Dejan Bukovec said:
Did you update bios? My had one from 2020 and is normaly install 18.0 and update to 18.5 Im update it to last one from 2021 and 18.5 run. I need to disable UEFI and use legacy options, and Im disable speedstep and other saving options.

From where did you get the current bios? I only found the existing bios at Qotom.
Cancel
Vote Up 0 Vote Down

Cancel
0 Dejan Bukovec over 3 years ago in reply to initB10r

Im get it from official download site:

https://www.qotom.shop/download/BIOS/

Be carefull if model have more than one revision to check(On Frinds is under RAM slot) which revision do you have...
Cancel
Vote Up 0 Vote Down

Cancel
0 Peter-Paul Gras over 3 years ago in reply to Dejan Bukovec

I have my 18.5 installation running on a system on 128GB M.2 PCIe NVMe SSD
No problems at all.
Cancel
Vote Up 0 Vote Down

Cancel
0 initB10r over 3 years ago in reply to Peter-Paul Gras

I've just connected an old SSD. Sophos starts with it after the installation.

Now the question is, what can I possibly do to run the M.2 with Sophos?
Cancel
Vote Up 0 Vote Down

Cancel
0 Peter-Paul Gras over 3 years ago in reply to initB10r

Fiddle with you're BIOS settings...
