XG 550 Web interface VERY SLOW

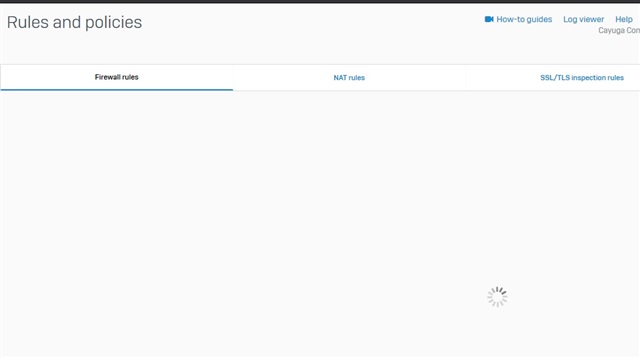

We have an XG 550 and from the beginning the web interface has been sluggish. It has gotten worse and now sometimes moving between windows takes 30 seconds or more depending on what we are doing. We just get the spinning wheel most of the time. Memory/CPU utilization aren't very high at all (memory is less than 60%). The main "control center" screen sometimes takes over a minute to fully load everything just so we can see bandwidth usage. Is there any trick to speeding this up to a workable level?

Edited TAGs
[edited by: emmosophos at 6:49 PM (GMT -7) on 7 Jun 2021]

Top Replies

LuCar Toni over 4 years ago +2

Assuming a object is broken, which cannot be loaded und runs into timeouts within the GUI. You could go to the shell, check the applog.log and csc.log to verify, if you click on firewall rules, there…

Parents

0 BeEf over 4 years ago

Hi Josh,

check the running processes in the CLI. Not every process is multithreaded so the CPU Load is not necessary a good indicator what is happening.
For example we had a testing environment that was bombarding the IDS/IPS with broadcast packets with random destination addresses.
After disabling the IDS service or stopping the IDS process everything went back to normal. Just an example what could go wrong.

Regards,
Bernd
Cancel
Vote Up +1 Vote Down

Cancel
0 Josh Rogalski over 4 years ago in reply to BeEf

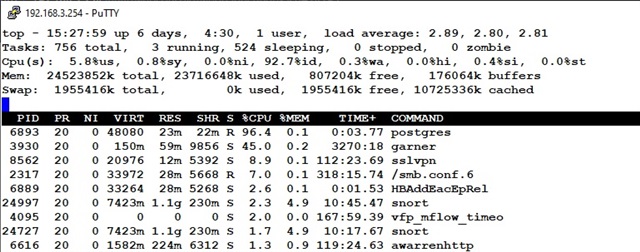

Thank you this slipped my mind. I logged into the shell and ran "top" just to see. postgres seems to be the biggest offender, taking up 96 or 97% at pretty much all times, followed by "garner" which takes up 35 to 46% almost all the time. Everything else cycles up and down as I would expect. Anyone else have this issue with postgres taking up so much?
Cancel
Vote Up 0 Vote Down

Cancel
0 Prism over 4 years ago in reply to Josh Rogalski

Is there any warning or errors inside /log/postgres.log ?
Cancel
Vote Up 0 Vote Down

Cancel
0 Josh Rogalski over 4 years ago in reply to Prism

Strangely no, mostly just just a bunch of log entries for "GMTLOG: unexpected EOF on client connection with an open transaction". If you go back a few weeks you can find a few instances of "database system was interrupted" and other things, but nothing jumps right out besides a bunch of those "unexpected EOF" errors.
Cancel
Vote Up 0 Vote Down

Cancel
0 Prism over 4 years ago in reply to Josh Rogalski

Is there any core dumps at /var/cores ? Either way you should open a support case, there's no apparent reason on why postgres should be pinning a single core of the appliance.
Cancel
Vote Up +1 Vote Down

Cancel
0 Josh Rogalski over 4 years ago in reply to Prism

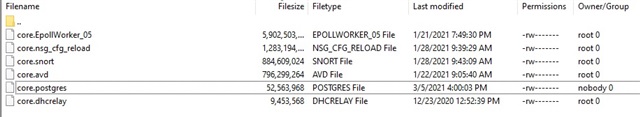

Was not aware of that folder. Checked and there are some core dump files. The one for postgre is strange since it claims to not be owned by anyone and I can't look at it. I will open a support case for this and ask for it to be escalated to see what we have wrong with our firewall.
Cancel
Vote Up 0 Vote Down

Cancel
0 LuCar Toni over 4 years ago in reply to Josh Rogalski

You can flush the database of your xg (loosing all Reports in Webadmin) but it should fix your issue.

If you work with Central Reporting, the data is there anyway.
Cancel
Vote Up +1 Vote Down

Cancel
0 Josh Rogalski over 4 years ago in reply to LuCar Toni

Any chance you can point me towards that command? I would like to run it today at the end of the day. I will let my team know about the reports and that they are still likely in Sophos Central. Thank you!
Cancel
Vote Up 0 Vote Down

Cancel
0 LuCar Toni over 4 years ago in reply to Josh Rogalski

Its not a command, Instead its a promt on the shell: https://support.sophos.com/support/s/article/KB-000035779?language=en_US

Sophos Firmware Version SFOS 18.0.4 MR-4

Device Management

1. Reset to Factory Defaults
2. Show Firmware(s)
3. Advanced Shell
4. Flush Device Reports
0. Exit

Select Menu Number [0-4]:

Do you use Sophos Central Firewall Reporting as a Product? Because if you dont, you will loose your reports.
Cancel
Vote Up +1 Vote Down

Cancel
0 Josh Rogalski over 4 years ago in reply to LuCar Toni

We had it configured for a time period, but I am unsure if it is configured right now. Shouldn't be a problem. Does doing "Flush Device Reports" require a reboot of the firewall? It is OK if it does, but I just need to know ahead of time.
Cancel
Vote Up 0 Vote Down

Cancel
0 LuCar Toni over 4 years ago in reply to Josh Rogalski

As far as i know, it does. But in HA it will not reboot both appliances. Didnt perform this in a while, not sure right now.
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 LuCar Toni over 4 years ago in reply to Josh Rogalski

As far as i know, it does. But in HA it will not reboot both appliances. Didnt perform this in a while, not sure right now.
