HTTP scan downgrade the Wifi speed from M to K bits with iOS device

Hi Shunze,

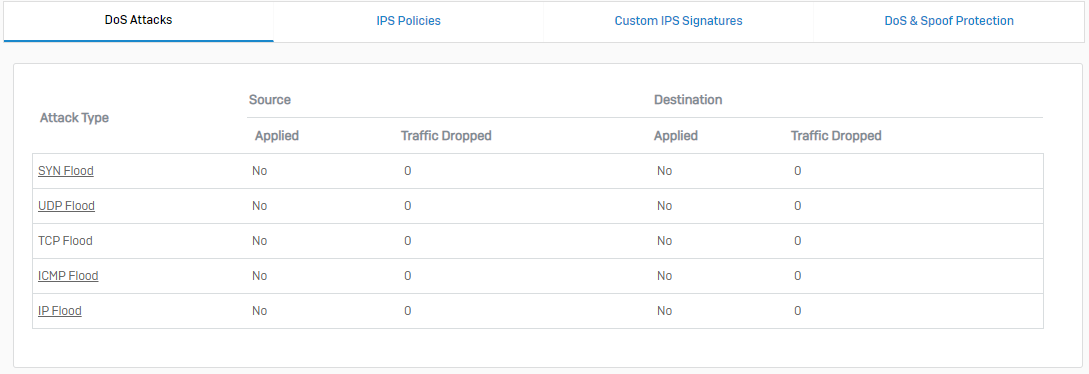

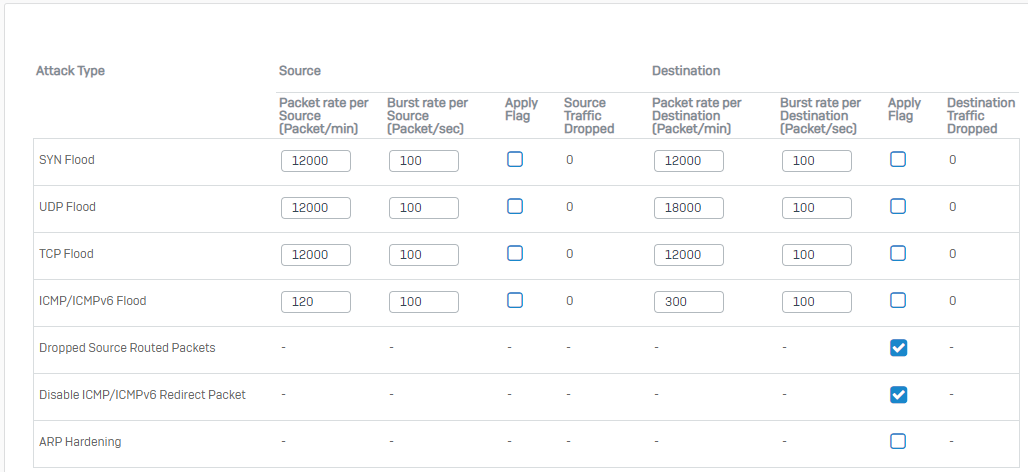

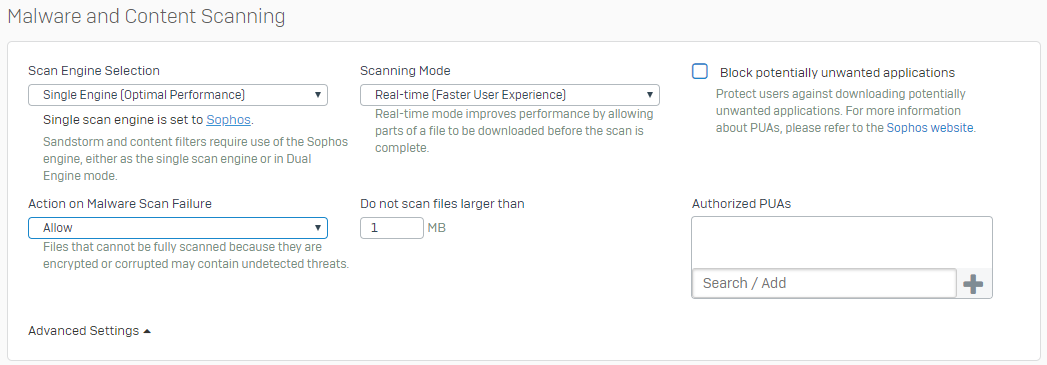

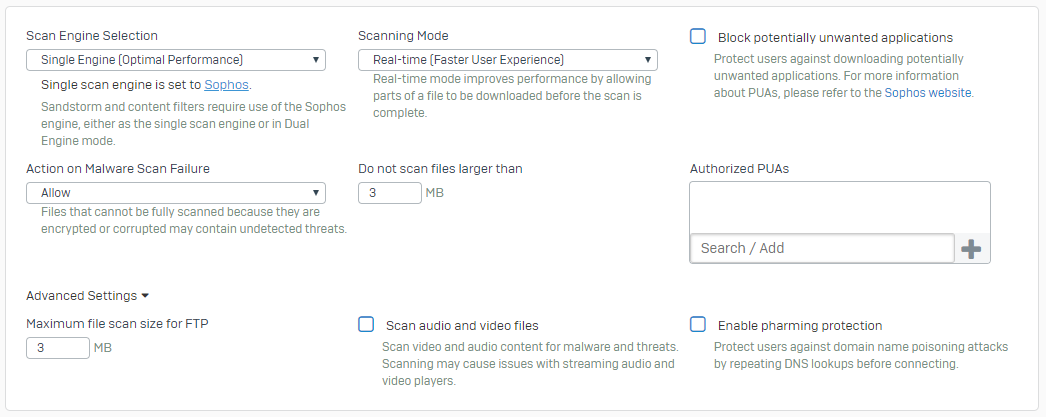

what does the advanced settings tab show? Also what do you see in the IPS DOS tab?

Ian

As following.

Hi Shunze,

I have my APs at the higher throughput setting. My experience with the AP55 and MAC and iPad is the take awhile to ramp up during downloads and do show very poor performance unless big file is moved.

Om 2.4ghz most devices idle at 72mb/s where as on 5ghz the MACs idea at 24mb/s with the wider bandwidth channels. Previously they idled at 6mb/s.The iphones on the other hand connect at about 300mb/s and quickly ramp to over 600mb/s just checking mail.

The w10 machines connects most of the time at over 300mb/s on a 5ghz SSID.

I hope this helps a little bit, but for any further digging you will have to wait until a support mod checks in or the product support team ring back.

Ian

I am having the _exact_ same issue. My configuration is identical with only two exceptions - I'm running AP100 and AP15 and do not have client isolation enabled.

I've tried every permutation of settings (on/off) but cannot resolve it. I get decent to great 'download' speeds (i.e. server on LAN -> Wireless client), but absolutely horrendous (kb/s) 'upload' speeds (i.e. Wireless client -> Server on LAN). Does not seem to matter the protocol - can replicate with CIFS, SCP, HTTP and HTTPS.

Does not matter the client - Asus AP (bridge mode); Dell / Windows 7480; New Macbook Pro; Macbook Air; iPhone; iPad; Surface Tablet ... they all exhibit the same behavior.

Please advise! Perhaps instructions on how to 'downrev' AP firmware to something more stable.

Dear All,

Sophos has identified the issue was a bug.

The TSO should be off on ethtool.

TSO: TCP segmenation offload.

TSO is to offload TCP segmentation to NIC; CPU doesn't perform TCP segmentation anymore, to save CPU resource.

But when create virtual Wifi NIC (Separate Mode), the value is on.

That makes the issue happened.

Workaround as following,

Log on XG firewall SSH terminal using admin account. Once authenticated, you will be presented with the Sophos Firewall console menu.
Go to 5. Device Management > 3. Advanced Shell, and run the following commands
ethtool -K Rock_User tso off
ethtool -K Rock_User5 tso off
ethtool -K GuestAP tso off
ethtool -K GuestAP5G tso off

Shunze

FYI:

https://community.sophos.com/products/xg-firewall/f/firewall-and-policies/105207/slow-downloads-on-smartphones-connected-over-ap/390629#390629

https://community.sophos.com/products/xg-firewall/f/network-and-routing/108597/xg-firewall---wifi-mtu-nach-update-17-1-3/389386#389386

Same issue, not related to iOS

Sohpos knows the issue. but they didn't tell us which version of firmware will fix it.

No word for Sophos...

Hi ShunzLee,

I think I can see why my APs work "correctly" and some of the others don't. The failing setup appears to use virtual WIFI while mine are connected physically, if you understand what I mean?

Ian

Fixed spelling and word placement so sentences make sense.

I do not have Rock_User or Rock_User5 devices (I assume these are your Wireless SSIDs) ... Further, I do not have any devices named after my SSIDs;

I have the following interfaces:

- GuestAP (applied 'ethtool -K GuestAP tso off')

- Port1 (LAN interface - did not touch)

- Port2 (WAN interface - did not touch)

- vxlan3 (applied 'ethtool -K vxlan3 tso off')

- vxlan3.101 (applied 'ethtool -K vxlan3.101 tso off')

- vxlan4 (applied 'ethtool -K vxlan4 tso off')

- vxlan4.101 (applied 'ethtool -K vxlan4.101 tso off')

- ipsec0 (assumed ipSec only interface - did not touch)

- imq0 (appears to be for QoS - did not touch)

After applying the command to what I assume are the appropriate interfaces, performance has actually gotten worse. The speedtest tool on my server now does not even register 'upload' speed. I've also confirmed file transfers behave the same, poorly then fail altogether.

For now, I have attempted to reverse the commands above, and receive the following output:

SFVH_SO01_SFOS 17.1.3 MR-3# ethtool -K GuestAP tso on
Could not change any device features

This suggests the initial command (ethtool -K GuestAP tso off') did nothing. The other vxlanX interfaces saw the 'tso on' command complete successfully.


Please advise. Thank you.

There is a "new" bug ID. Seems like it will be fixed in V17.5 MR1. (so basically next release).

Is there a workaround in the mean time?

The referenced posts call to ifconfig <wifi name> ... I've no interfaces that match my wifi ssid. Which is the correct device(s) - Can someone confirm please?

When should we expect the next release?

You should perform ifconfig.

Check all Interfaces - Separate Zone should create an own interface. https://linux.die.net/man/8/ifconfig

Something beside your Port/eth interfaces.

You should perform ifconfig.

Check all Interfaces - Separate Zone should create an own interface. https://linux.die.net/man/8/ifconfig

Something beside your Port/eth interfaces.
