How SNAT through existing IPSec tunnel - routing problem

astiadmin

Hello anyone,

I have the following problem:

I have a site-to-site IPSec VPN up and running between our SG120 and a customers Cisco ASR Router. However I am not able to get my traffic through the tunnel.

The problem is - as I assume - that I was given an IP address from the customer that I should use as the source IP within the tunnel. This IP is from a public range (66.x.x.x). Now this IP is specified at my side as the local network for my IPSec definition. Otherwise the tunnel will not come up.

When I try to ping any IP on the remote side I don't receive a reply. Also the guy from the "other side" doesn't see any requests from my network through the tunnel. That is no wonder as a traceroute is going out to the internet.

How am I supposed to configure my UTM to send traffic for the destination through the tunnel with the given IP as source address?

Any help is appreciated.

Thanks

Daniel



This thread was automatically locked due to age.
  • 0

    To be more specific I found already some information here. This fits exactly apart from the fact that my NAT address is from a public range:

    https://community.sophos.com/products/unified-threat-management/f/network-protection-firewall-nat-qos-ips/41424/source-nat-on-utm-9

    I did setup everything like this. The NAT address is configured as local network on the tunnel and source NAT is configured to NAT all requests from my local network to the remote network with this IP.

  • 0 in reply to astiadmin

    it is a really bad idea to use a public ip adress for that.

    i think you need to change that first before you can go into troubleshooting.

    greets

    zaphod
    ___________________________________________

    Home: Zotac CI321 (8GB RAM / 120GB SSD)  with latest Sophos UTM
    Work: 2 SG430 Cluster / many other models like SG105/SG115/SG135/SG135w/...

  • 0 in reply to zaphod

    Thanks for you reply but:

    "... this is public IP address but it is not routed on Internet. All our VPN partners are provided NAT IP address in this range..."

    So if this is a problem I assume it is not a general one but one with Sophos UTM.

  • 0 in reply to astiadmin

    then you have a routing / firewall rule  issue

    check your mentioned kb article again.. it should also work with public adress if you configure it proper on both sides.

    i use snat for some ipsec tunnels also (cause customer uses same lan adress) so i cant think its a utm problem



    if you want more specific help we need more specific details form your config.. screenshots form ipsec-tunnel config / nat-config / firewall-rules will help us..



    greets

    zaphod
    ___________________________________________

    Home: Zotac CI321 (8GB RAM / 120GB SSD)  with latest Sophos UTM
    Work: 2 SG430 Cluster / many other models like SG105/SG115/SG135/SG135w/...

  • 0

    Hi Daniel,

    Local networks should consist of the networks behind the UTM; which are to allowed access from the remote site. I think the Customer needs the local network traffic to be NATed via 66.x.x.x IP range. Is that the requirement?

    Thanks

    Sachin Gurung
    Team Lead | Sophos Technical Support
    Knowledge Base  |  @SophosSupport  |  Video tutorials
    Remember to like a post.  If a post (on a question thread) solves your question use the 'This helped me' link.

  • 0 in reply to sachingurung

    Hi Sachin,

    actually I have received only a single adress for NAT. So I think I can only use one host at a time to access there systems. Yes, they want our local IP to be NATted to the 66.x.x.x address when we try to access their network.

    Thanks
    Daniel

  • 0 in reply to astiadmin

    you can nat as many host as you want to the 66.x adress.

    and x-host can work at the same time... they are all natted to these one adress then..

    give us some screenshots and we can help more to find your config problem

    greets

    zaphod
    ___________________________________________

    Home: Zotac CI321 (8GB RAM / 120GB SSD)  with latest Sophos UTM
    Work: 2 SG430 Cluster / many other models like SG105/SG115/SG135/SG135w/...

  • 0 in reply to zaphod

    Sure. Sorry the screenshots took a while. Here we go:

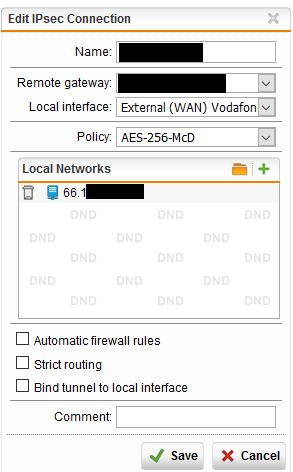

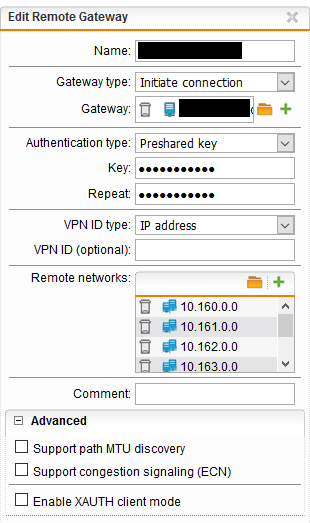

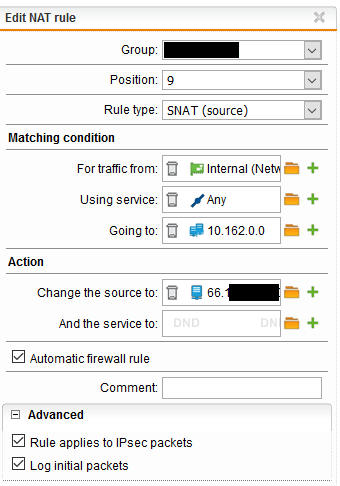

    IPSec Connection:   Remote Gateway:   SNAT rule:



    Thank you very much.

  • +1 in reply to astiadmin

    If you have a firewall rule it should work...

    if you dont have a rule... edit your ipsec-conn and mark "automatic firewall rules" for the first tests ;-)



    greets

    zaphod
    ___________________________________________

    Home: Zotac CI321 (8GB RAM / 120GB SSD)  with latest Sophos UTM
    Work: 2 SG430 Cluster / many other models like SG105/SG115/SG135/SG135w/...

  • 0 in reply to zaphod

    Ok, I did already try with automatic and manual rules but failed. I now tried again but the result is the same. So I guess I have to ask the customer to check their side again?
