Hi All,
We found several similar threads but nowhere a so far a solution which worked for us.
We would like to setup a WAN interface for our VDSL connection.
The Router for the DSL Line is setup to "Bridge" mode and we defined an IP Adress for it (192.168.1.34), so the router is working transparently and just forwarding the signals directly to the ports, firewall.
When we plugin a computer directly to the router, we can setup a PPPoE connection successfully and the internet connection is working.
But when we setup an interface on our astaro firewall for PPPoE, we are getting the following error in the PPPoE log:
2011:10:28-15:50:27 afw pppoe[16785]: Timeout waiting for PADO packets
2011:10:28-15:50:27 afw pppoe-sh: Can not connect DSL AC - retry in 5 seconds
2011:10:28-15:50:47 afw pppoe[16791]: Timeout waiting for PADO packets
2011:10:28-15:50:47 afw pppoe-sh: Can not connect DSL AC - retry in 5 seconds
over and over again.
State and Link of the interface are both down.

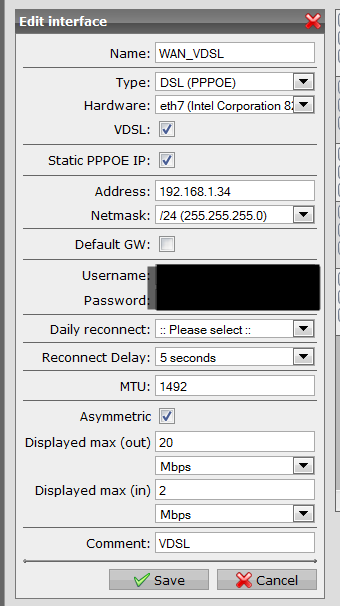

We have attached a picture of our configuration of the interface on the ASG.
We have restarted the firwall and the firmware is up to date.
So far all was working but since a few weeks we are having trouble.
It would be great when we could get some support here.
Thank you very much for you efforts in advance.
