Interfaces - Correct way?

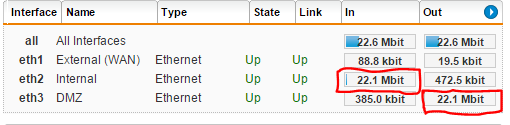

I have trouble understanding the interface module in dashboard view. I'm transferring some files from my internal network to my DMZ network. As shown in the attached file the dashboard view shows high network usage on the IN port for the internal and high network usage OUT for the DMZ. Should this have been the opposite way? I.e. Internal OUT and DMZ IN? Have i configured something wrong?

My infrastructure is modem -> server(3 NIC) ->wifi (internal)
The 3 NIC is WAN, Internal, DMZ. The internal network have 172.16.0.0/24 and DMZ 172.16.1.0/24. WAN is DHCP from my ISP.

This thread was automatically locked due to age.

0 papa__01 over 10 years ago

It's correct.
The point of view is the UTM, not the network.
Cancel
Vote Up 0 Vote Down

Cancel
0 apijnappels over 10 years ago

Yes, like papa_ said, the UTM receives the information from the Internal network (hence IN) and sends it to the DMZ (out)

Managing several Sophos UTMs and Sophos XGs both at work and at some home locations, dedicated to continuously improve IT-security and feeling well helping others with their IT-security challenges.

Sometimes I post some useful tips on my blog, see blog.pijnappels.eu/category/sophos/ for Sophos related posts.
