Overview
The purpose of the Recommended Read is to instruct on how to configure QOS to limit user bandwidth.

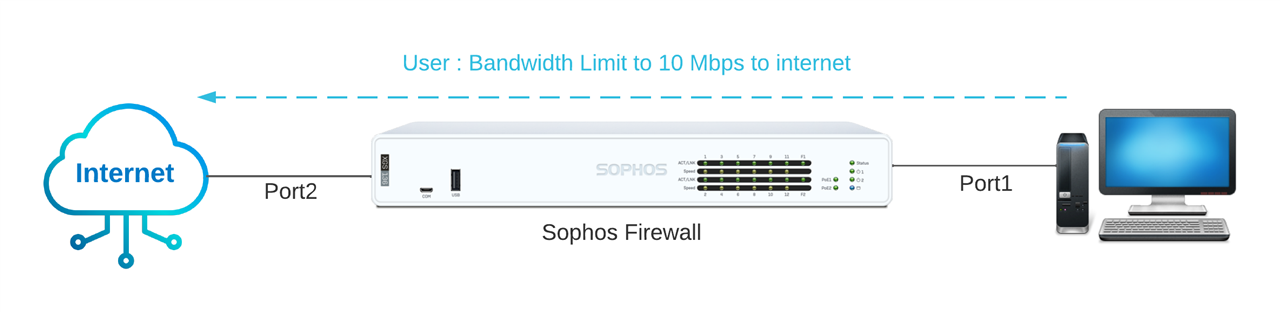

Topology
Configuration 1: Rule Base
Step1: Trafic-Shaping Policy
To limit the bandwidth to 10 Mbps, go to CONFIGURE > System services > Traffic Shaping
Step2: Firewall rule
Go to PROTECT > Rules and policies> Add.
Step3:Testing of Results
Go to web browser and test on any speed test site (ex. https://www.speedtest.net/)
Configuration 2: User Base
Step1: Creating User Base
Here we’re using clientless users. Go to CONFIGURE > Authentication > Clientless users
Step2: Traffic Shaping Policy
Under Traffic> Policy association, Click Users Radio button.
Step3: Enabling User's Policy
Under the Firewall rules > Other security features. Select the policy created.
Step4: Results
Conceptual Difference between the Shared and Individual
Example for Individual concept:
#4 users
1 firewall rule
1QOS 1mbps individual
each wil get 256
#Same for 2 firewall rules
2 users each rule
1QOS 1mbps individual
Each will get 512
#Now 4 rules for 4 users
1 user each firewall rule.
each will get 1MBPS
Example for Shared concept:
#4 users
1 firewall rule
1QOS 1mbps Shared
#Same for 2 firewall rules
2 users each rule total of 4 users
1QOS 1mbps shared
Each will get 256
#Now 4 rules for 4 users
1 user each firewall rule.
each will get 256
Individual - multiplying factor.
Shared - Within that QOS range.
Note - To illustrate the conceptual difference between the two options, we used 1 Mbps as an example.
To convert Mbps to KB/s, there is a link - https://www.gbmb.org/mbps-to-kbs
I hope this article has helped you achieve your requirement and clarified your doubts!
