MAqurading not working properly while using SSL VPN

Hello Shailesh Agrawal,

Thank you for reaching out to the community,

> Under the SSL VPN config, have you enabled the default gateway?


> And under the SSL VPN global settings, have you override the IP of the Port5 [Public IP?]


Thanks for reply Vivek ji.

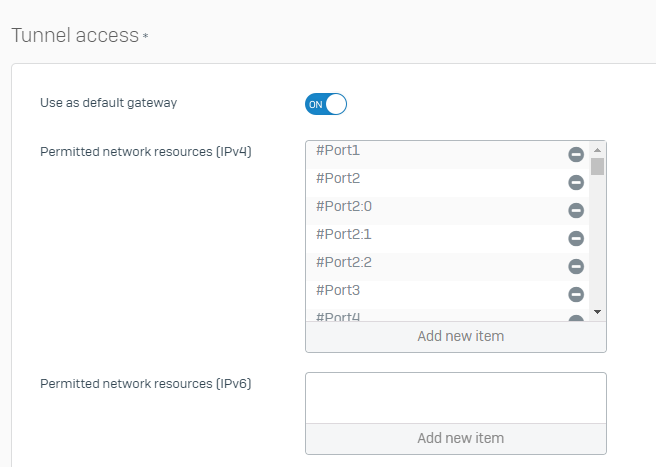

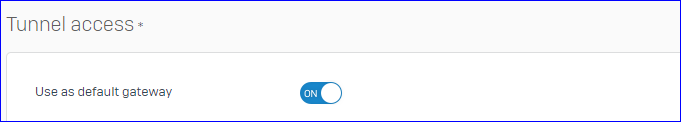

1. Yes, I have Kept "Default gateway " setting on:

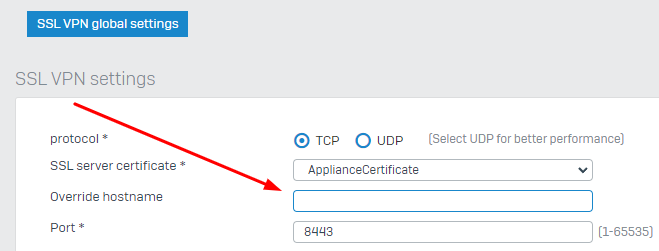

2. The "Override hostname" setting was left empty. I will try using my public ip today.

Thanks.

Hello Vivek ji,

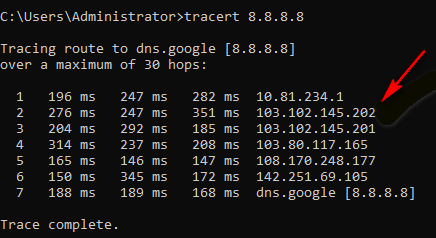

This did not solved my problem. After doing tracert, i found that VPN Connection is going through a different ISP3 and not ISP5 as i wanted. How can i lock VPN Connection to ISP5 only ? Here you can see in red arrow that 2nd hop in tracert is of ISP 3 whereas first hop is correctly Sophos VPN IP.

Hello Shailesh Agrawal,

After updating the Public IP of the ISP5 did you re-download the config file for that user and installed it again ?
If not please do and then try connecting it again.

Yes, I redownloaded config file.
Also, After connecting through my home machine via Sophos VPN connect client, I checked the VPN firewall rule and it is showing data being downloaded so that firewall rule of VPN is working. Only problem is connections are not going through right ISP. I have "Masquerading" set in the connected NAT rule FYI.

I can give you access of my system.

Hey Shailesh Agrawal,

PM [Private Message] me the support access, I'll review the rules and config.

Hello Shailesh Agrawal,

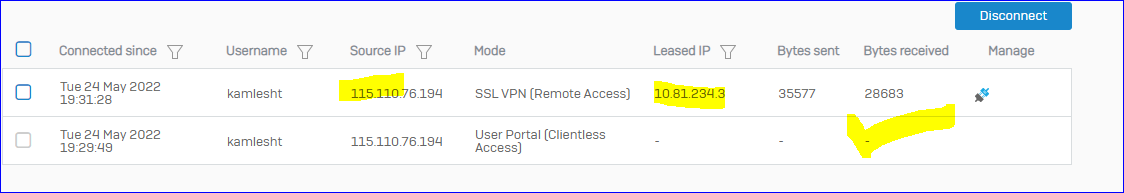

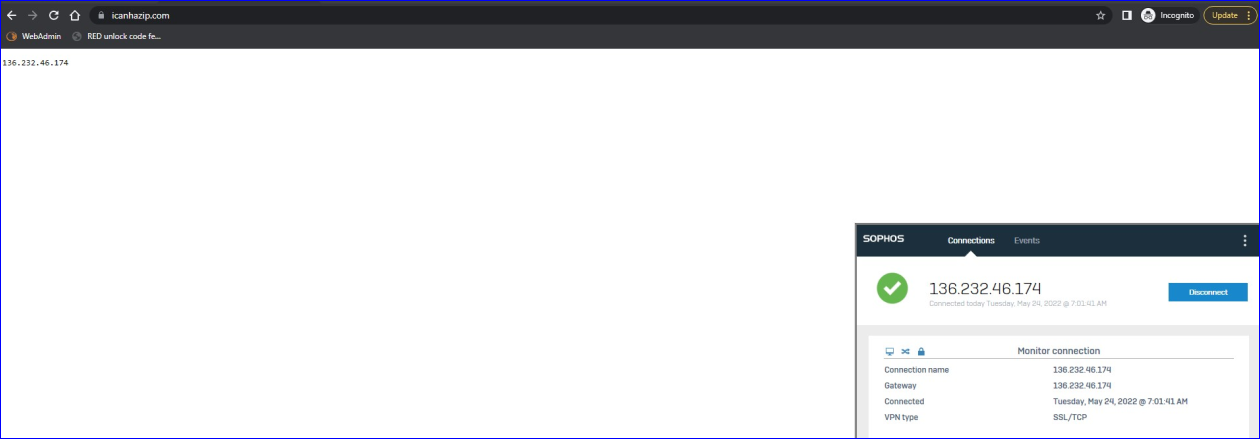

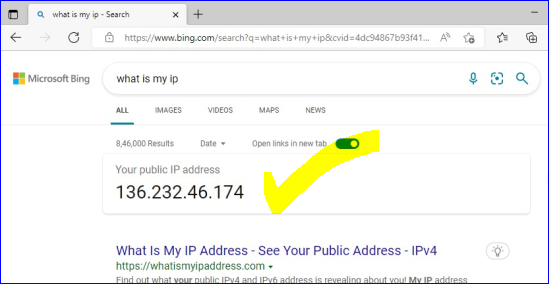

This is working just fine on my client machine:

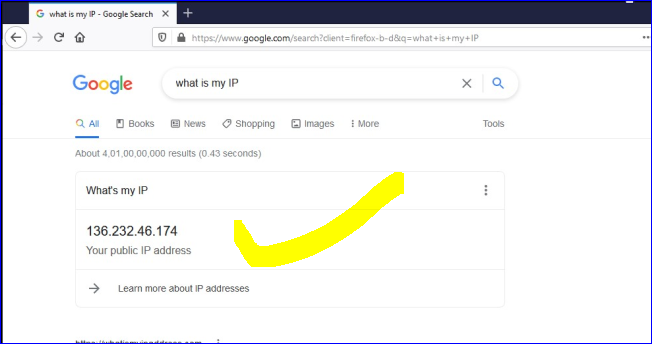

Chrome

FireFox

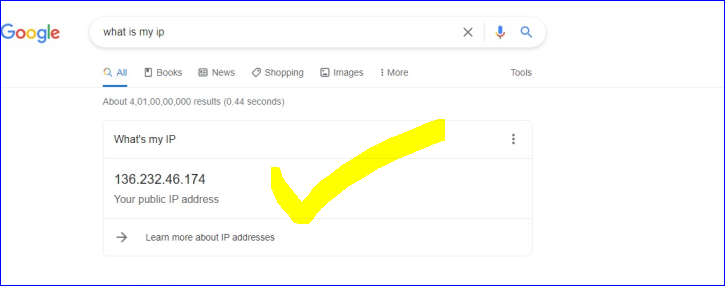

Microsoft edge:


It looks like an issue from your client machine rather than from the SSL VPN config on XG
