reverse routing

Hi,

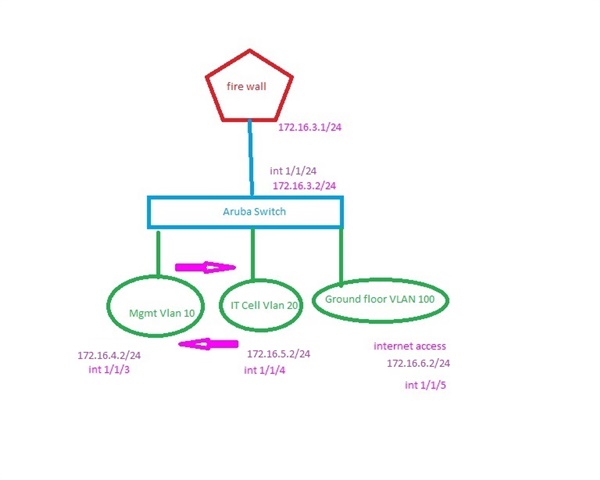

VLAN 100 is not associated with the XG. VLAN 100 needs to be configured into the XG.

Ian

hii

the problem is not vlan 100

problem is reverse routing for vlan 10 and 20..

how to configure reverse routing..

Please post a copy of your firewall rule. Your statement is a little confusing because the switch should be doing the routing between the VLANs.

Do you want the VLANs 10 and 20 to access the internet? Neither VLAN 10 or 20 appear on the XG for that matter neither does VLAN 100 unless you have routing enabled on the switch and the switch should be pointing at the XG for all external addresses.

Ian

yes i want the vlan access internet

firewall rules are default

routing

Hi,

you don’t the routing because that traffic will be dropped by the firewall, you need each vlan that you want to allow access to the internet to be configured on an XG interface.

ian

hiii

I configured routing on XG for every vlan ..

now its working...
