Maintaining incoming IP address when routing traffic

Question

Hi,
 I'm a bit of a novice when it comes to networking and I'm slowly getting to grips with it so please bear with me.

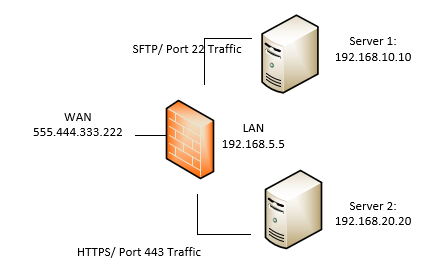

 What I have at the moment is this:

The IP's aren't real (clearly) but it's the basic gist.

The problem I have is that both the SFTP and Webserver see traffic coming from the XG's LAN interface, and what I'm trying to achieve is having the XG send traffic through maintaining the original source IP from the outside world

i.e. user 1 on 80.70.60.50 and user 2 on 50.60.70.80 should have the traffic on each respective services server appear as such, rather than the XG's "192.168.5.5" LAN IP.

The NAT rules I've got in place at the moment -do- work, so traffic is getting to the right place, I'm just not clear on what I need to adjust (assuming such a thing is even possible?) to get to where I want to be.

My thanks in advance for any pointers in the right direction.

Project2501 · Accepted Answer

Hi, We found the problem! The issue was with the LAN NIC on the XG, there was security controls in place and rules for internal traffic, what we had missed of course was that with original source IP in place, that rule was then blocking the traffic from the LAN NIC to the rest of the internal networking! Thanks everyone for your assistance though, it did ultimately help steer the diagnostics.

emmosophos · Answer

Hello there,

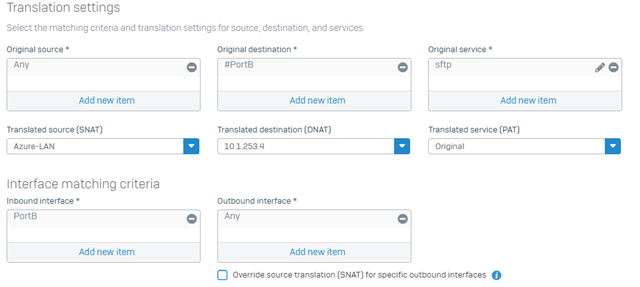

 Thank you for the screenshot, you will need to change the SNAT to be the Original. This way your servers will see the Public IP instead of the XG Interface IP.
 This is how my Server sees the connection when I change from Original to MASQ or any other option rather than Original

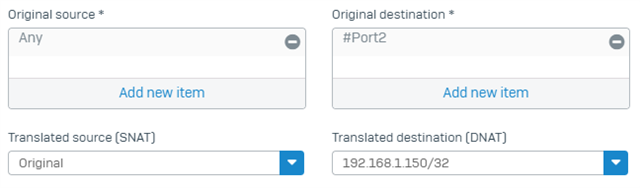

 If I keep Original

Regards,
