Peer to Peer telephone system gets disconnected when i connect sophos xg230

Timothy Wanume

Hi

I hope someone can help

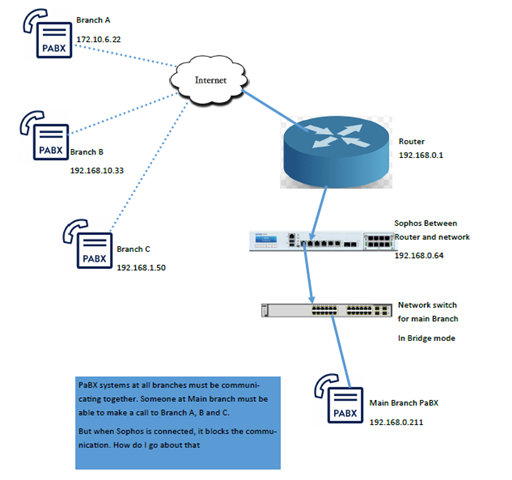

I have installed Sophos XG230 but when i connect it to the network, the telephone system of branch 2 which is connected via peer to peer goes off

Kindly assist



This thread was automatically locked due to age.
Parents
  • 0

    A request for help like this requires a lot more information about your XG configuration.

    ian

    XG115W - v19.5.1 mr-1 - Home

    If a post solves your question please use the 'Verify Answer' button.

  • 0 in reply to rfcat_vk

    Sophos XG230 is in Bridge mode

  • 0 in reply to Timothy Wanume

    Firstly, you need to identify what is failing eg review logviewer for the access of your PABX.

    What is the external address of each PABX and what would make them contact the main office PABX?

    Then you create the firewall rules covering the ports and sites.

    Ian

    XG115W - v19.5.1 mr-1 - Home

    If a post solves your question please use the 'Verify Answer' button.

  • 0 in reply to Timothy Wanume

    take the firewall log (log-viewer) and set the filter (search-field) to IP of telephone. try a call and check allowed/blocked packets.

    I think (if your phones connect directly to other phones) you will see dynamically used high-ports from RTP.

    Note: First set a time-range within logviewer before setting other filters ... otherwise search may need a lot of time.


    Dirk

    Systema Gesellschaft für angewandte Datentechnik mbH  // Sophos Platinum Partner
    Sophos Solution Partner since 2003
    If a post solves your question, click the 'Verify Answer' link at this post.

  • 0 in reply to rfcat_vk

    I created a  LAN to WAN firewall rule with a linked NAT rule and made the Main branch PaBX as source IP and the other branch PaBX as destination

    Also created another WAN to LAN rule and made the Main Branch pbx as the destination while the others are the source.

    However, i still have not yet seen success

  • 0 in reply to Timothy Wanume

    first: check firewall log for rules matching

    second: would suggest to use the "Server access assistant" to create inbound rules.


    Dirk

    Systema Gesellschaft für angewandte Datentechnik mbH  // Sophos Platinum Partner
    Sophos Solution Partner since 2003
    If a post solves your question, click the 'Verify Answer' link at this post.

  • 0 in reply to Timothy Wanume
    Timothy Wanume said:
    with a linked NAT rule

    I'm not sure but when your XG is in bridge mode I would think a linked NAT rule would not be necessary from LAN to WAN.
    I believe you only need to allow the traffic in XG.

    Firewall log may give you good clues on what is going on just as dirkkotte explained.

    Managing several Sophos UTMs and Sophos XGs both at work and at some home locations, dedicated to continuously improve IT-security and feeling well helping others with their IT-security challenges.

    Sometimes I post some useful tips on my blog, see blog.pijnappels.eu/category/sophos/ for Sophos related posts.

  • 0 in reply to apijnappels

    How do I I allow traffic?

    Sorry for my questions which seem basic, am a first timer.

    When I installed it, it actually never allowed access to a remote database server until I disable some preinstalled rule.

    I also tried to block YouTube with several rules but still failed
