Slow Upload Speed on symmetrical 10G

I just got a symmetric gigabit connection (10G).
When using Sophos XG, I get close to the full download speeds, but the upload is a fraction what I should get (300-400mbit).

I have tryed with a ALL ALL ALLOW Rule I disabled also IPS and other stuff but no chance..

SFOS 17.5.12 MR-12 / SFOS 18.0.1 MR-1-Build396
(tested with both and with MTU 9000 on v18). When I I was connected directly to the Modem/Router I reached the right speed, so it's an issue from the FW.

I don't know if it's important to know but I have many Error the whole day (Gateway going down a few minutes later came up)

Appliance Specs:
i5 with AES-NI
8Gb RAM (only 6 usable)
240Gb Intel SSD
Ports: 4x1Gbit / 2xSFP / 4xSFP+

This thread was automatically locked due to age.

0 emmosophos over 5 years ago

Hello Maurosfos,

Thank you for contacting the Sophos Community.

What tool are you using to test the upload speed?

Do you see any error in the counter of the interface? SSH in to the XG, press 5 > 3 and then type #ifconfig.

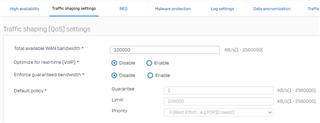

Additionally to this could you please go to Configure >> System Services >> Traffic Shaping settings and make sure VoIP and Guaranteed bandwidth are both disabled.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 maurosfos over 5 years ago in reply to emmosophos

Hi emmosophos

Thank u for your quick replay.
I use many speedtest online and speedtest app from Ookla.

I don't know how I figure out if there are errors?
Traffic shaping is and was disabled both also I have it not selected on any fw-rule.
Cancel
Vote Up 0 Vote Down

Cancel
0 emmosophos over 5 years ago in reply to maurosfos

Hello Maurosfos,

Thank you for the follow-up.

The Interfaces don't seem to show any error.

In the 3 WAN interfaces, you are using the speed provided by your ISP is the same?

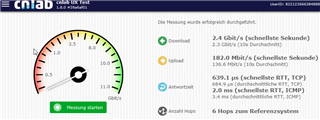

Can you share a screenshot of the results of the speed tests.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 maurosfos over 5 years ago in reply to emmosophos

Hello emmosophos

Ok, thanks for diagnosis.
In the 3 WAN Int. I am using the speed...? Sry I don't understeand the question.

My router has only a 2.5Gbit port instead a 10G so I reach max 2500Mbit, that's enough for the moment. I will change it next month.
It seems that Sophos will limit the upload speed...but I don't know how and wich option I must disable.
Cancel
Vote Up 0 Vote Down

Cancel
0 emmosophos over 5 years ago in reply to maurosfos

Hello Mauro,

Thank you for the follow-up.

I noticed that you have 3 WAN links, so in the 3 of them you have the same speed?

If you have a symmetrical connection, then probably the XG might be load balancing the connection. Can you take a screenshot of the WAN Link Manager (Configure >> Network >> WAN Link manager

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 maurosfos over 5 years ago in reply to emmosophos

Hi emmosophos

No, only 1WAN has symmetrical speed 10G. The other 2 are from the same ISP with Backup 1Gb DW / 100Mbit UP.
Cancel
Vote Up 0 Vote Down

Cancel
0 emmosophos over 5 years ago in reply to maurosfos

Hello Maurosfos,

Thank you for the follow-up.

Would it be possible for you to enable Support Access in your XG and send me the ID via PM.

Monitor & Analize >> Diagnostics >> Support Access >> ON >> Access Status >> And copy & paste the Access ID and send it to me.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 maurosfos over 4 years ago

The issue persist...After 5Month I have tried so many things...
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 4 years ago in reply to maurosfos

Hi,

did you followup with emmosophos as he asked?

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 maurosfos over 4 years ago in reply to rfcat_vk

Hi rfcat_vk

Yes I do. And he couldn't help me and give me the advice to open a Support Case what I made.
But same result. They only told me that Gateway goes down/up means that sophos have problems with the condition/failover rule.
But nobody tell me what I can do to resolve the Problem...
