SIP not working after few days. Reboot solve the issue. How to troubleshoot?

Hello PascalN,

Could you please check if you have configured DNAT rule or Proxy Arp?

Also, any chance you have referred this KB article before?

Hello Aditya Patel,

no Proxy Arp and no DNAT so far.

Isn't that KB for UTM only?

EDIT: OK, I think I have to wait until nextime it is not working and will create a tcpdump.

Hello PascalN,

Appologies for the incorrect KB article, please check this KB article.

Thanks Aditya Patel,

started with "set advanced-firewall udp-timeout-stream 150" and will see what happens (or hopefully not) in the next days :)

Still the same issue :(

Today I was not able to call IN, but only with mobile phones (tested 2 different, with different providers). With my company phone, everything was fine. So I ran

1: tcpdump 'host PBXIP

2: tcpdump 'port  5060

3: everything was working again :/

So, what tcpdump parameters would be the best to figure out those kind of isues? Maybe dump to an external storage over a longer time period?!

Hi Pascal,
i had your reported issue with the ISP & Phone provider and PBX manufactor only, if SIP module is enabled at the XG.

For Auserwald, i print you the difference values between your and my config :)

1. unload SIP_module trough command prompt at the XG.

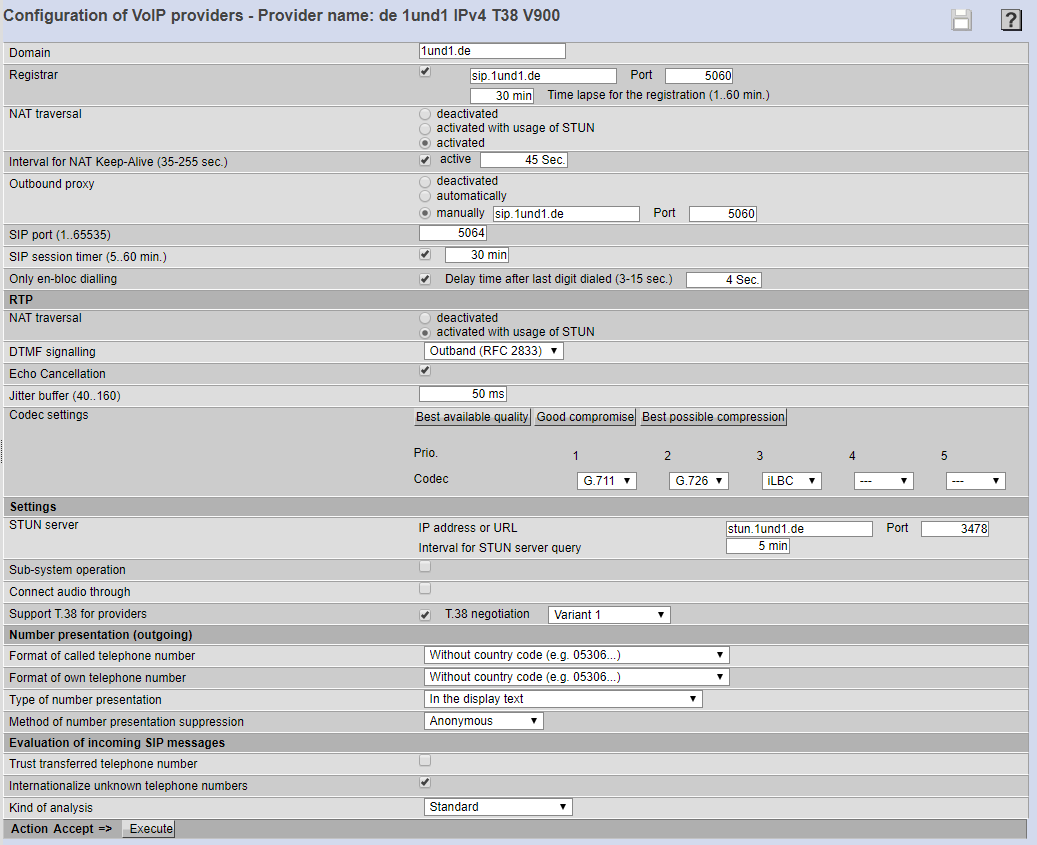

2. The following values are different to one of my Auerswald PBX configs.

Registar
5 min (not 30 min set)

SIP Session time = disabled

Outbound proxy = disabled

SIP STUN intervall = 15 min (mot 5)

NAT keep alive 180 sec (not 45)

DTMF signalling = both (not only 1)


---

Good luck
Chris

Hi Chris,

thanks for your reply. I will try your settings and see what happens :) (or not).

Hi Chris,

thanks for your reply. I will try your settings and see what happens :) (or not).
