Hello all,
I am trying to create a port forwarding rule to forward from the WAN(ANY) to an IP in the LAN ports 80, 443 and 8008 (both TCP and UDP).

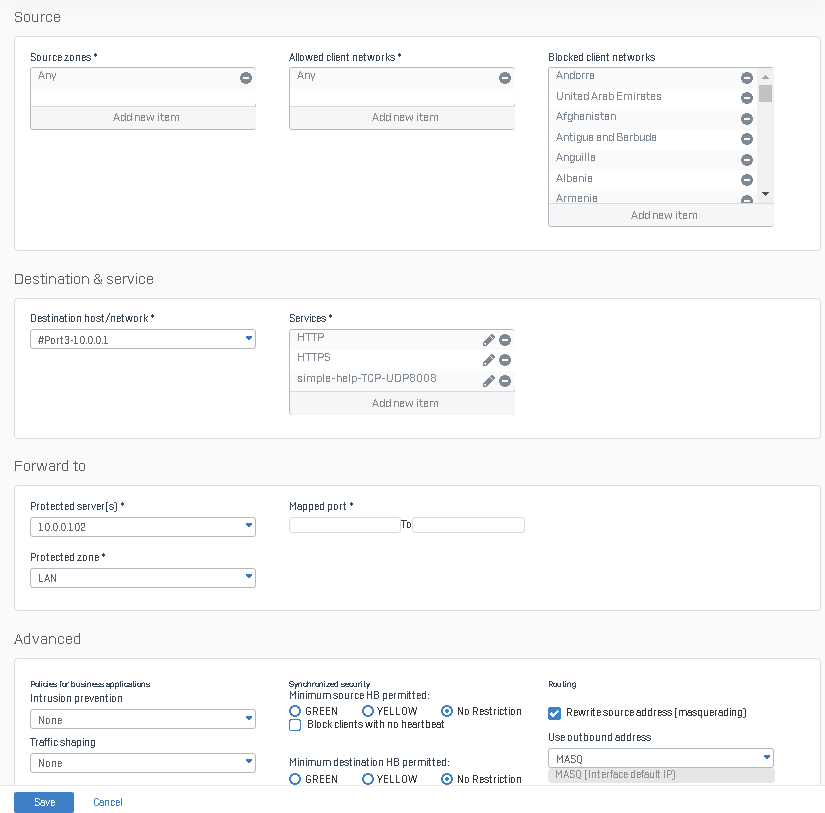

Below is the rule I created on the XG (version SFOS 17.5.0 GA). I blocked every country except the USA.
I set the destination as the port/gateway, and the forward to the IP on the same port/gateway.
I also tried to set the destination as the IP (10.0.0.102) but still doesn't work.
The only odd thing is that the 'Mapped Port' fields next to the protected server field are grayed out, I cannot enter anything.
I checked if the ports were opened canyouseeme.org and GRC shields up.

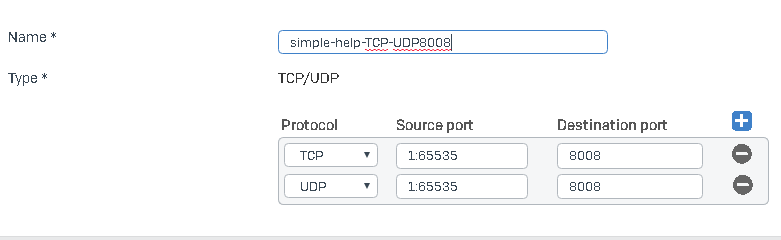

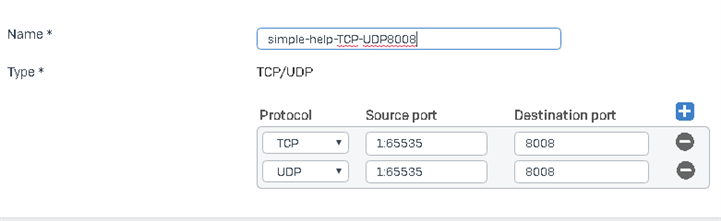

The forwarded services are the standard HTTP and HTTPS, for the customer service TCP/UDP 8008 I placed a snapshot below:

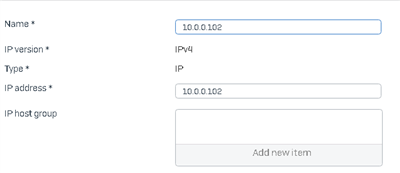

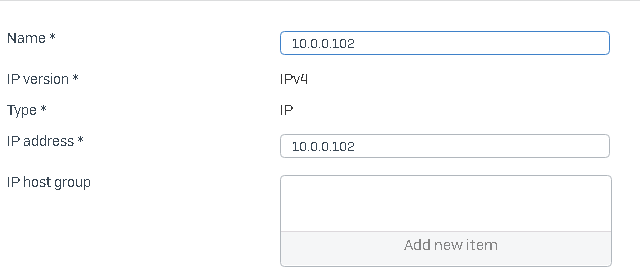

Last snapshot is the protected server, a single IP:

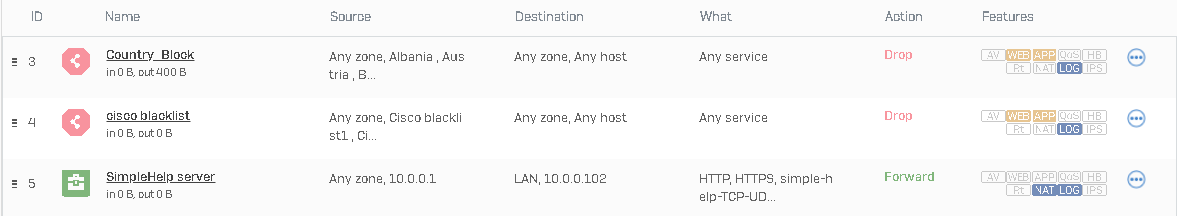

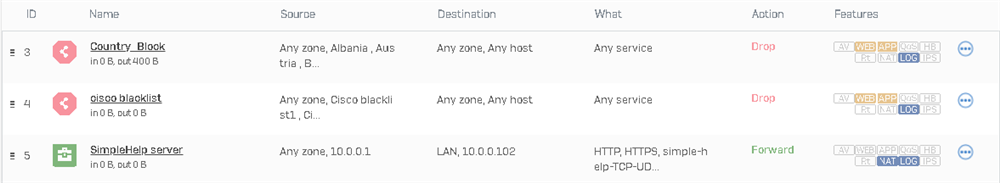

The rule is positioned after two prior rules to drop most foreign and some domestic traffic:
Any help would be greatly appreciated!
