Sophos XG Home VLAN

Question

I am clearly missing something so I'm hoping someone here can help me out.

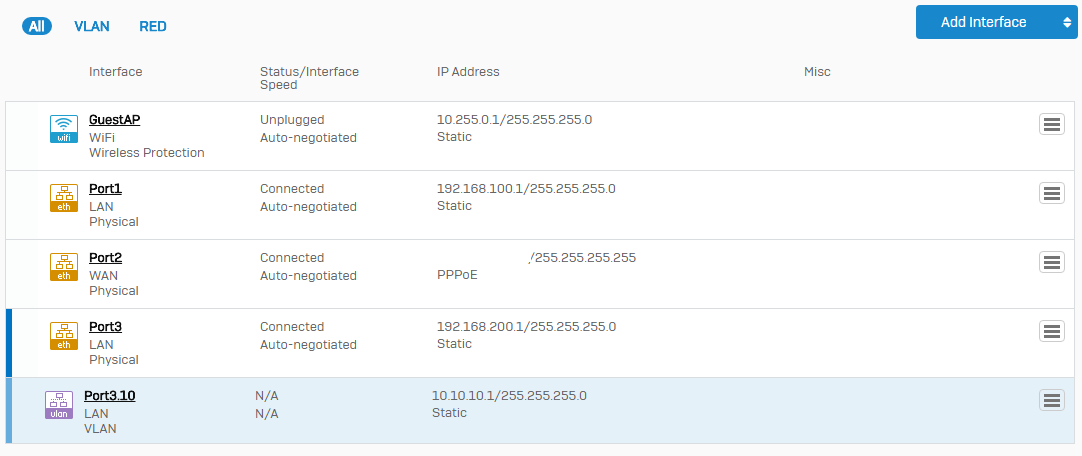

 Here is the Sophos XG config (ignore GuestAP interface, it isn't in use):

 Single VLAN interface using Port3.

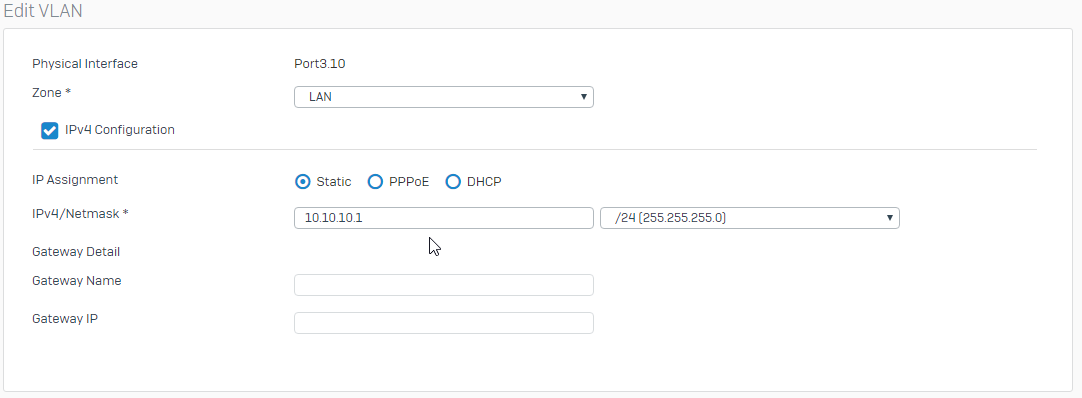

 This is the VLAN interface setup:

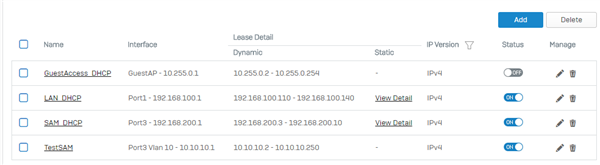

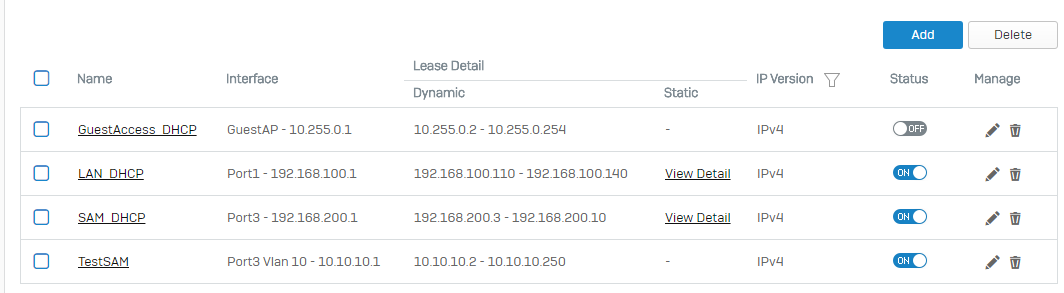

 Here is the DHCP setup:

 I am connecting a laptop directly into the physical port on the XG firewall for Port3 and manually assigning an IP address of 10.10.10.5. For some reason, I cannot ping Sophos XG firewall and have no access to the outside world.

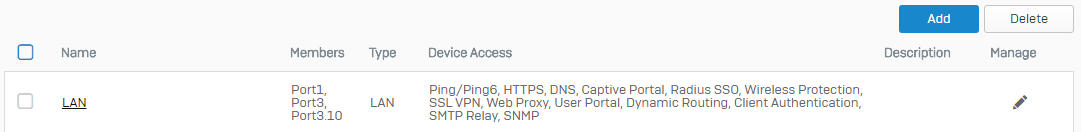

 Both Port3 and Port3.10 are in the LAN Zone and here is the Zone config:

 When I leave the laptop in DHCP mode, it is assigned an IP in the 192.168.200.1/24 range and everything works as expected. But when manually assigned, nothing seems to work.

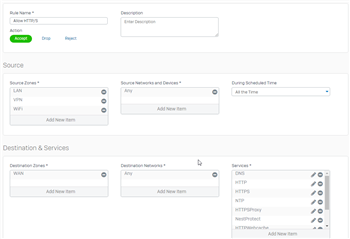

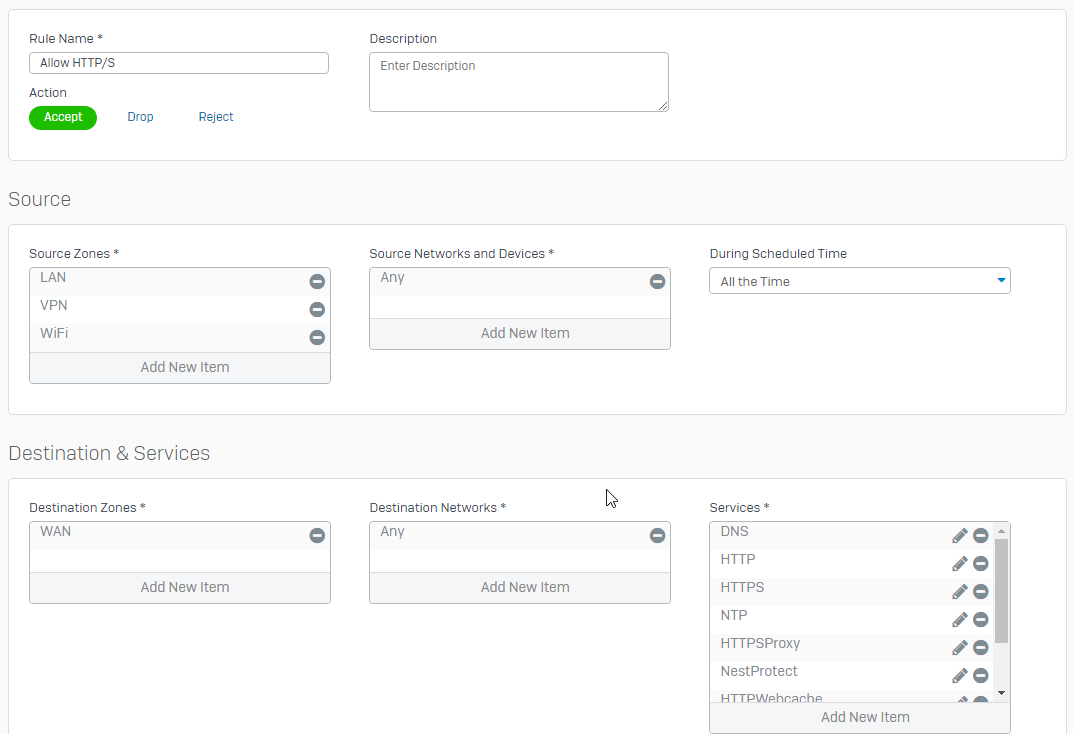

 Here is my firewall rule:

 What am I missing? This should work, correct?

rrosson · Accepted Answer

NashBrydges
 I think the root of your issue is with hyper-v virtual switch. Do a google search for "hyper-v virtual switch and vlan" to see if your configuration is sound in your hyper-v. I have no experience with MS Hyper-V so at this point you are on your own unless someone in the forums has some familiarity with Hyper-V and VLANs.
 -Ron

Aditya Patel · Answer

Hi NashBrydges ,
 You may check the DHCP request incomming to the XG firewall,
 tcpdump 'port 67 or port 68
 We may need to check the PCAP which DHCP option does the request come with.
