Unable to Create working HTTPS WAF Rule

Mark_D

Hi All

I'm trying to create a HTTPS WAF rule to a HTTPS web Server.

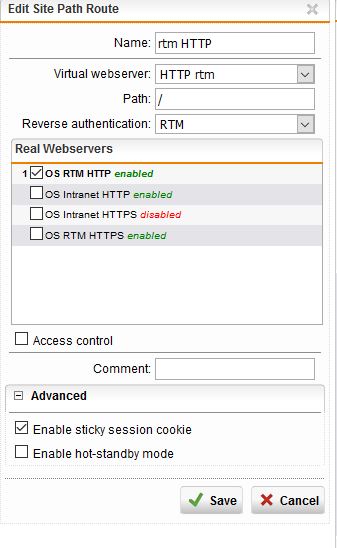

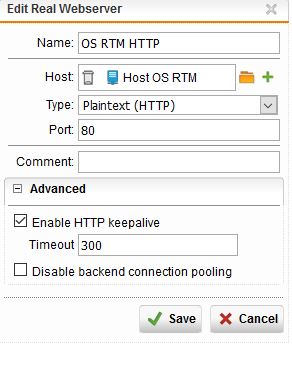

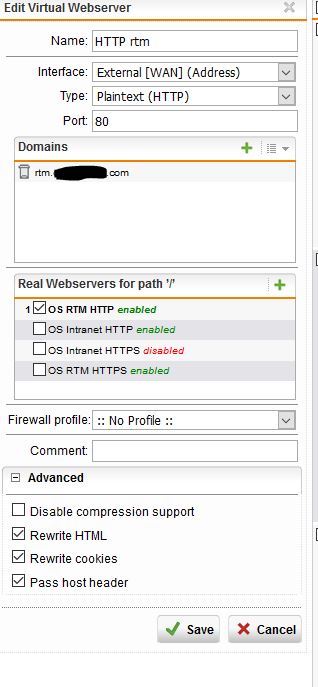

I have a couple of HTTP rules working fine.

If I enter the deatils for this site as HTTP all works fine.

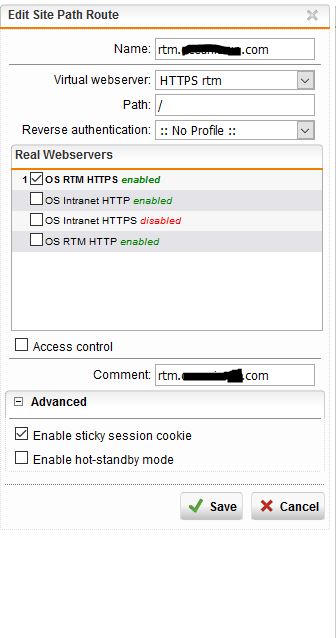

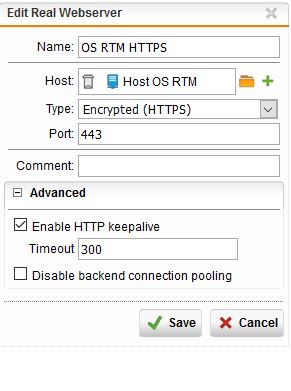

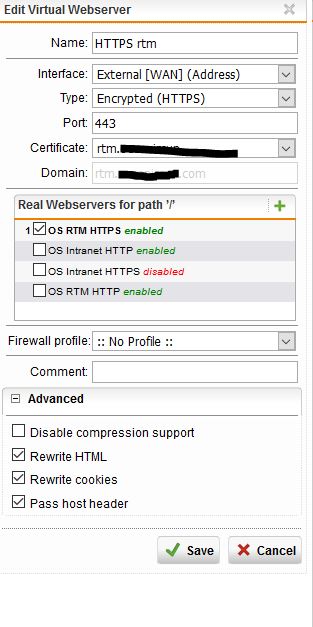

When I create the HTTPS rule I import the cert from the server (The domain name comes up correctly). I enter all the deatails for HTTPS. The green Light comes ON.

Any advise

Thanks

I get the below error logs

Starting failed
2018:08:12-12:29:14 fa httpd[26751]: Restarting gracefully
2018:08:12-12:29:14 fa httpd[26755]: Not running
2018:08:12-12:29:14 fa httpd[26759]: Starting
2018:08:12-12:29:14 fa httpd[26763]: [Sun Aug 12 12:29:14.193305 2018] [core:warn] [pid 26765:tid 4148147904] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26763]: [Sun Aug 12 12:29:14.193345 2018] [core:warn] [pid 26765:tid 4148147904] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26763]: [Sun Aug 12 12:29:14.193572 2018] [core:warn] [pid 26765:tid 4148147904] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26763]: [Sun Aug 12 12:29:14.193579 2018] [core:warn] [pid 26765:tid 4148147904] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26763]: AH00112: Warning: DocumentRoot [/var/www/REF_RevFroMembersoce] does not exist
2018:08:12-12:29:14 fa httpd[26763]: AH00112: Warning: DocumentRoot [/var/www/REF_RevFroOsCrm] does not exist
2018:08:12-12:29:14 fa httpd[26763]: AH00112: Warning: DocumentRoot [/var/www/REF_RevFroRtm] does not exist
2018:08:12-12:29:14 fa httpd[26763]: Syntax OK
2018:08:12-12:29:14 fa httpd[26771]: [Sun Aug 12 12:29:14.310518 2018] [core:warn] [pid 26773:tid 4147873472] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26771]: [Sun Aug 12 12:29:14.310555 2018] [core:warn] [pid 26773:tid 4147873472] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26771]: [Sun Aug 12 12:29:14.310738 2018] [core:warn] [pid 26773:tid 4147873472] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26771]: [Sun Aug 12 12:29:14.310742 2018] [core:warn] [pid 26773:tid 4147873472] AH00111: Config variable ${URLHardening_HTTP_Hostname} is not defined
2018:08:12-12:29:14 fa httpd[26771]: AH00112: Warning: DocumentRoot [/var/www/REF_RevFroMembersoce] does not exist
2018:08:12-12:29:14 fa httpd[26771]: AH00112: Warning: DocumentRoot [/var/www/REF_RevFroOsCrm] does not exist
2018:08:12-12:29:14 fa httpd[26771]: AH00112: Warning: DocumentRoot [/var/www/REF_RevFroRtm] does not exist
2018:08:12-12:29:14 fa httpd[26771]: (98)Address already in use: AH00072: make_sock: could not bind to address xxx.xxx.xxx.xxx:443(external IP of NIC)
2018:08:12-12:29:14 fa httpd[26771]: no listening sockets available, shutting down
2018:08:12-12:29:14 fa httpd[26771]: AH00015: Unable to open logs
2018:08:12-12:29:14 fa httpd[26777]: Sending start signal failed
2018:08:12-12:29:14 fa httpd[26780]: Starting failed


This thread was automatically locked due to age.
Parents Reply
  • 0 in reply to Mark_D

    With the 3x Http WAF sites that are configured all works fine.

    But if I disable the rtm http and turn on the rtm htpps I get the error messages.

    I hope this makes sense.

    This Firewall has 1x external (WAN) interface.

    17x RED devices

    User Portal is on at port 4447 listen any IP

    But SSL VPN is Using 443

    Changed SSL VPN to another Port now working

    WHY the F don't they give you a message or warning or note in the docs.

    What a f'ing trap.



    Thanks BOB

    hope all is well in your world.

    Cheers

    Mark
