Intermittent dropped traffic over IPSec VPN?

Hi all, this is a continuation of the RFC1918 thread I started last week.  We have a VPN set up to a Rackspace-hosted server, and the VPN is passing traffic, but now I'm having some assorted problems with it.

Layout:
5 TIME CLOCKS and 1 Windows server on various subnets  CORP NETS  CORP ROUTER  SOPHOS FW  INTERNET  VPN  HOSTED SERVER

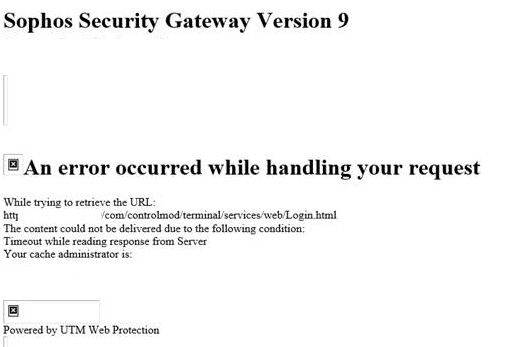

The hosted server is a Windows box, and from it you can access the http page of the clocks for configuration.  By the diagram above, the "HOSTED SERVER" is attempting to open the "TIME CLOCKS" HTTP page.  It works about 95% of the time, but randomly not for the same clock in a row, the HTTP page starts to load, and then in the middle of the page, you get the splash page of the firewall, indicating that the page is timing out.  Local network users never have this issue.
The only non-default setting I've chosen that the VPN wizard did not do was to check, on the Remote Gateway tab, the "Support Path MTU Discovery", thinking maybe that the MTU is too large.  A "ping -f -l" from an allowed inside host to the hosted server shows that the MTU has to be 1410 or lower to avoid fragmentation.

Any ideas?


This thread was automatically locked due to age.
Parents
  • Think of the "blocked" message as meaning that the request "failed" - we all agree that the wording is misleading.

    Cheers - Bob

    Sophos UTM Community Moderator
    Sophos Certified Architect - UTM
    Sophos Certified Engineer - XG
    Gold Solution Partner since 2005
    MediaSoft, Inc. USA
  • Think of the "blocked" message as meaning that the request "failed" - we all agree that the wording is misleading.

    Cheers - Bob


    Following your advice, I added the hosted server to the Destination Transparent mode skiplist, and everything seems to be working now.
Reply
  • Think of the "blocked" message as meaning that the request "failed" - we all agree that the wording is misleading.

    Cheers - Bob


    Following your advice, I added the hosted server to the Destination Transparent mode skiplist, and everything seems to be working now.
