we've been trying to configure an site2site IPSec VPN with some specific requirements but we can't figure it on our own. Lets drill down into deeper details.

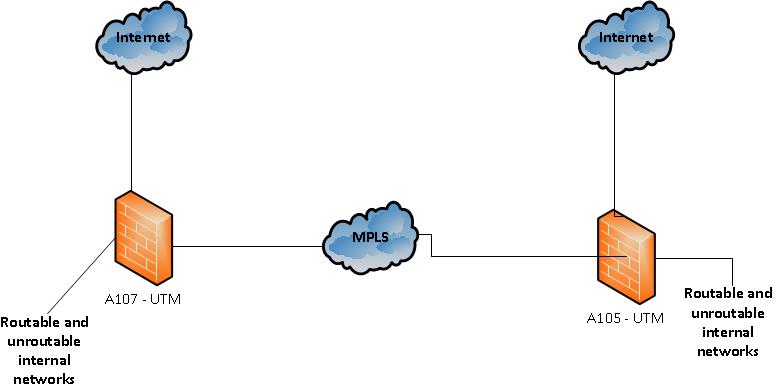

Let's summarize the basic facts (attached picture will help):
- We have two branches, let's say A107 and A105 (internal branch coding, not relevant)
- These two branches have connectivity with all the other branches via MPLS. These branches have their own Internet connectivity as well.
- A107 and A105 have few subnets which aren't routable neither via MPLS nor WAN, they also have few subnets routable via MPLS as well
- Each depicted branch would like to access the "unroutable" subnets of the other branch (i.e. A107 would like to access unroutable subnets in A105 & vice versa). Source address would be from MPLS routable subnet of one branch and the destination subnet would be in unroutable subnet of the other plant.
- MPLS interfaces of the UTMs of both branches can see each other through ICMP, TCP and UDP
- No firewall rules are defined from A105's MPLS interface to A107's MPLS interface and vice versa
- All the routable subnets between A105, A107 and moreover all the other plants are routed via MPLS, nothing is routed via WAN.
Most important question is:
How can we achieve the state when administrators from one branch can access the unroutable subnets located in the other branch from routable subnets and vice versa?
We were thinking about various soulutions of this situation. Let's summarize our outcomes
- RED isn't suitable for us, it needs public IPs to work and we'd like to route traffic to unroutable subnets via MPLS. However, RED would make the unroutable subnets "visible" in between these two branches and only in between these to branches (that is what we want to achieve). What a pity we can't use it.
- NAT - after deeper thoughts, we had to disapprove this solution as well. Let's explain why: We can imagine there would be PAT rules going to devices in unroutable subnets on each branch's UTM. These PAT rules would be located in MPLS interface of each UTM. When we wan't to establish connection from MPLS routable subnet in one branch to MPLS unroutable subnet in the other branch, the first TCP segment (with SYN) abides to PAT rules. The reply (ACK+SYN), though, is routed according to routing table and since the source address (the one sending ACK+SYN) isn't routable in MPLS, the last ACK (going back to unroutable subnet from the routable one) never goes through.
- IPSec tunnel - we defined and successfully established IPSec between A107's and A105's UTMs. We explicitly said the unroutable subnets are reachable through this tunnel (on each side, remote unroutable and local - from MPLS's point of view - unroutable subnets were defined). Problem was, we couldn't get from one branch (from MPLS routable subnet) to the other (to MPLS unroutable) subnet. The routing table told us there were two routes to this unroutable subnet (one through IPSec tunnel with no next hop, U flag and metric:0, the other through MPLS next hop - this was formerly defined with regards to some former experiments). We therefore couldn't be 100% sure that the traffic going back and forth is IPSec encapsulated and. The traffic going from MPLS routable subnet to MPLS unroutable subnet in the other branch was dropped in the begining on local UTM (iti didn't get through the MPLS).
I hope I precisely described our current situation (each branch has unroutable subnets) and the desired outcome (we wan't to access these subnets through MPLS mutually). If you need further info I'm eager to provide it and I'm looking forward to hearing from all of you.
Best regards,
Stanislav Zitta
