I've downloaded the scripts from Azure for Cisco and Juniper so I can try and match their settings.
I've gotten close but I keep getting this NO_PROPOSAL_CHOSEN.
I have tried respond only and initiate.
2015:02:20-11:13:04 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:05 router pluto[1962]: |
2015:02:20-11:13:05 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:06 router pluto[1962]: |
2015:02:20-11:13:06 router pluto[1962]: | *received 56 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:06 router pluto[1962]: | **parse ISAKMP Message:
2015:02:20-11:13:06 router pluto[1962]: | initiator cookie:
2015:02:20-11:13:06 router pluto[1962]: | f6 e0 cf a9 de 40 43 70
2015:02:20-11:13:06 router pluto[1962]: | responder cookie:
2015:02:20-11:13:06 router pluto[1962]: | 02 e3 ba c6 58 95 95 eb
2015:02:20-11:13:06 router pluto[1962]: | next payload type: ISAKMP_NEXT_N
2015:02:20-11:13:06 router pluto[1962]: | ISAKMP version: ISAKMP Version 1.0
2015:02:20-11:13:06 router pluto[1962]: | exchange type: ISAKMP_XCHG_INFO
2015:02:20-11:13:06 router pluto[1962]: | flags: none
2015:02:20-11:13:06 router pluto[1962]: | message ID: d1 a2 3a 1f
2015:02:20-11:13:06 router pluto[1962]: | length: 56
2015:02:20-11:13:06 router pluto[1962]: | ***parse ISAKMP Notification Payload:
2015:02:20-11:13:06 router pluto[1962]: | next payload type: ISAKMP_NEXT_NONE
2015:02:20-11:13:06 router pluto[1962]: | length: 28
2015:02:20-11:13:06 router pluto[1962]: | DOI: ISAKMP_DOI_IPSEC
2015:02:20-11:13:06 router pluto[1962]: | protocol ID: 1
2015:02:20-11:13:06 router pluto[1962]: | SPI size: 16
2015:02:20-11:13:06 router pluto[1962]: | Notify Message Type: NO_PROPOSAL_CHOSEN
2015:02:20-11:13:06 router pluto[1962]: packet from AzureIP:500: ignoring informational payload, type NO_PROPOSAL_CHOSEN
2015:02:20-11:13:06 router pluto[1962]: | info: f6 e0 cf a9 de 40 43 70 02 e3 ba c6 58 95 95 eb
2015:02:20-11:13:46 router pluto[1962]: |
2015:02:20-11:13:46 router pluto[1962]: | *received 56 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:46 router pluto[1962]: | **parse ISAKMP Message:
2015:02:20-11:13:46 router pluto[1962]: | initiator cookie:
2015:02:20-11:13:46 router pluto[1962]: | f6 e0 cf a9 de 40 43 70
2015:02:20-11:13:46 router pluto[1962]: | responder cookie:
2015:02:20-11:13:46 router pluto[1962]: | 98 57 bd 47 21 10 b6 01
2015:02:20-11:13:46 router pluto[1962]: | next payload type: ISAKMP_NEXT_N
2015:02:20-11:13:46 router pluto[1962]: | ISAKMP version: ISAKMP Version 1.0
2015:02:20-11:13:46 router pluto[1962]: | exchange type: ISAKMP_XCHG_INFO
2015:02:20-11:13:46 router pluto[1962]: | flags: none
2015:02:20-11:13:46 router pluto[1962]: | message ID: 98 34 87 c8
2015:02:20-11:13:46 router pluto[1962]: | length: 56
2015:02:20-11:13:46 router pluto[1962]: | ***parse ISAKMP Notification Payload:
2015:02:20-11:13:46 router pluto[1962]: | next payload type: ISAKMP_NEXT_NONE
2015:02:20-11:13:46 router pluto[1962]: | length: 28
2015:02:20-11:13:46 router pluto[1962]: | DOI: ISAKMP_DOI_IPSEC
2015:02:20-11:13:46 router pluto[1962]: | protocol ID: 1
2015:02:20-11:13:46 router pluto[1962]: | SPI size: 16
2015:02:20-11:13:46 router pluto[1962]: | Notify Message Type: NO_PROPOSAL_CHOSEN
2015:02:20-11:13:46 router pluto[1962]: packet from AzureIP:500: ignoring informational payload, type NO_PROPOSAL_CHOSEN
2015:02:20-11:13:46 router pluto[1962]: | info: f6 e0 cf a9 de 40 43 70 98 57 bd 47 21 10 b6 01
2015:02:20-11:13:51 router pluto[1962]: |
2015:02:20-11:13:51 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:52 router pluto[1962]: |
2015:02:20-11:13:52 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:53 router pluto[1962]: |
2015:02:20-11:13:53 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:57 router pluto[1962]: |
2015:02:20-11:13:57 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
2015:02:20-11:13:58 router pluto[1962]: |
2015:02:20-11:13:58 router pluto[1962]: | *received 616 bytes from AzureIP:500 on eth1.20
Here is a sample config from their script
set security ike proposal azure-proposal authentication-method pre-shared-keys
set security ike proposal azure-proposal authentication-algorithm sha1
set security ike proposal azure-proposal encryption-algorithm aes-256-cbc
set security ike proposal azure-proposal lifetime-seconds 28800
set security ike proposal azure-proposal dh-group group2
set security ike policy azure-policy mode main
set security ike policy azure-policy proposals azure-proposal
set security ike policy azure-policy pre-shared-key ascii-text
set security ike gateway azure-gateway ike-policy azure-policy
set security ike gateway azure-gateway address
set security ike gateway azure-gateway external-interface
# ---------------------------------------------------------------------------------------------------------------------
# IPSec configuration
#
# This section specifies encryption, authentication, and lifetime properties for the Phase 2 negotiation and the quick
# mode security association.
set security ipsec proposal azure-ipsec-proposal protocol esp
set security ipsec proposal azure-ipsec-proposal authentication-algorithm hmac-sha1-96
set security ipsec proposal azure-ipsec-proposal encryption-algorithm aes-256-cbc
set security ipsec proposal azure-ipsec-proposal lifetime-seconds 3600
set security ipsec policy azure-vpn-policy proposals azure-ipsec-proposal
set security ipsec vpn azure-ipsec-vpn ike gateway azure-gateway
set security ipsec vpn azure-ipsec-vpn ike ipsec-policy azure-vpn-policy

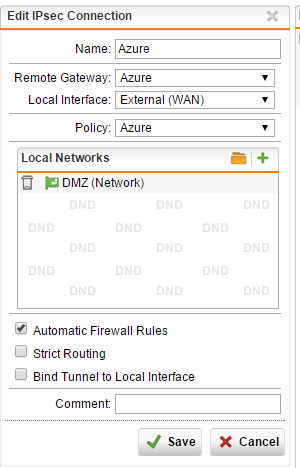

Here are my settings.
Azure 1.PNGAzure 2.PNGAzure 3.PNGAzure 4.PNG
Not sure what else to set.
