vpn site to site

cuongnv

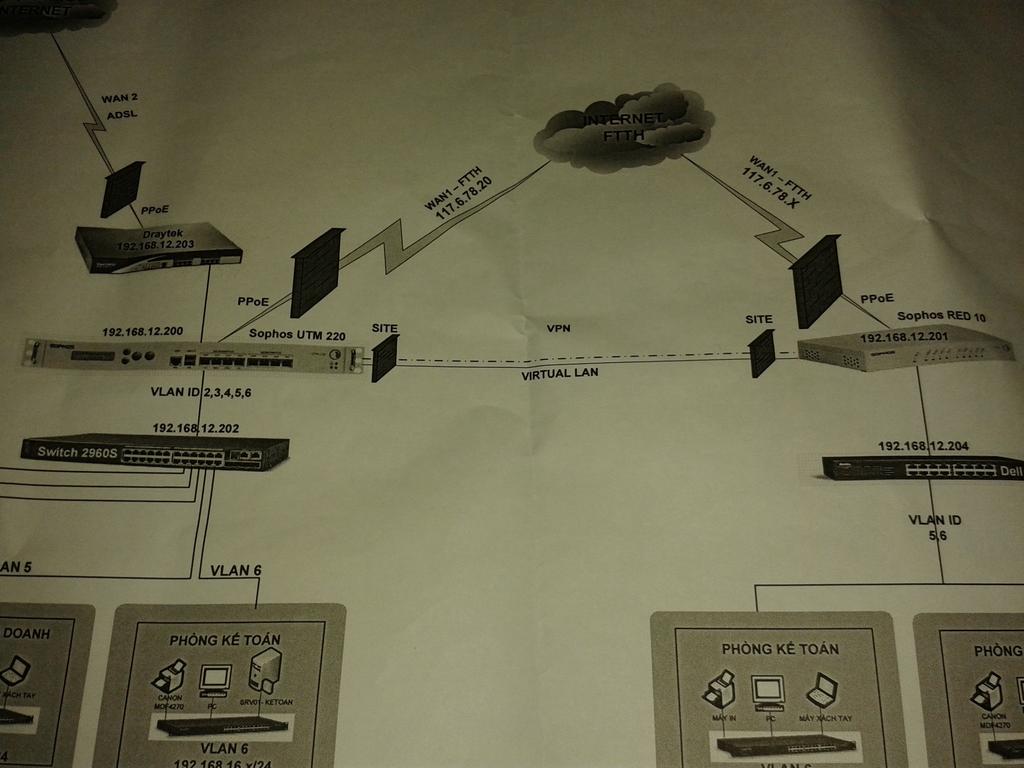

Hello everyone.I have a topology network.I want configuration Sophos UTM 220 & Sophos RED 10 ->>> vpn site to site and Draytek.
note : + Sophos UTM 220 in central office
         + Sophos RED 10 in branch office
Anyone can guide me solution configuration 2 or 3 devices.
thanks.[:D]
p/s: image in attachments or


This thread was automatically locked due to age.
  • 0
    Hello and welcome here.
    I'm afraid I don't really get your question. Perhaps you can add a picture of what you want to achieve. You can add picture with Go Advanced button.

    Managing several Sophos UTMs and Sophos XGs both at work and at some home locations, dedicated to continuously improve IT-security and feeling well helping others with their IT-security challenges.

    Sometimes I post some useful tips on my blog, see blog.pijnappels.eu/category/sophos/ for Sophos related posts.

  • 0
    Hi, Cuong, and I add my welcome to that of apijnappels!

    Do you have [Site A Draytek][Site B UTM][Site C RED] and do you want Site A and Site C to communicate?

    In the UTM, add the Site C network to 'Local networks' in the VPN definition and add the Site A network to 'Split networks' in the RED definition.  In the Draytek, add the Site C network to the equivalent of 'Remote networks' in the VPN definition.  Any luck with that?

    Cheers - Bob

    Sophos UTM Community Moderator
    Sophos Certified Architect - UTM
    Sophos Certified Engineer - XG
    Gold Solution Partner since 2005
    MediaSoft, Inc. USA
  • 0
    @ BAlfson , apijnappels ->>> thanks.
    I have  re-upload image in  attachments.
  • 0
    Since you use same IP-range at UTM and RED site, you should possibly use the RED as a bridge (which is possible).
    I think you only have to configure site-2-site between draytek and UTM and in UTM make the appropriate firewall rules to allow the traffic.

    Do you have more specific questions about this? Did you already try to set it up? If so, where's it failing now?

    Managing several Sophos UTMs and Sophos XGs both at work and at some home locations, dedicated to continuously improve IT-security and feeling well helping others with their IT-security challenges.

    Sometimes I post some useful tips on my blog, see blog.pijnappels.eu/category/sophos/ for Sophos related posts.

  • 0
    thanks everyone.close topic.[:D]
