Hello everyone
I am currently setting up a MS Radius server to be used with our UTM to authenticate external users via their Active Directory accounts (separate domain) for VPN access.
For internal users we use that for L2TP (with another Radius server) and it works well but since the colleague that set that up left the company and did not write down any documentation I don't know how to set everything up.
Currently the users have local accounts on the UTM for PPTP-VPN which I want to replace with the Radius-based auth. Thats why I need to set everything up that has to be set up and then switch from local to radius auth during our next maintenance window.
I would like to make sure everything is configured correctly before I with the authentication method on the UTM.
I used this guide: How to use RADIUS Authentication: Astaro Security Gateway/Sophos UTM
My RADIUS server passes the Server-Test but User-Tests are not working as I expected:
If I select no NAS-Identifier it passes the first test (no matter if the user exists, password is correct...it always passes). The second test fails
If I select a NAS-Identifier (pptp) no test is passed.

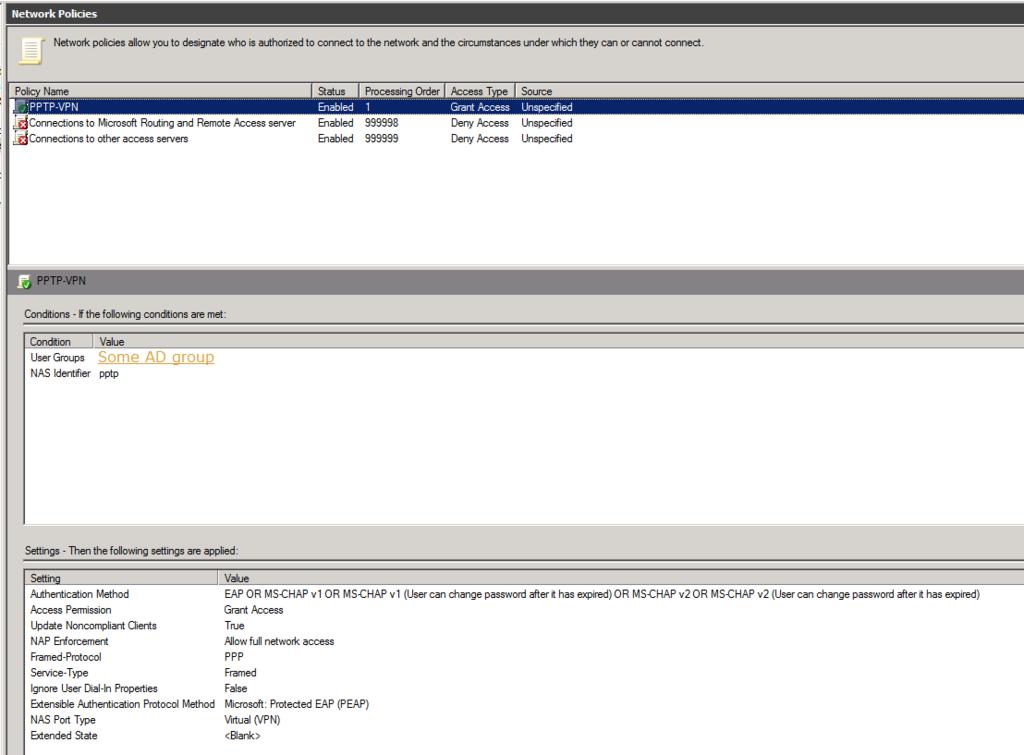

I attached two screenshots of the current RADIUS config
Any idea how I can check if everything is working correctly before I switch the auth-method?
Shouldn't the checks go green? (and red if wrong credentials are supplied?)
best regards
