Question: SSL VPN RA and SSL VPN Site-to-Site Routing

Hello,

First of all: Thank you for this great product! For about 2 months I am using the ASG UTM 9.0 at home and at my parents and very happy with it.

My question concerns routing with VPN SSL, the setup:

Site A
Internal Network A 192.168.0.0
VPN SSL Pool A 192.168.11.0

Site-to-Site VPN SSL connecting Sites A – B, working

Internal Network B 192.168.2.0
VPN SSL Pool B 192.168.12.0

Local devices on site A can access anything on site B and vice versa, rules are set and working.

Remote Access VPN SSL working on site A and site B. All 4 subnets are defined and added to the RA definition on both UTMs.

However, if a my client (Macbook Pro 10.8.3 SSL client Viscosity) is connected to site A, it cannot see the subnets from site B and vice versa.

I tried static routes on the Macbook, I tried static routes on the UTM, didn’t work out. What did I miss?

Best regards,

This thread was automatically locked due to age.

0 BAlfson over 12 years ago

Hi, Ramirez, and welcome to the User BB!

Try this KnowledgeBase article: How to allow remote access users to reach another site via a Site-to-Site Tunnel

Cheers - Bob

Sophos UTM Community Moderator
Sophos Certified Architect - UTM
Sophos Certified Engineer - XG
Gold Solution Partner since 2005

MediaSoft, Inc. USA
Cancel
Vote Up 0 Vote Down

Cancel
0 ramirez77 over 12 years ago in reply to BAlfson

Thank you for the Welcome and the fast reply.

I followed the KB article and changed the site-to-site connection to IPsec. Since I had it tested before was a few clicks to re-enable it. There was 1 change from the article: To add "Internet" to Site1 defs; so I did that.

However, I am getting the same result, its not routed.

Tomorrow I will have more time and delete all definitions and entries for VPN and start over, just to be double sure there is nothing I missed.

PS: Since I prefer in the end SSL over IPSec: Is IPSec a must if I want SSL for RA or can SSL be used for site-to-site and RA at the same time?
Cancel
Vote Up 0 Vote Down

Cancel
0 BAlfson over 12 years ago

You can do this with both connections using SSL. Since this is new, change the 'Protocol' to UDP on the 'Settings' tab to maximize throughput. You will need to re-upload the site-to-site configuration in the other UTM, and re-download the client configs for Remote Access.

Please [Go Advanced] below and show us pictures of the Remote Access and Site-to-Site configurations that you had that didn't work.

Cheers - Bob

Sophos UTM Community Moderator
Sophos Certified Architect - UTM
Sophos Certified Engineer - XG
Gold Solution Partner since 2005

MediaSoft, Inc. USA
Cancel
Vote Up 0 Vote Down

Cancel
0 ramirez77 over 12 years ago in reply to BAlfson

[SUCCESS]

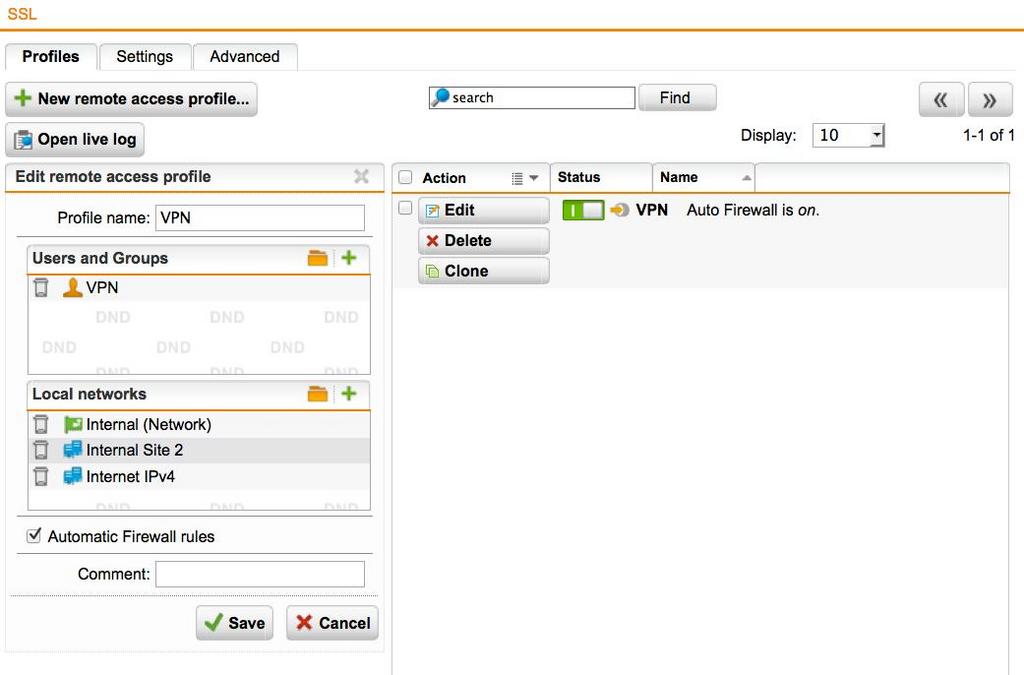

So I went ahead and took the screenshots (attached below).
Then I deleted it all.
Then I re-did it with UDP.
And it works.

Thank you very much.

Best regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 ramirez77 over 12 years ago in reply to ramirez77

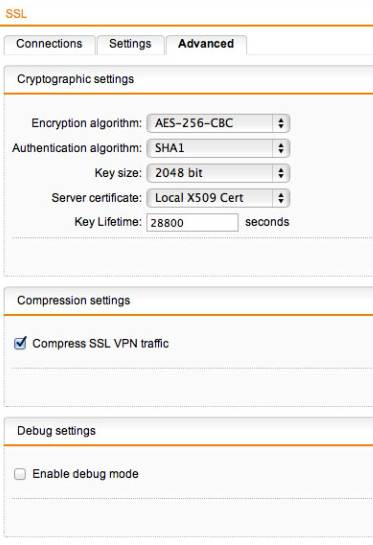

.. and the other screenshots.
