Problem with routing RED -> MainSite -> Site1 and 2

McOdo
Problem:
Clients behind the RED-box in BranchOffice should have full access to both MainSite, Site 1 and Site 2 networks.
They only get route/access to Main Site but it stops there.
Is there a special Routing or something that i need to set up?
All FW’s is Astaro 8.306

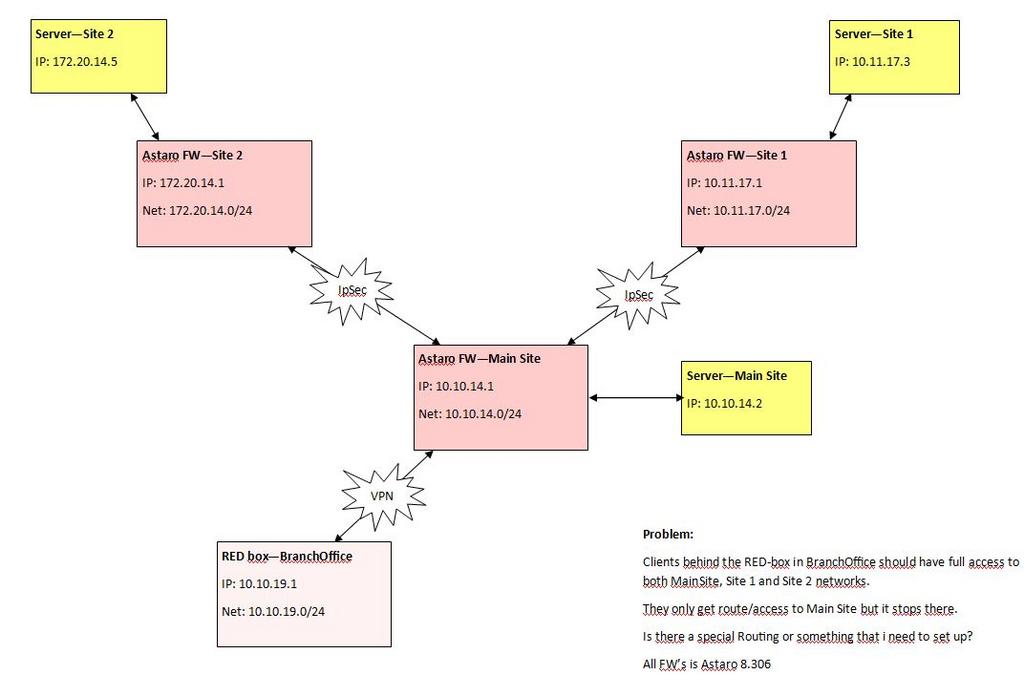

Se Attached Picture


This thread was automatically locked due to age.
Parents
  • 0
    Hi, McOdo, and welcome to the User BB!

    Here's a link that should help you: Hub and Spoke Help.  You'll see that the issue is that the tunnels need to be configured with the networks reached via a second tunnel.

    With the RED, the additional networks/hosts need to be added to 'Split Networks'.

    Cheers - Bob
  • 0 in reply to BAlfson
    That was just the case [:)]
    Added a couple more tunnels and everything works fine.
    And a big thank you to Astaro Support Team for helping me out with this issue yesterday.

    Pål Sølvberg
    GateSoft AS
