Hello there [:)]
We have an Astaro V7 Appliance and one of our new customers has an Bintec VPN Access 5. I wanted to create a site-to-site vpn between them but it failed to connect. I only get from my debug logs (no proposal choosen)... i'm also wondering why i cannot enter a fully qualified username as the vpn-id...
Since it would be better for the understanding i made some screenshots. Hopefully someone could help me because in the near future we get more customers with these bintec gateways...
VPN Access 5 Screenshots:

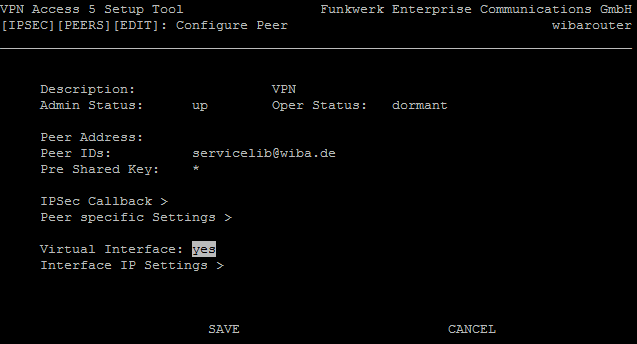

Peer Config:
/cfs-file/__key/communityserver-discussions-components-files/58/VPN-Peer-Config.png

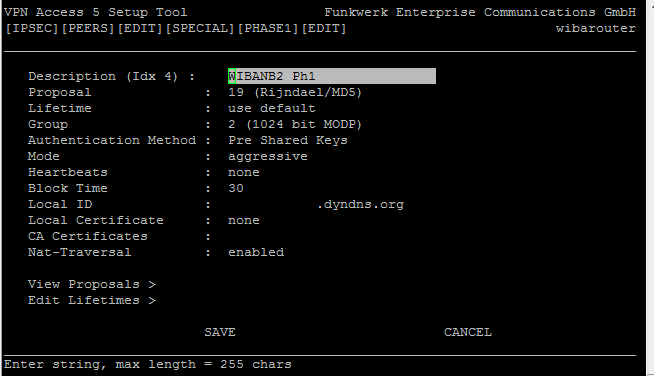

Phase 1
/cfs-file/__key/communityserver-discussions-components-files/58/VPN-Phase-1.png

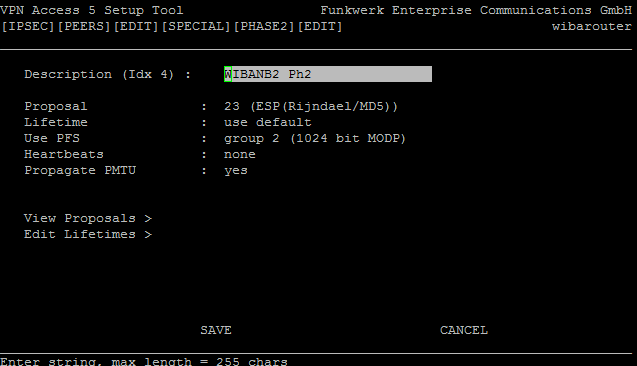

Phase 2
/cfs-file/__key/communityserver-discussions-components-files/58/VPN-Phase-2.png
Astaro V7 Screenshots:

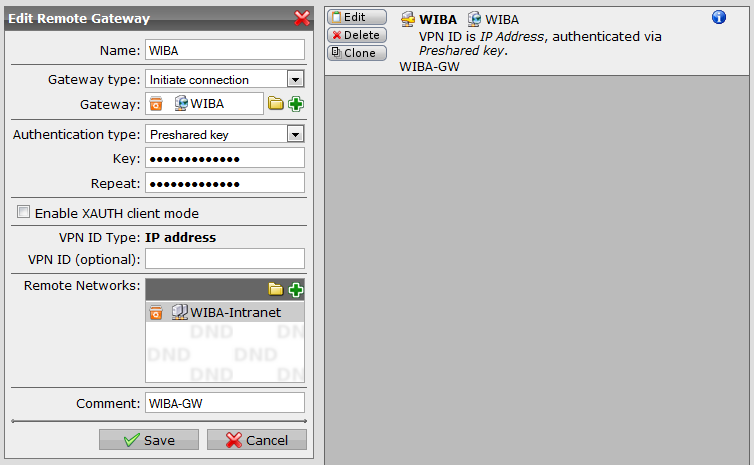

Gateway config:
/cfs-file/__key/communityserver-discussions-components-files/58/Gateway-WIBA.png

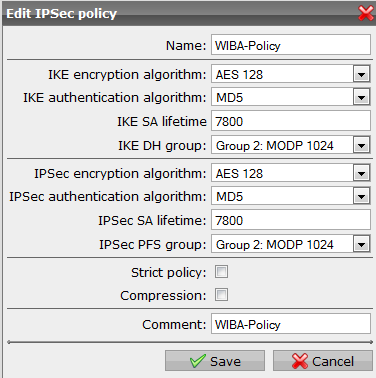

IPsec Policy
/cfs-file/__key/communityserver-discussions-components-files/58/IPsec-Policy-Wiba.png
IPsec Settings
http://img823.imageshack.us/img823/1781/ipsecwiba.png
Our network is: 192.168.10.0/24
The customers network is: 192.168.12.0/24
NAT is enabled on the Router. The Virtual Interface which is shown at the Bintec-Screenshot has the IP 192.168.13.17/32
Thank you in advance for reading it and for your answers!
:Edit: Forget to mention that i could open the VPN to our customer with the Bintec-IPSec Client.
Regards
Seelbreaker
