Why 2 Nat is necessary ?

Question

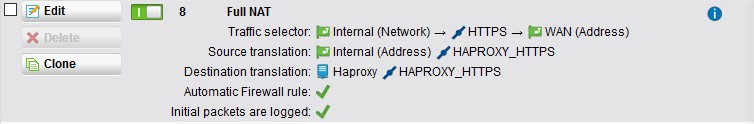

Hello, there are some things i do not understand I explain to you, I have a box that i configured in bridge and who is therefore concerned only with the part Modem. I have behind my Router: Sophos UTM 9 Home I created the port opening rules (NAT) like this: NAT: All HTTPS connections (443) entering the WAN interface are redirected to a Reverse Proxy (haproxy) on port 5443 Only, I noticed that it only worked from outside LAN .. I had no access to my sites hosted by me on LAN (https//example.com) I had to create Full Nat type rules for this to work, changing the source: I really do not understand why it is necessary to make 2 types of NAT .. If you have any solutions I'm interested :) thank you very much

 Ps : Sorry for my english

sachingurung · Answer

Hi and Welcome to Sophos Community,
 This issue occurs as a result of the way NAT translation works on the UTM.
 When the client makes a request destined for the external address of an internal server, the UTM changes the destination address of the request and then forwards it on to the server's internal address. When the server receives the request, the source is the client's internal address, which it responds to directly. In most network configurations, the response does not pass back through the UTM (it goes directly to the client, through the switch). This causes the interruption.
 If UTM is used as a DNS forwarder then, you can configure a static DNS entry to map the request to the internal server instead of sending it on the WAN. To do this Goto, Network Services | DNS | Static Entries. Create a new network definition and choose the type as Host. Under IPv4 Address, enter the internal address of your server. Under Hostname, enter the FQDN of your server's external address, eg. www.abc.com .
 Thanks
