Unknown Traffic (high bandwidth usage every hour for 2 minutes)

Hi folks,

i have got some problem with one SG 105 (9.310-11).
Over weeks there is every hour (24/7) (inbound-) traffic for about 2 minutes.

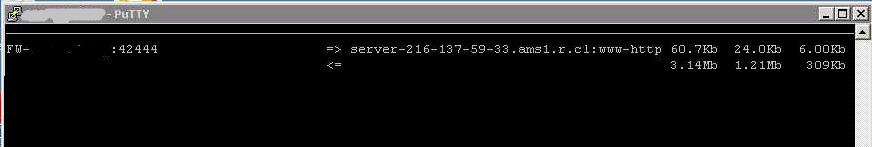

I used fitop for logging, but i could'nt see the internal device that do this request. On eth1 (external WAN) i see this:
The Firewall starts a request from Port 4244 to destination 216.137.59.33:80 (Amazon Cloudfront Server) and then the inbound traffic starts with ~3 Mb/s for 2 minutes. It is not every time the same Cloudfront-Server-IP, sometimes it was "server-216-137-63-35.lhr3.r.cloudfront.net"

I started for every other SG-interface a iftop-window to detect the requester, but with no success: no ip has a such high bandwidth usage, when the inbound traffic is high.
I cant see anything in firewall logs (queried for: ip, port).

Questions: What could it be? Does the FW drop the packets? How do i setup the firewall-logs to make that traffic visible there?

Thanks in advance.

Regards,
Christian

This thread was automatically locked due to age.

0 C.Schulze over 10 years ago

Hi everyone,

it seems to be Sophos Pattern download cause this inbound traffic.
As i could verify via system log, there are entries for these cloudfront server.

2015:09:10-01:32:15 FW-GH-Berlin syslog-ng[22264]: Configuration reload request received, reloading configuration;
2015:09:10-01:32:15 FW-GH-Berlin dns-resolver[4165]: Changeset 633 empty!
2015:09:10-01:32:15 FW-GH-Berlin dns-resolver[4165]: Adding REF_DefaultSophosUTMSupportHost
2015:09:10-01:32:15 FW-GH-Berlin dns-resolver[4165]: Adding REF_NetDns****
2015:09:10-01:32:15 FW-GH-Berlin dns-resolver[4165]: Adding REF_NetDnsServer2161
2015:09:10-01:32:16 FW-GH-Berlin dns-resolver[4165]: Adding REF_NetDnsSophoLivec
2015:09:10-01:32:16 FW-GH-Berlin dns-resolver[4165]: Adding REF_NtpPool
2015:09:10-01:32:16 FW-GH-Berlin dns-resolver[4165]: No change to REF_NetDnsServer2161 :: server-216-137-63-35.lhr3.r.cloudfront.net

Is it possible to make a multipathrule to get patterns through the second internet interface? There exists a multipathrule for "websurfing" through the second interface, but patterns comes via first interface.

Thanks in advance.

Regards,
Christian
Cancel
Vote Up 0 Vote Down

Cancel
0 BAlfson over 10 years ago

I haven't tried this, so it's just a WAG. Try a rule for traffic like 'External (Address) -> HTTPS -> Internet' and 'localhost -> HTTPS -> Internet'. Does either work?

You said you thought the traffic was on port 4244, but that's not familiar to me with the UTM. Have you confirmed on the 'Bandwidth Usage' tab of 'Network Usage' in Reporting?

Cheers - Bob
Cancel
Vote Up 0 Vote Down

Cancel
0 C.Schulze over 9 years ago in reply to BAlfson

Hi,

that multipathrule doesn't work.
I saw in systemlogs two different Server, where sophos recieves his patterns from:
FW-External WAN:42444 > server-216-137-63-35.lhr3.r.cloudfront.net:80
FW-External WAN:34974 > server-54-192-14-226.ams1.r.cloudfront.net:80

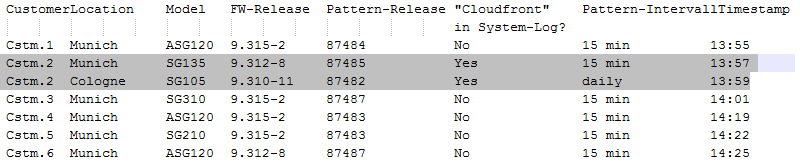

On 5 other SGs / ASGs from other custmers there is no "Cloudfront" entry in system-Logs. And they don't have peakproblems while downloading patterns.
As you can see, Customer 2 has as the only one, this systemlog-entry and it seems to be no modell- oder FW-release-"Thing":
