I just migrated to the Home version of Astaro. I am replacing my Sonicwall TZ-170w, however I would like to keep it on as a WAP. I have the Astaro configured on x.x.1.1 and the Sonicwall on x.x.1.3.
The Sonicwall uses a different subnet for wireless so it is x.x.2.1
I have enabled a route on the Astaro for a gateway route pointing to the x.x.2.0 network at x.x.1.3.
On the Sonicwall, I have created a default route of 0.0.0.0 with a gateway of x.x.1.1 on the Lan interface.
I am able to ping between the Lan and the wireless devices (ex: 192.168.1.5 can ping 192.168.2.205 and vice versa), but I am unable to ping out to the internet from the wireless devices only (ex: 192.168.2.205 can ping 192.168.1.1, but not 4.2.2.2). The sonicwall itself is able to ping the internet.

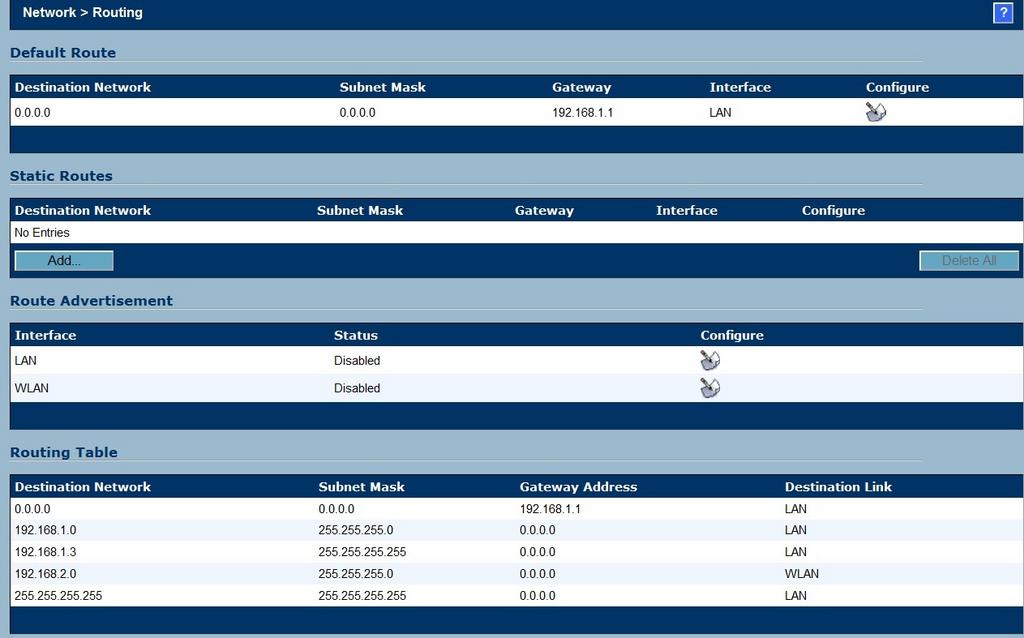

I have attached a picture of my routes on the Sonicwall for those who are not familiar with them.
I believe this to be something I missed in the routing, but I am unsure. Could someone please give me some hints as to where I should be looking.
Thank you,
Edit: A little more info. My internal DNS server is 192.168.1.100. I also use 4.2.2.2 as a backup. I am attaching log files from both the Astaro and The Sonicwall when I try to ping google.com
Edit 2: I also added Packet filters. At first, I tried cloning the existing packet filters for DNS and web surfing. Next I tried creating packet filters for any>any>wireless and wireless>any>any. Still no luck so I remove them and left the first ones I added.
Edit 3: Added diagram of network for clarity
