VLAN TAG on a WAN Interface

MarcoTeixeira

Hi.



I will replace a Draytek 2960 for a UTM SG 125. In the Draytek, the Wan Interface has VLAN : enabled and VLAN ID : 20 (it connects to the ISP's fiber modem).  How can I configure it on the UTM ?



This thread was automatically locked due to age.
  • 0

    Hey Marco.

    Is this a PPPoE connection? If so, try ticking the "VDSL" checkbox under "Hardware" when creating the interface. This will enable a new field "VLAN Tag" under "Advanced", there you can set the VLAN ID you need.

    Regards,

    Giovani

  • 0

    Hi,

    you may use a Interface from type "Ethernet VLAN" or "DSL(PPPOE)" with VDSL checked.




    Dirk

    Systema Gesellschaft für angewandte Datentechnik mbH  // Sophos Platinum Partner
    Sophos Solution Partner since 2003
    If a post solves your question, click the 'Verify Answer' link at this post.

  • 0 in reply to giomoda

    Hi Giovani



    Ty for your answer



    I don´t know if it's a ppoe connection. I only know that the Draytek connects to a fiber modem.

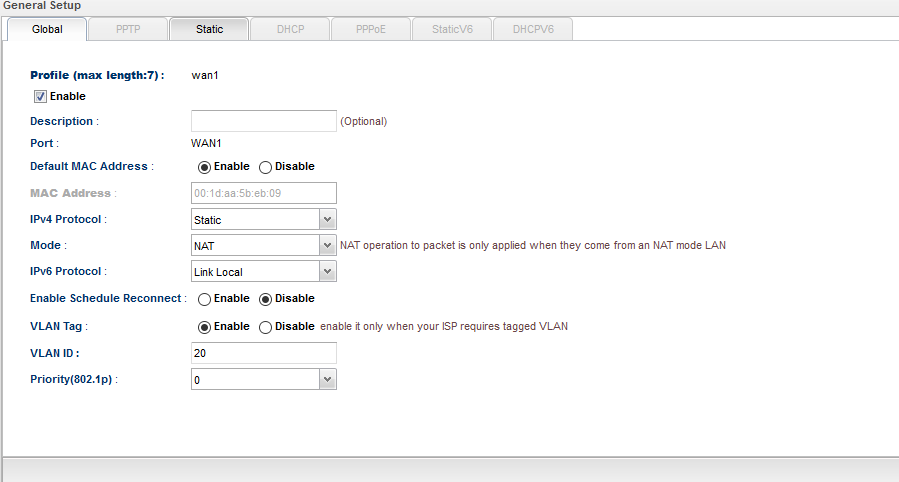

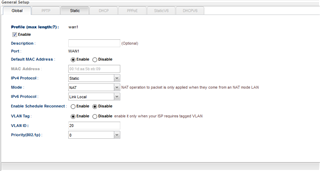

    The Wan interface has  the config i send:

  • 0 in reply to MarcoTeixeira

    Per your screenshot you are using a static IP address, no PPPoE involved. In that case, as dirkkotte pointed out, you would set your WAN interface as type "Ethernet VLAN", bind it to a hardware port (eth1, eth2, etc) and set 20 at "VLAN Tag". Other than that it's just IP addresses, gateways and netmasks as usual.

    Regards,

    Giovani
