additional nic for Cisco addition?

chugger93
Hi,

I currently am still running version 8, but would like to introduce a Cisco router in my network. I have an initial idea in drawing form below. I basically wanna have a Cisco lab segmented from my home network. I want the Cisco router behind the astaro. Would I be needing another NIC for this design??

Can anyone recommend a different setup?




This thread was automatically locked due to age.
Parents Reply Children
  • 0 in reply to apijnappels
    Ok, so this is what I'm going to do instead.  I'm gonna use just the Cisco 1841 as a host on the procurve so that the cisco lab hosts can use it as their gateway. The home network won't even use the Cisco router, just the Astaro UTM.

    Cisco Lab Hosts --> Cisco Router --> Procurve switch --> UTM -- Internet

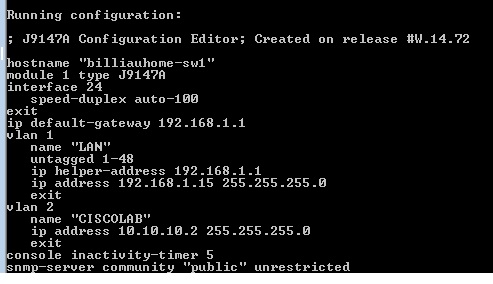

    seem doable?   Did I setup my return routes in Astaro correctly?
