Certain S2S traffic through fix interface

IngoPohlschneider
Hello
we got some WAN-boosters in some branch offices. The booster at our headquarters is limited in its "optimized throughput"

Therefore I'd like to make sure that only traffic coming from a network that is optimized is passed to the booster.
I'd like to do that by sending the traffic from the S2S tunnels that have a booster through one of the local interfaces, where I would then connect the booster mainunit.

All other traffic (from other VPN, the Internet etc.) should leave over another LAN interface.

How do I do that? via a policy route?

The booster is an inline-device. It will be attached between the interface and the L3-LAN switch

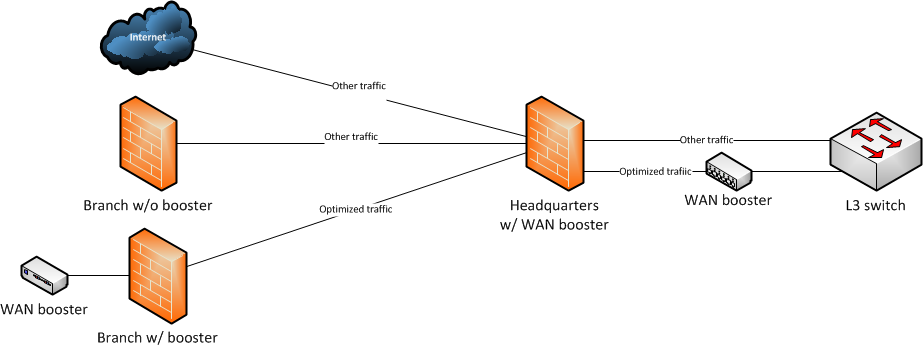

See attached schematic

Best regards


This thread was automatically locked due to age.
Parents
  • 0
    Hello everyone,
    I can tell you that it works as a charm [[:)]]

    I set up a policy route with User-Network (my L2TP-connection) -> Any -> Any -> GATEWAY .

    Worked right away.

    Of course one has to make sure that the return traffic is also routed via that interface from the core switch.

    Thanks for the help guys/girls [[:)]]

    *SOLVED*
Reply
  • 0
    Hello everyone,
    I can tell you that it works as a charm [[:)]]

    I set up a policy route with User-Network (my L2TP-connection) -> Any -> Any -> GATEWAY .

    Worked right away.

    Of course one has to make sure that the return traffic is also routed via that interface from the core switch.

    Thanks for the help guys/girls [[:)]]

    *SOLVED*
