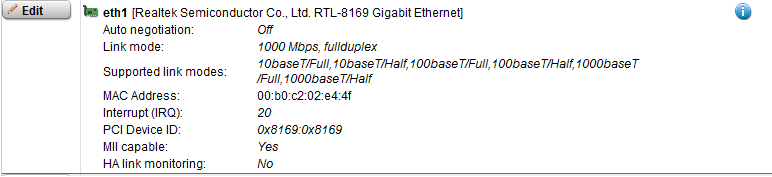

I have my internet NIC hard set as 1000/Full as per pic attached but when checking with "mii-diag" command the result is different. Is this normal?
*******:/root # mii-diag eth1
Basic registers of MII PHY #32: 1000 796d 001c c913 0de1 cde1 000d 2001.
The autonegotiated capability is 01e0.
The autonegotiated media type is 100baseTx-FD.
Basic mode control register 0x1000: Auto-negotiation enabled.
You have link beat, and everything is working OK.
Your link partner advertised cde1: Flow-control 100baseTx-FD 100baseTx 10baseT-FD 10baseT, w/ 802.3X flow control.
End of basic transceiver information.
*** :/root # ethtool eth1
Settings for eth1:
Supported ports: [ TP MII ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Half 1000baseT/Full
Supports auto-negotiation: Yes
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Half 1000baseT/Full
Advertised auto-negotiation: Yes
Speed: 1000Mb/s
Duplex: Full
Port: MII
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
Supports Wake-on: pumbg
Wake-on: g
Current message level: 0x00000033 (51)
Link detected: yes
The internal NIC is connected to a netgear switch which has GIG interfaces as well. Is this normal? "mii-diag"says that the media is 100baseTx-FD but "ethtools" says 1000/Full
