ASG V8 - IPV6 Default Gateway not working

Hi all,

I have just installed an ASG v8 on my hosted ESXi. I have a native IPV6 Subnet and assigned the external eth1 interface an IPV6 address from that subnet. I also configured the corresponding (assigned) IPV6 default gateway (2a01:4f8:100:1260::1). After that I tried to ping the Default Gateway which worked. But pinging anything beyond the Default Gateway is not working. From the shell I entered "ip -6 route" to see the routing table, but the Default Gateway was not in the list ...

Also from the Astaro WebGUI, I went to "Support-Advanced-Routing Tables", the default gateway was not listed...

Do I miss something ?

kind rgds
ROland


This thread was automatically locked due to age.
Parents
  • As I wrote I am able to ping the default gateway so this is not the issue.
  • Hi,
    you will need a tunnel broker to get beyond your ASG unless your ISP is supporting IPv6.
    You should have the default IPv6 default gateway ticked on your external interface.
    Please post a screenshot of your internal interface setup.

    Regards

    Ian M
  • As already said I'm using native IPv6 and of course my provider supports IPv6 (Hetzner). So no need for a tunnel broker.

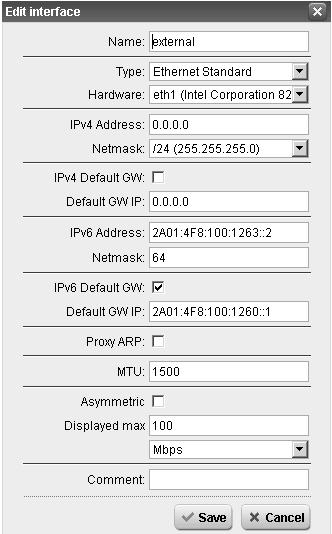

    Attached you'll see the screenshot of external (internet) facing interface config (eth1).


    Hmm after another reboot I see the default gateway now in the routing table... But I still cannot ping anything beyond the default gateway.


    rgds
    Roland
  • Hi,
    easy bits first. You won't get a response from an IPv4 site without an IPv4 address in your external interface.

    There would appear to be another network device between you and the gateway unless your ISP provides 100m symmetrical connection.

    Please describe how your external interface gets to the internet.

    I suspect that the issue is with your ISP, in that while it supports IPv6 it does not have too many sites with IPv6 address available.

    You need to find some iPv6 addressed sites from DNS.

    Try ipv6.google.com

    Visit the sixxs site and have a look at some the IPv6 stuff there and try to connect to that.

    Ian M
  • Ian, thanks for clarification. I am directly connected to a 100Mb/s link within the datacenter of my hosting provider. I am able to ping an IPv6 host now after slowly starting to understand the IPv6 world ;-)

    I have added an IPv4 address (the last one I had from my assigned IPv4 subnet) to the external interface, and now I can also ping IPv4 addresses.

    So far the setup is ok and nothing wrong with ASG V8, the problem was behind the keyboard ...

    thanks for all your kind support
    rgds Roland
  • I understand. I have quite a long thread in the v8b forum while learning how the ASG treats IPv6. Still have a lot to learn.

    I have a tunnel which the ASG automatically assigns as the IPv6 gateway and I run dual stacks on my network for the devices that can handle it. I have a registered IPv6 address range, now waiting on the ISP to get there act together.

    Regards

    Ian M
