Full Transparent Mode

red_diablo2004 over 13 years ago

Hi all,

Hope all is well.

I'd like to deploy Sophos UTM in Full Transparent Mode, So what features will be enabled and what features will disabled?

Thanks in advance.

This thread was automatically locked due to age.

0 BarryG over 13 years ago

Hi, which license / subscriptions are you planning on getting?

iirc, the PacketFilter, IPS and HTTP/content filter can work in transparent mode.
I'm not sure about the SMTP features.

Barry
Cancel
Vote Up 0 Vote Down

Cancel
0 red_diablo2004 over 13 years ago

Full Gurad
Cancel
Vote Up 0 Vote Down

Cancel
0 red_diablo2004 over 13 years ago

What about VPN , QoS , and Internet Load Balancing?
Cancel
Vote Up 0 Vote Down

Cancel
0 BarryG over 13 years ago

VPN would probably work, but I'm not certain.

QOS should work.

I don't think you can have multiple internet connections in full transparent mode.
If Astaro is going to be managing multiple links, then I'm guessing you don't have a router, so why do you need transparent mode?
FYI, there are other ways to use public addresses internally, if that's what you're looking for.

Barry
Cancel
Vote Up 0 Vote Down

Cancel
0 Scott_Klassen over 13 years ago

VPNs can work as well.

__________________
ACE v8/SCA v9.3

...still have a v5 install disk in a box somewhere.

http://xkcd.com
http://www.tedgoff.com/mb
http://www.projectcartoon.com/cartoon/1
Cancel
Vote Up 0 Vote Down

Cancel
0 red_diablo2004 over 13 years ago in reply to Scott_Klassen

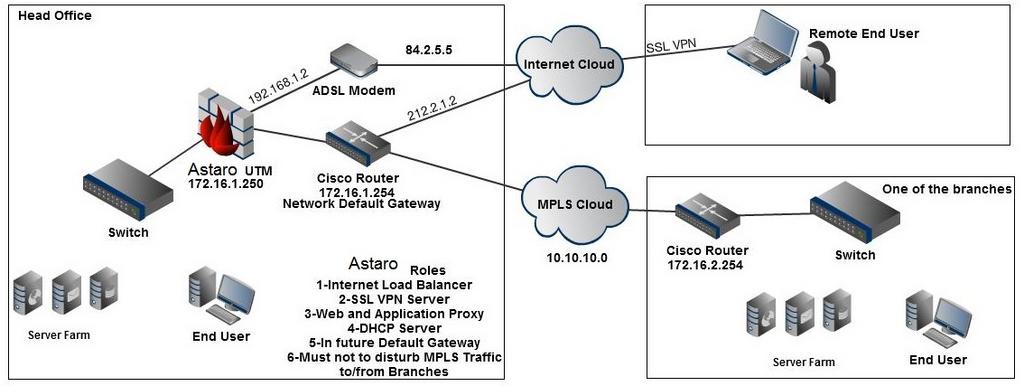

What I need to do is in this diagram.

Hope you can help in it.
Cancel
Vote Up 0 Vote Down

Cancel
0 BarryG over 13 years ago

You could do one of the following:

1. put the DSL modem on the Cisco router, if possible
OR
2. change the internal IP of the Cisco router to a different network, and change the External IP of the Astaro to match.
Then, continue to use your current IPs inside the Astaro firewall.

Barry
