IPSec S2S UTM135 <-> Cisco ASA Aufbau nur von ASA möglich

Hallo Alle zusammen,

Ich habe einen IPSec Tunnel zu konfigurieren.

Aufbau

UTM <-> Fritzbox 7390 (static IP) <-> ASA (static IP) <-> interne Netze

Ich habe die Konfig anhand der FAQ V7 Cisco gemacht und habe auch nach einigen Anlaufproblemen eine Verbindung aufbauen können.

Allerdings kann ich den Tunnel nur von der ASA-Seite her aufbauen. Wenn der Tunnel einmal aufgebaut ist, funktioniert alles hervorragend.

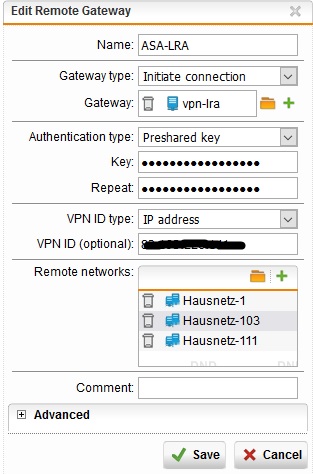

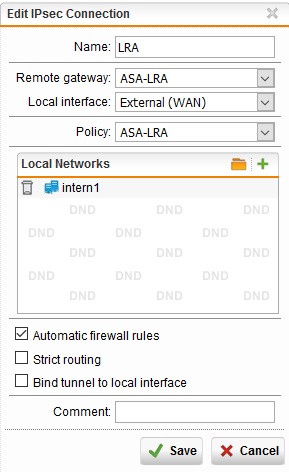

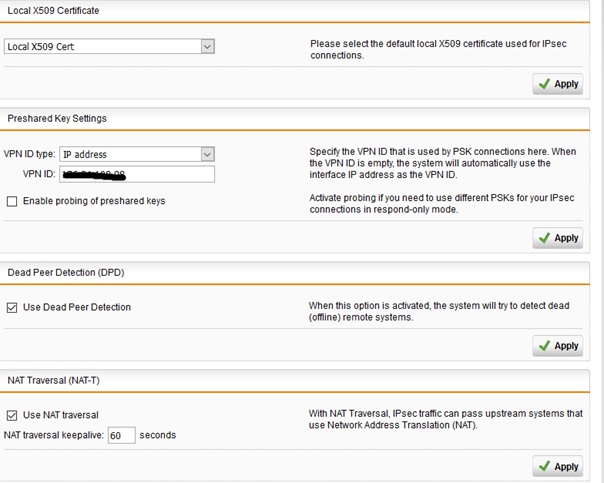

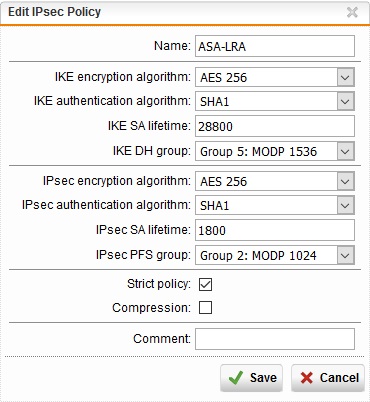

Hier noch ein paar Bilder

Und etwas Log-file

2016:08:23-09:00:21 asg12 ipsec_starter[20471]: Starting strongSwan 4.4.1git20100610 IPsec [starter]...
2016:08:23-09:00:21 asg12 pluto[20483]: Starting IKEv1 pluto daemon (strongSwan 4.4.1git20100610) THREADS VENDORID CISCO_QUIRKS
2016:08:23-09:00:21 asg12 pluto[20483]: loaded plugins: curl ldap aes des blowfish serpent twofish sha1 sha2 md5 random x509 pubkey pkcs1 pgp dnskey pem sqlite hmac gmp xauth attr attr-sql resolve
2016:08:23-09:00:21 asg12 pluto[20483]: including NAT-Traversal patch (Version 0.6c)
2016:08:23-09:00:21 asg12 pluto[20483]: Using Linux 2.6 IPsec interface code
2016:08:23-09:00:21 asg12 ipsec_starter[20477]: pluto (20483) started after 20 ms
2016:08:23-09:00:21 asg12 pluto[20483]: loading ca certificates from '/etc/ipsec.d/cacerts'
2016:08:23-09:00:21 asg12 pluto[20483]: loaded ca certificate from '/etc/ipsec.d/cacerts/VPN Signing CA.pem'
2016:08:23-09:00:21 asg12 pluto[20483]: loading aa certificates from '/etc/ipsec.d/aacerts'
2016:08:23-09:00:21 asg12 pluto[20483]: loading ocsp certificates from '/etc/ipsec.d/ocspcerts'
2016:08:23-09:00:21 asg12 pluto[20483]: Changing to directory '/etc/ipsec.d/crls'
2016:08:23-09:00:21 asg12 pluto[20483]: loading attribute certificates from '/etc/ipsec.d/acerts'
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface wlan0/wlan0 172.16.28.1:500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface wlan0/wlan0 172.16.28.1:4500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface eth4/eth4 172.16.20.1:500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface eth4/eth4 172.16.20.1:4500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface eth1/eth1 192.168.10.66:500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface eth1/eth1 192.168.10.66:4500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface eth0/eth0 10.228.187.185:500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface eth0/eth0 10.228.187.185:4500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface lo/lo 127.0.0.1:500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface lo/lo 127.0.0.1:4500
2016:08:23-09:00:21 asg12 pluto[20483]: adding interface lo/lo ::1:500
2016:08:23-09:00:21 asg12 pluto[20483]: loading secrets from "/etc/ipsec.secrets"
2016:08:23-09:00:21 asg12 pluto[20483]: loaded PSK secret for x.x.x.x(fritz) x.x.x.x ASA
2016:08:23-09:00:21 asg12 pluto[20483]: listening for IKE messages
2016:08:23-09:00:21 asg12 pluto[20483]: added connection description "S_LRA"
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: initiating Main Mode
2016:08:23-09:00:21 asg12 pluto[20483]: added connection description "S_LRA"
2016:08:23-09:00:21 asg12 pluto[20483]: added connection description "S_LRA"
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: received Vendor ID payload [RFC 3947]
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: ignoring Vendor ID payload [FRAGMENTATION c0000000]
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: enabling possible NAT-traversal with method 3
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: ignoring Vendor ID payload [Cisco-Unity]
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: received Vendor ID payload [XAUTH]
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: ignoring Vendor ID payload [ec3755d03316d64a0ee3fa31a870370f]
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: ignoring Vendor ID payload [Cisco VPN 3000 Series]
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: NAT-Traversal: Result using RFC 3947: i am NATed
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: received Vendor ID payload [Dead Peer Detection]
2016:08:23-09:00:21 asg12 pluto[20483]: | protocol/port in Phase 1 ID Payload is 17/0. accepted with port_floating NAT-T
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: Peer ID is ID_IPV4_ADDR: 'x.x.x.x ASA'
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: Dead Peer Detection (RFC 3706) enabled
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: ISAKMP SA established
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #2: initiating Quick Mode PSK+ENCRYPT+TUNNEL+PFS+UP {using isakmp#1}
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #3: initiating Quick Mode PSK+ENCRYPT+TUNNEL+PFS+UP {using isakmp#1}
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #4: initiating Quick Mode PSK+ENCRYPT+TUNNEL+PFS+UP {using isakmp#1}
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: ignoring informational payload, type NO_PROPOSAL_CHOSEN
2016:08:23-09:00:21 asg12 pluto[20483]: "S_LRA" #1: received Delete SA payload: deleting ISAKMP State #1

This thread was automatically locked due to age.

BAlfson over 9 years ago

(Sorry, my German-speaking brain isn't creating thoughts at the moment. [:(])

My first guess would be that the 'VPN ID' in 'Preshared key settings' is not the static public IP on the Fritzbox.

MfG - Bob (Bitte auf Deutsch weiterhin.)

Sophos UTM Community Moderator
Sophos Certified Architect - UTM
Sophos Certified Engineer - XG
Gold Solution Partner since 2005

MediaSoft, Inc. USA
Cancel
Vote Up 0 Vote Down

Cancel
bpman over 9 years ago in reply to BAlfson

Hallo Bob,

in den Advanced Options / Preshared Key Settings ist die öffentliche Adresse der Fritzbox eingetragen.

In der Remote Gateway Konfiguration ist bei VPN ID die öffentliche Adress der ASA eingetragen.

Funktioniert auch ohne diesen Eintrag aber sicher ist sicher [:)]

Kann es sein das die UTM die Reverseauflösung beim Aufbau der Verbindung prüft? Da gibt es noch einen Fehler den ich aber gerade mit dem ISP kläre.

Ein Ping hinter der ASA in Richtung UTM baut sofort den Tunnel auf und ich kann auf beiden Seiten arbeiten.

Versuche ich aber den Tunnel von der UTM aus aufzubauen passiert nichts.

Gruß Bernd
Cancel
Vote Up 0 Vote Down

Cancel
bpman over 9 years ago in reply to bpman

Hier noch ein Auszug aus dem Log mit Debug-Option

Dabei stören mich die rot markierten Zeilen.

------------------------------------

2016:08:25-13:45:49 asg12 pluto[588]: | *received 92 bytes from x.x.x.xASA:4500 on eth1
2016:08:25-13:45:49 asg12 pluto[588]: | **parse ISAKMP Message:
2016:08:25-13:45:49 asg12 pluto[588]: | initiator cookie:
2016:08:25-13:45:49 asg12 pluto[588]: | a6 7b 13 2d 9d 40 a3 b7
2016:08:25-13:45:49 asg12 pluto[588]: | responder cookie:
2016:08:25-13:45:49 asg12 pluto[588]: | b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | next payload type: ISAKMP_NEXT_HASH
2016:08:25-13:45:49 asg12 pluto[588]: | ISAKMP version: ISAKMP Version 1.0
2016:08:25-13:45:49 asg12 pluto[588]: | exchange type: ISAKMP_XCHG_INFO
2016:08:25-13:45:49 asg12 pluto[588]: | flags: ISAKMP_FLAG_ENCRYPTION
2016:08:25-13:45:49 asg12 pluto[588]: | message ID: 57 a8 9f bd
2016:08:25-13:45:49 asg12 pluto[588]: | length: 92
2016:08:25-13:45:49 asg12 pluto[588]: | ICOOKIE: a6 7b 13 2d 9d 40 a3 b7
2016:08:25-13:45:49 asg12 pluto[588]: | RCOOKIE: b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | peer: 52 c1 e2 8d
2016:08:25-13:45:49 asg12 pluto[588]: | state hash entry 29
2016:08:25-13:45:49 asg12 pluto[588]: | state object #1 found, in STATE_MAIN_I4
2016:08:25-13:45:49 asg12 pluto[588]: | ***parse ISAKMP Hash Payload:
2016:08:25-13:45:49 asg12 pluto[588]: | next payload type: ISAKMP_NEXT_D
2016:08:25-13:45:49 asg12 pluto[588]: | length: 24
2016:08:25-13:45:49 asg12 pluto[588]: | ***parse ISAKMP Delete Payload:
2016:08:25-13:45:49 asg12 pluto[588]: | next payload type: ISAKMP_NEXT_NONE
2016:08:25-13:45:49 asg12 pluto[588]: | length: 28
2016:08:25-13:45:49 asg12 pluto[588]: | DOI: ISAKMP_DOI_IPSEC
2016:08:25-13:45:49 asg12 pluto[588]: | protocol ID: 1
2016:08:25-13:45:49 asg12 pluto[588]: | SPI size: 16
2016:08:25-13:45:49 asg12 pluto[588]: | number of SPIs: 1
2016:08:25-13:45:49 asg12 pluto[588]: | removing 12 bytes of padding
2016:08:25-13:45:49 asg12 pluto[588]: | ICOOKIE: a6 7b 13 2d 9d 40 a3 b7
2016:08:25-13:45:49 asg12 pluto[588]: | RCOOKIE: b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | peer: 52 c1 e2 8d
2016:08:25-13:45:49 asg12 pluto[588]: | state hash entry 29
2016:08:25-13:45:49 asg12 pluto[588]: | state object #1 found, in STATE_MAIN_I4
2016:08:25-13:45:49 asg12 pluto[588]: "S_LRA" #1: received Delete SA payload: deleting ISAKMP State #1
2016:08:25-13:45:49 asg12 pluto[588]: | deleting unestablished phase2 state #4
2016:08:25-13:45:49 asg12 pluto[588]: | ICOOKIE: a6 7b 13 2d 9d 40 a3 b7
2016:08:25-13:45:49 asg12 pluto[588]: | RCOOKIE: b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | peer: 52 c1 e2 8d
2016:08:25-13:45:49 asg12 pluto[588]: | state hash entry 29
2016:08:25-13:45:49 asg12 pluto[588]: | deleting unestablished phase2 state #3
2016:08:25-13:45:49 asg12 pluto[588]: | ICOOKIE: a6 7b 13 2d 9d 40 a3 b7
2016:08:25-13:45:49 asg12 pluto[588]: | RCOOKIE: b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | peer: 52 c1 e2 8d
2016:08:25-13:45:49 asg12 pluto[588]: | state hash entry 29
2016:08:25-13:45:49 asg12 pluto[588]: | deleting unestablished phase2 state #2
2016:08:25-13:45:49 asg12 pluto[588]: | ICOOKIE: a6 7b 13 2d 9d 40 a3 b7
2016:08:25-13:45:49 asg12 pluto[588]: | RCOOKIE: b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | peer: 52 c1 e2 8d
2016:08:25-13:45:49 asg12 pluto[588]: | state hash entry 29
2016:08:25-13:45:49 asg12 pluto[588]: | del: a6 7b 13 2d 9d 40 a3 b7 b2 e3 90 89 05 84 ee 82
2016:08:25-13:45:49 asg12 pluto[588]: | next event EVENT_NAT_T_KEEPALIVE in 60 seconds

------------------------------------

Gruß Bernd
