Von aussen erreiche ich leider das User Portal nicht.
Ich habe dafür folgende DNAT regel erstellt:
NAT:
Traffic selector: Any → HTTPS → External (WAN) (Address)
Destination translation: External (WAN) (Address) HTTPS
Und die passende Firewall Regel:
Any → HTTPS External → (WAN) (Address)
Passt das So? oder nicht? Wo könnte der Fehler liegen?
Mein zweites Problem ist:
L2TP IPSEC mit Radius habe ich leider nicht hinbekommen:
Ich habe mir dazu folgendes angeschaut:
1. Open NPS MMC on 2008 R2 RADIUS server
2. Browse to Connection Request Policies
2.1. Server Manager/Roles/Network Policy and Access Services/NPS (Local)/Policies/Connection Request Policies:
3. Edit Virtual Private Network (VPN) Connections (Or whatever you named it)
3.1. I renamed mine to ASG L2TP VPN Connections
4. Browse to Overview tab
5. Change Type of network access server from Remote Access Server (VPN-Dial up) to Unspecified
6. Browse to Conditions tab
7. Remove Condition NAS Port Type = Virtual (VPN)
8. Add Condition NAS Identifier = l2tp
9. Add Condition client IPv4 Address = (For Added Security)
10. Apply and close policy
11. Browse to Network Policies
11.1. Server Manager/Roles/Network Policy and Access Services/NPS (Local)/Policies/Network Policies:
12. Edit Virtual Private Network (VPN) Connections (Or whatever you named it)
12.1. I renamed mine to ASG L2TP VPN Connections
13. Browse to Overview tab
14. Change Type of network access server from Remote Access Server (VPN-Dial up) to Unspecified
15. Browse to Conditions tab
16. Remove Condition NAS Port Type = Virtual (VPN)
17. Add Condition NAS Identifier = l2tp
18. Add (if absent) Windows Groups = Active Directory group that allows users to VPN
19. Apply and close policy
Ich bekomme in der Astaro beim Test folgenden Fehler:
Error: Connection attempt timed out
Astaro Parameter für Radius:
Host: zoidberg.planet-express.internal (192.168.1.10:1812)
Radius Server läuft direkt auf dem AD Server.
Network Policy Server hinzugefügt:
1. In AD registrieren
Radius Clients:
Name: Sophos UTM L2TP IPSEC
IP: 192.168.1.10
Shared Secret: ***
Vendor name: RADIUS Standard
Connection Request Policies
Name: Sophos UTM L2TP IPSEC
Policy Enabled
Type of Network Access Server: Unspecified
Conditions
- NAS Identifier: l2tp
- NAS IPv4 Adr: 192.168.1.254
Setting: alles auf Default und Leer
Network Policies
Name: Sophos UTM L2TP IPSEC
Policy Enabled
Grat Access
Type of Network Access Server: Unspecified
Conditions:
Windows Groups: Domain Users
NAS Identifier l2tp
Client IPv4 Adr: 192.168.1.254
Constraints
Alles auf Default
Settings
Alles auf Default

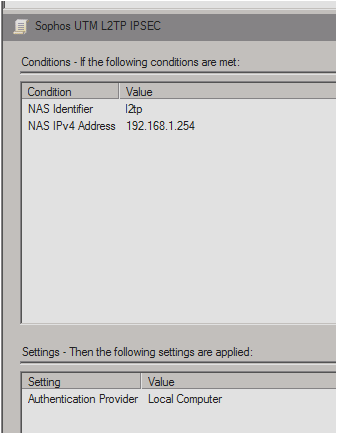

Und hier das ganze nochmals als screenshot angehängt
