Principle question: DHCP on VLAN Interface how does it work?

Captain_K

I have setup my UTM v9.5 with a PPPOE (VDSL) Interface on eth1  and a LAN interface on eth0 (DHCP activated) - It works without any probs.

Now I created a VLAN10 upon eth0 and setup a second DHCP.

As switch I use a HP Procurve 1810-8g v2 (J9802A) running Firmware 2.08.



Question:

Is it possible to setup this VLAN DHCP upon interface (eth0) where eth0 already has a network in a way it will work?

The problem is that my Notebook client do not get an IP from the VLAN DHCP.

I tried everything on the switch & UTM with Tagging & Trunks without the results I need.

Hopefully some of you have the same config up and running and is able to help me?!

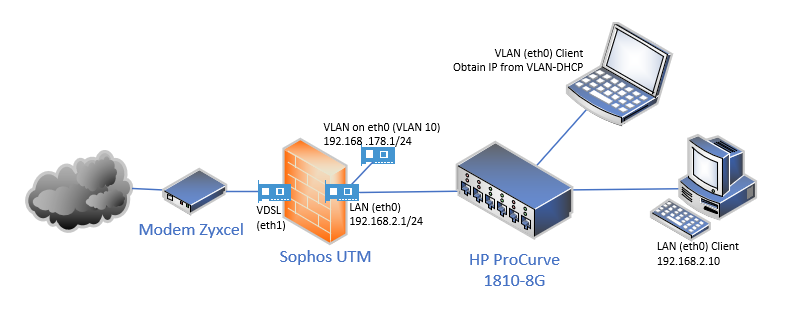

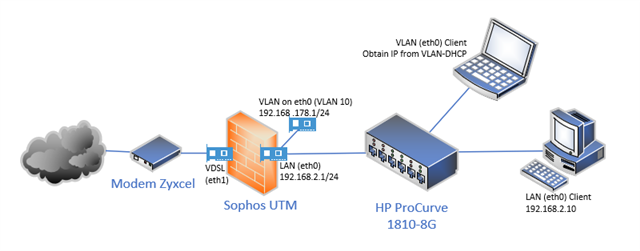

NETWORK

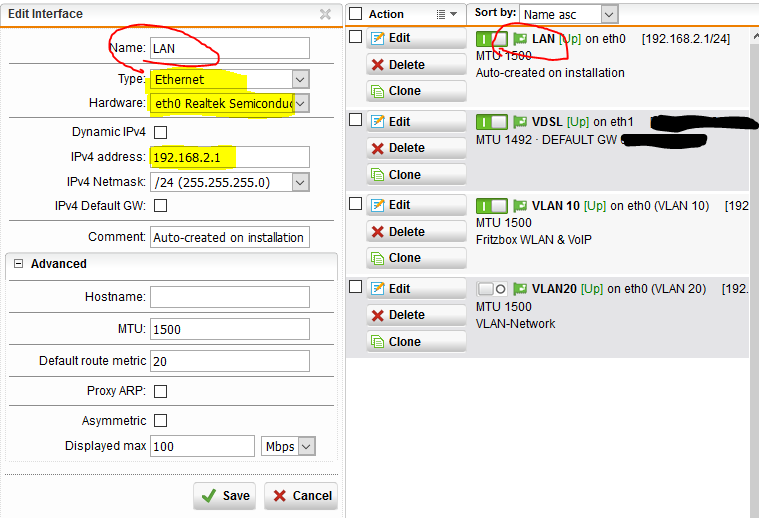

UTM LAN on eth0

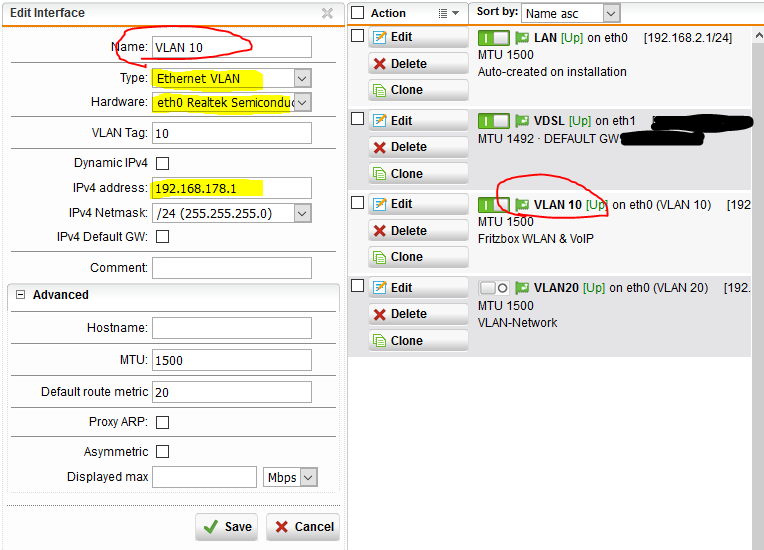

UTM VLAN10 upon LAN eth0

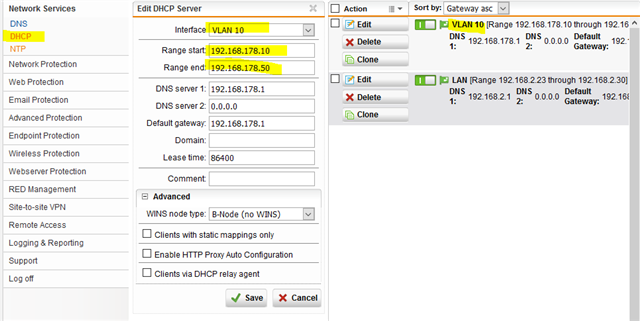

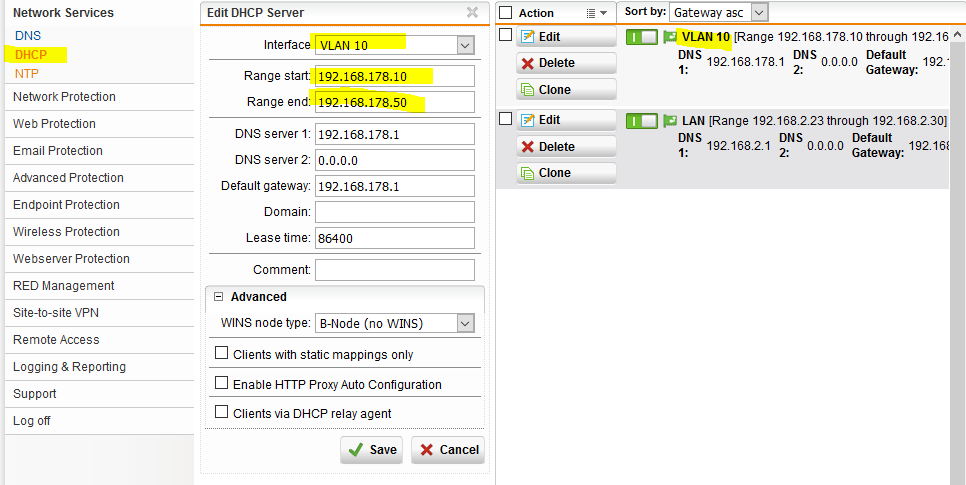

UTM LAN10 DHCP



This thread was automatically locked due to age.
Parents
  • +1

    UTM Config looks Ok.

    i think you have to configure the HP switch correctly.

    I build this often (with HP/Aruba too) and this works.

    HP Switch has to accept the default vlan untagged and VLAN10 tagged at the uplink-port.

    The notebook-port must be configured for vlan10 untagged.

    if this don#t work ... place the HP config here.






    Dirk

    Systema Gesellschaft für angewandte Datentechnik mbH  // Sophos Platinum Partner
    Sophos Solution Partner since 2003
    If a post solves your question, click the 'Verify Answer' link at this post.

  • 0 in reply to dirkkotte

    Dirk you are my hero! Its working now and weekend is saved ;)

    Thanks mate!

    For any people maybe facing the same problem I am posting my Switch config here:

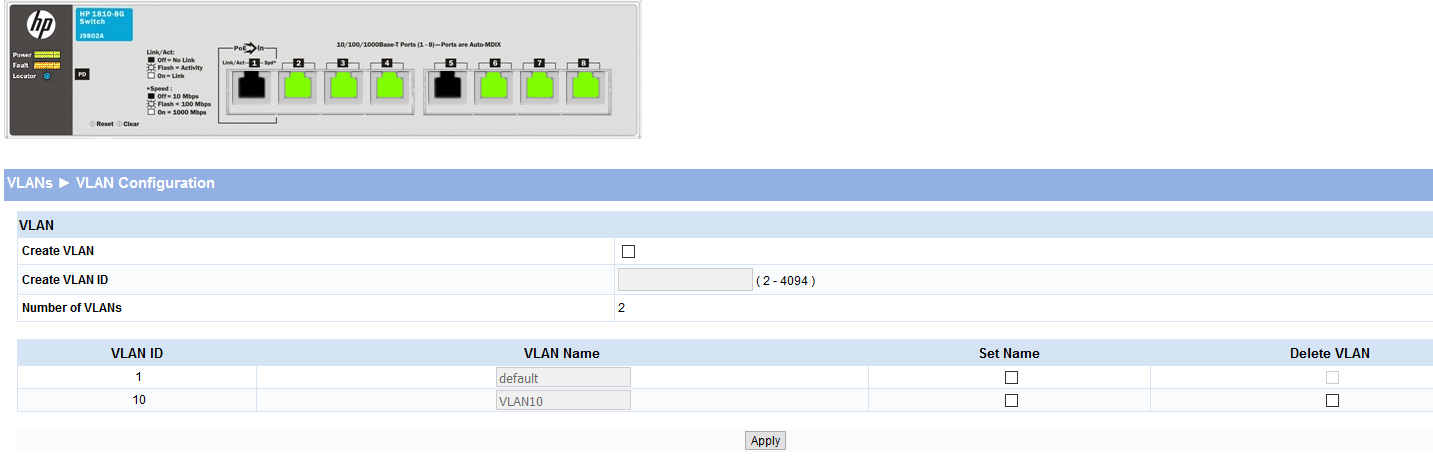

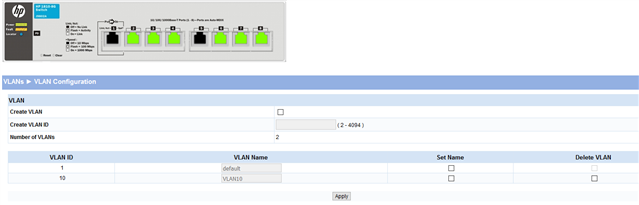

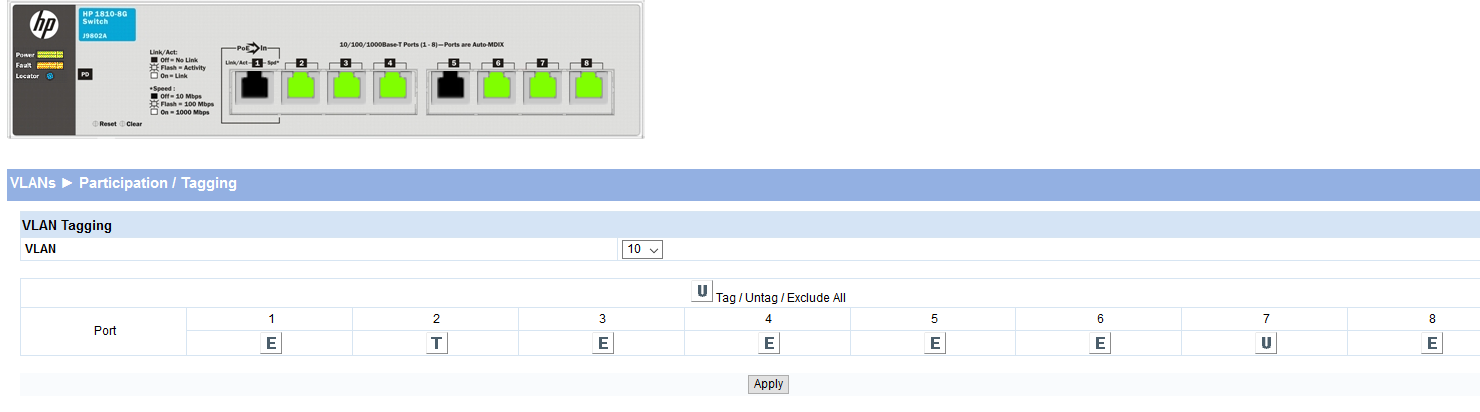

    VLAN10 config

    UTM is on Port 2 and Notebook is on Port 7
