VPN Site2Site

Wolfgang Fischer-Aragall over 4 years ago

Hallo Zusammen,
wir haben uns eine XGS 116w gekauft, um die Netgear SRX5308 abzulösen.
Nun habe ich Probleme bei den VPN Site2Site Verbindungen.
Ich erhalten im Systemprotokoll die Meldung : message="IKE message (A400AAD0) retransmission to "IPAdresse ". timed out".

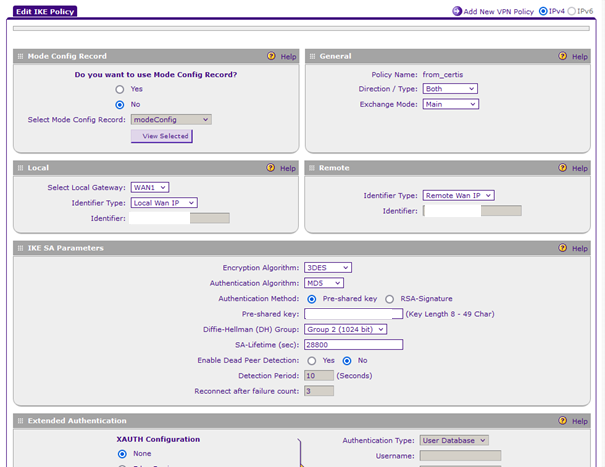

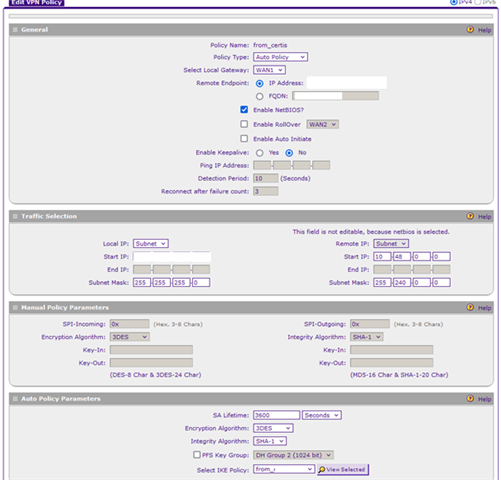

Beim Netgear hatte ich folgende Konfiguration:

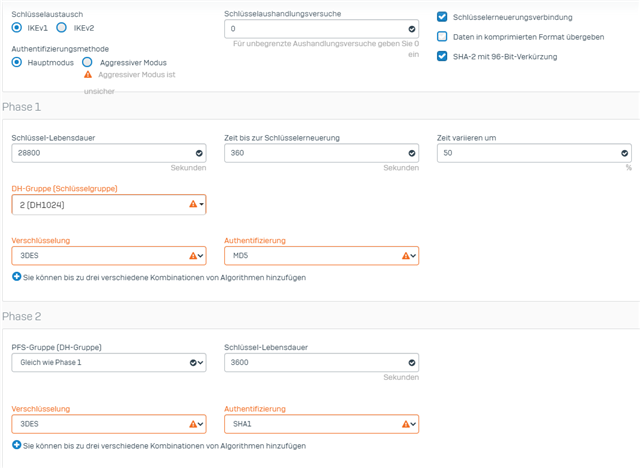

Die habe ich in Sophos wie folgt umgesetzt:

Ein Verbindungsaufbau scheitert leider ...
Was mache ich falsch?

This thread was automatically locked due to age.

Top Replies

dirkkotte over 4 years ago in reply to Wolfgang Fischer-Aragall +1

Die empfangenen Parameter " received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024" sind nicht in der Liste der "configured proposals" ... direkt darunter ... zu finden. Der NetGear scheint…

Parents

0 FormerMember over 4 years ago
Hi Wolfgang Fischer-Aragall,

Thank you for reaching out to the Community!

Could you please follow the steps from this Community Recommended Reads and collect strongswan logs in debugging?

Sophos XG Firewall: Troubleshooting site to site IPsec VPN issues

I'd also suggest you check the UDP 500 and 4500 ports are open on the ISP side.

Thanks,
Cancel
Vote Up 0 Vote Down

Cancel
0 Wolfgang Fischer-Aragall over 4 years ago in reply to FormerMember

Hi, my log file:
2021-08-09 16:31:26 03[NET] waiting for data on sockets
2021-08-09 16:31:26 21[NET] <765> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (108 bytes)
2021-08-09 16:31:26 21[ENC] <765> invalid ID_V1 payload length, decryption failed?
2021-08-09 16:31:26 21[ENC] <765> could not decrypt payloads
2021-08-09 16:31:26 21[IKE] <765> message parsing failed
2021-08-09 16:31:26 21[ENC] <765> generating INFORMATIONAL_V1 request 206388107 [ HASH N(PLD_MAL) ]
2021-08-09 16:31:26 21[NET] <765> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (76 bytes)
2021-08-09 16:31:26 21[IKE] <765> ID_PROT request with message ID 0 processing failed
2021-08-09 16:31:26 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:26 21[DMN] <765> [GARNER-LOGGING] (child_alert) ALERT: parsing IKE message from 80.120.2.66[500] failed
2021-08-09 16:31:32 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:32 03[NET] waiting for data on sockets
2021-08-09 16:31:32 22[NET] <765> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (108 bytes)
2021-08-09 16:31:32 22[ENC] <765> invalid ID_V1 payload length, decryption failed?
2021-08-09 16:31:32 22[ENC] <765> could not decrypt payloads
2021-08-09 16:31:32 22[IKE] <765> message parsing failed
2021-08-09 16:31:32 22[ENC] <765> generating INFORMATIONAL_V1 request 4226201827 [ HASH N(PLD_MAL) ]
2021-08-09 16:31:32 22[NET] <765> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (76 bytes)
2021-08-09 16:31:32 22[IKE] <765> ID_PROT request with message ID 0 processing failed
2021-08-09 16:31:32 22[DMN] <765> [GARNER-LOGGING] (child_alert) ALERT: parsing IKE message from 80.120.2.66[500] failed
2021-08-09 16:31:32 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:33 08[JOB] <750> deleting half open IKE_SA with 80.120.2.66 after timeout
2021-08-09 16:31:33 08[DMN] <750> [GARNER-LOGGING] (child_alert) ALERT: IKE_SA timed out before it could be established
2021-08-09 16:31:33 08[IKE] <750> IKE_SA (unnamed)[750] state change: CONNECTING => DESTROYING
2021-08-09 16:31:33 08[IKE] <750> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:33 08[IKE] <750> flush_queue(IKE_NATD)
2021-08-09 16:31:33 08[IKE] <750> flush_queue(IKE_INIT)
2021-08-09 16:31:33 08[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:31:33 08[IKE] flush_queue(IKE_NATD)
2021-08-09 16:31:33 08[IKE] flush_queue(IKE_INIT)
2021-08-09 16:31:44 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:44 03[NET] waiting for data on sockets
2021-08-09 16:31:44 28[NET] <765> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (108 bytes)
2021-08-09 16:31:44 28[ENC] <765> invalid ID_V1 payload length, decryption failed?
2021-08-09 16:31:44 28[ENC] <765> could not decrypt payloads
2021-08-09 16:31:44 28[IKE] <765> message parsing failed
2021-08-09 16:31:44 28[ENC] <765> generating INFORMATIONAL_V1 request 4127081849 [ HASH N(PLD_MAL) ]
2021-08-09 16:31:44 28[NET] <765> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (76 bytes)
2021-08-09 16:31:44 28[IKE] <765> ID_PROT request with message ID 0 processing failed
2021-08-09 16:31:44 28[DMN] <765> [GARNER-LOGGING] (child_alert) ALERT: parsing IKE message from 80.120.2.66[500] failed
2021-08-09 16:31:44 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:50 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:50 03[NET] waiting for data on sockets
2021-08-09 16:31:50 05[NET] <766> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:31:50 05[ENC] <766> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:31:50 05[CFG] <766> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:31:50 05[CFG] <766> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:31:50 05[CFG] <766> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:31:50 05[IKE] <766> received FRAGMENTATION vendor ID
2021-08-09 16:31:50 05[ENC] <766> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:31:50 05[IKE] <766> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:31:50 05[IKE] <766> IKE_SA (unnamed)[766] state change: CREATED => CONNECTING
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:50 05[CFG] <766> selecting proposal:
2021-08-09 16:31:50 05[CFG] <766> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:50 05[CFG] <766> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:31:50 05[CFG] <766> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:31:50 05[IKE] <766> no proposal found
2021-08-09 16:31:50 05[IKE] <766> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_NATD)
2021-08-09 16:31:50 05[IKE] <766> activating new tasks
2021-08-09 16:31:50 05[IKE] <766> activating INFORMATIONAL task
2021-08-09 16:31:50 05[ENC] <766> generating INFORMATIONAL_V1 request 2002267644 [ N(NO_PROP) ]
2021-08-09 16:31:50 05[NET] <766> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_NATD)
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_INIT)
2021-08-09 16:31:50 05[IKE] <766> IKE_SA (unnamed)[766] state change: CONNECTING => DESTROYING
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_NATD)
2021-08-09 16:31:50 05[IKE] <766> flush_queue(IKE_INIT)
2021-08-09 16:31:50 05[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:31:50 05[IKE] flush_queue(IKE_NATD)
2021-08-09 16:31:50 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:31:50 05[IKE] flush_queue(IKE_INIT)
2021-08-09 16:31:51 03[NET] received packet: from 77.6.80.72[4500] to 217.86.165.104[4500] on Port2_ppp
2021-08-09 16:31:51 03[NET] waiting for data on sockets
2021-08-09 16:31:51 18[NET] <from_Fischer-1|78> received packet: from 77.6.80.72[4500] to 217.86.165.104[4500] (92 bytes)
2021-08-09 16:31:51 18[ENC] <from_Fischer-1|78> parsed INFORMATIONAL_V1 request 2200490496 [ HASH N(DPD) ]
2021-08-09 16:31:51 18[IKE] <from_Fischer-1|78> queueing ISAKMP_R_U_THERE_ACK task, already 0 tasks queued
2021-08-09 16:31:51 18[IKE] <from_Fischer-1|78> activating new tasks
2021-08-09 16:31:51 18[IKE] <from_Fischer-1|78> activating ISAKMP_R_U_THERE_ACK task
2021-08-09 16:31:51 18[ENC] <from_Fischer-1|78> generating INFORMATIONAL_V1 request 975388295 [ HASH N(DPD_ACK) ]
2021-08-09 16:31:51 18[NET] <from_Fischer-1|78> sending packet: from 217.86.165.104[4500] to 77.6.80.72[4500] (92 bytes)
2021-08-09 16:31:51 18[IKE] <from_Fischer-1|78> activating new tasks
2021-08-09 16:31:51 18[IKE] <from_Fischer-1|78> nothing to initiate
2021-08-09 16:31:51 04[NET] sending packet: from 217.86.165.104[4500] to 77.6.80.72[4500]
2021-08-09 16:31:52 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:52 03[NET] waiting for data on sockets
2021-08-09 16:31:52 27[NET] <767> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:31:52 27[ENC] <767> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:31:52 27[CFG] <767> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:31:52 27[CFG] <767> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:31:52 27[CFG] <767> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:31:52 27[IKE] <767> received FRAGMENTATION vendor ID
2021-08-09 16:31:52 27[ENC] <767> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:31:52 27[IKE] <767> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:31:52 27[IKE] <767> IKE_SA (unnamed)[767] state change: CREATED => CONNECTING
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:52 27[CFG] <767> selecting proposal:
2021-08-09 16:31:52 27[CFG] <767> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:52 27[CFG] <767> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:31:52 27[CFG] <767> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:31:52 27[IKE] <767> no proposal found
2021-08-09 16:31:52 27[IKE] <767> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_NATD)
2021-08-09 16:31:52 27[IKE] <767> activating new tasks
2021-08-09 16:31:52 27[IKE] <767> activating INFORMATIONAL task
2021-08-09 16:31:52 27[ENC] <767> generating INFORMATIONAL_V1 request 2881087081 [ N(NO_PROP) ]
2021-08-09 16:31:52 27[NET] <767> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_NATD)
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_INIT)
2021-08-09 16:31:52 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:31:52 27[IKE] <767> IKE_SA (unnamed)[767] state change: CONNECTING => DESTROYING
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_NATD)
2021-08-09 16:31:52 27[IKE] <767> flush_queue(IKE_INIT)
2021-08-09 16:31:52 27[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:31:52 27[IKE] flush_queue(IKE_NATD)
2021-08-09 16:31:52 27[IKE] flush_queue(IKE_INIT)
2021-08-09 16:31:53 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:53 03[NET] waiting for data on sockets
2021-08-09 16:31:53 07[NET] <768> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (628 bytes)
2021-08-09 16:31:53 07[ENC] <768> parsed ID_PROT request 0 [ SA V V V V V V V V V V ]
2021-08-09 16:31:53 07[CFG] <768> looking for an ike config for 217.86.165.104...80.120.2.66
2021-08-09 16:31:53 07[CFG] <768> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:31:53 07[CFG] <768> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:31:53 07[IKE] <768> received NAT-T (RFC 3947) vendor ID
2021-08-09 16:31:53 07[IKE] <768> received draft-ietf-ipsec-nat-t-ike-03 vendor ID
2021-08-09 16:31:53 07[IKE] <768> received draft-ietf-ipsec-nat-t-ike-02 vendor ID
2021-08-09 16:31:53 07[IKE] <768> received draft-ietf-ipsec-nat-t-ike-02\n vendor ID
2021-08-09 16:31:53 07[ENC] <768> received unknown vendor ID: 16:f6:ca:16:e4:a4:06:6d:83:82:1a:0f:0a:ea:a8:62
2021-08-09 16:31:53 07[IKE] <768> received draft-ietf-ipsec-nat-t-ike-00 vendor ID
2021-08-09 16:31:53 07[IKE] <768> received DPD vendor ID
2021-08-09 16:31:53 07[IKE] <768> received FRAGMENTATION vendor ID
2021-08-09 16:31:53 07[IKE] <768> received FRAGMENTATION vendor ID
2021-08-09 16:31:53 07[ENC] <768> received unknown vendor ID: 82:99:03:17:57:a3:60:82:c6:a6:21:de:00:00:00:00
2021-08-09 16:31:53 07[IKE] <768> 80.120.2.66 is initiating a Main Mode IKE_SA
2021-08-09 16:31:53 07[IKE] <768> IKE_SA (unnamed)[768] state change: CREATED => CONNECTING
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> no acceptable DIFFIE_HELLMAN_GROUP found
2021-08-09 16:31:53 07[CFG] <768> selecting proposal:
2021-08-09 16:31:53 07[CFG] <768> proposal matches
2021-08-09 16:31:53 07[CFG] <768> received proposals: IKE:3DES_CBC/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1536, IKE:3DES_CBC/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024, IKE:DES_CBC/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1536, IKE:DES_CBC/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:DES_CBC/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1536, IKE:DES_CBC/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1536, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1536, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
2021-08-09 16:31:53 07[CFG] <768> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:31:53 07[CFG] <768> selected proposal: IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
2021-08-09 16:31:53 07[IKE] <768> sending XAuth vendor ID
2021-08-09 16:31:53 07[IKE] <768> sending DPD vendor ID
2021-08-09 16:31:53 07[IKE] <768> sending Cisco Unity vendor ID
2021-08-09 16:31:53 07[IKE] <768> sending FRAGMENTATION vendor ID
2021-08-09 16:31:53 07[IKE] <768> sending NAT-T (RFC 3947) vendor ID
2021-08-09 16:31:53 07[ENC] <768> generating ID_PROT response 0 [ SA V V V V V ]
2021-08-09 16:31:53 07[NET] <768> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (184 bytes)
2021-08-09 16:31:53 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:53 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:53 03[NET] waiting for data on sockets
2021-08-09 16:31:53 17[NET] <768> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (228 bytes)
2021-08-09 16:31:53 17[ENC] <768> parsed ID_PROT request 0 [ KE No NAT-D NAT-D ]
2021-08-09 16:31:53 17[CFG] <768> candidate "VPN_Iphone_Mac-1", match: 1/1/1052 (me/other/ike)
2021-08-09 16:31:53 17[ENC] <768> generating ID_PROT response 0 [ KE No NAT-D NAT-D ]
2021-08-09 16:31:53 17[NET] <768> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (244 bytes)
2021-08-09 16:31:53 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:53 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:53 03[NET] waiting for data on sockets
2021-08-09 16:31:53 29[NET] <768> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (108 bytes)
2021-08-09 16:31:53 29[ENC] <768> invalid ID_V1 payload length, decryption failed?
2021-08-09 16:31:53 29[ENC] <768> could not decrypt payloads
2021-08-09 16:31:53 29[IKE] <768> message parsing failed
2021-08-09 16:31:53 29[ENC] <768> generating INFORMATIONAL_V1 request 3533296544 [ HASH N(PLD_MAL) ]
2021-08-09 16:31:53 29[NET] <768> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (76 bytes)
2021-08-09 16:31:53 29[IKE] <768> ID_PROT request with message ID 0 processing failed
2021-08-09 16:31:53 29[DMN] <768> [GARNER-LOGGING] (child_alert) ALERT: parsing IKE message from 80.120.2.66[500] failed
2021-08-09 16:31:53 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:54 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:54 03[NET] waiting for data on sockets
2021-08-09 16:31:54 23[NET] <769> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:31:54 23[ENC] <769> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:31:54 23[CFG] <769> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:31:54 23[CFG] <769> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:31:54 23[CFG] <769> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:31:54 23[IKE] <769> received FRAGMENTATION vendor ID
2021-08-09 16:31:54 23[ENC] <769> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:31:54 23[IKE] <769> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:31:54 23[IKE] <769> IKE_SA (unnamed)[769] state change: CREATED => CONNECTING
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:54 23[CFG] <769> selecting proposal:
2021-08-09 16:31:54 23[CFG] <769> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:54 23[CFG] <769> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:31:54 23[CFG] <769> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:31:54 23[IKE] <769> no proposal found
2021-08-09 16:31:54 23[IKE] <769> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_NATD)
2021-08-09 16:31:54 23[IKE] <769> activating new tasks
2021-08-09 16:31:54 23[IKE] <769> activating INFORMATIONAL task
2021-08-09 16:31:54 23[ENC] <769> generating INFORMATIONAL_V1 request 3349348039 [ N(NO_PROP) ]
2021-08-09 16:31:54 23[NET] <769> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:54 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_NATD)
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_INIT)
2021-08-09 16:31:54 23[IKE] <769> IKE_SA (unnamed)[769] state change: CONNECTING => DESTROYING
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_NATD)
2021-08-09 16:31:54 23[IKE] <769> flush_queue(IKE_INIT)
2021-08-09 16:31:54 23[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:31:54 23[IKE] flush_queue(IKE_NATD)
2021-08-09 16:31:54 23[IKE] flush_queue(IKE_INIT)
2021-08-09 16:31:56 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:56 03[NET] waiting for data on sockets
2021-08-09 16:31:56 22[NET] <768> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (108 bytes)
2021-08-09 16:31:56 22[ENC] <768> invalid ID_V1 payload length, decryption failed?
2021-08-09 16:31:56 22[ENC] <768> could not decrypt payloads
2021-08-09 16:31:56 22[IKE] <768> message parsing failed
2021-08-09 16:31:56 22[ENC] <768> generating INFORMATIONAL_V1 request 459763827 [ HASH N(PLD_MAL) ]
2021-08-09 16:31:56 22[NET] <768> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (76 bytes)
2021-08-09 16:31:56 22[IKE] <768> ID_PROT request with message ID 0 processing failed
2021-08-09 16:31:56 22[DMN] <768> [GARNER-LOGGING] (child_alert) ALERT: parsing IKE message from 80.120.2.66[500] failed
2021-08-09 16:31:56 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:31:56 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:56 03[NET] waiting for data on sockets
2021-08-09 16:31:56 14[NET] <770> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:31:56 14[ENC] <770> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:31:56 14[CFG] <770> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:31:56 14[CFG] <770> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:31:56 14[CFG] <770> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:31:56 14[IKE] <770> received FRAGMENTATION vendor ID
2021-08-09 16:31:56 14[ENC] <770> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:31:56 14[IKE] <770> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:31:56 14[IKE] <770> IKE_SA (unnamed)[770] state change: CREATED => CONNECTING
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:56 14[CFG] <770> selecting proposal:
2021-08-09 16:31:56 14[CFG] <770> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:56 14[CFG] <770> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:31:56 14[CFG] <770> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:31:56 14[IKE] <770> no proposal found
2021-08-09 16:31:56 14[IKE] <770> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_NATD)
2021-08-09 16:31:56 14[IKE] <770> activating new tasks
2021-08-09 16:31:56 14[IKE] <770> activating INFORMATIONAL task
2021-08-09 16:31:56 14[ENC] <770> generating INFORMATIONAL_V1 request 4163311770 [ N(NO_PROP) ]
2021-08-09 16:31:56 14[NET] <770> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_NATD)
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_INIT)
2021-08-09 16:31:56 14[IKE] <770> IKE_SA (unnamed)[770] state change: CONNECTING => DESTROYING
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_NATD)
2021-08-09 16:31:56 14[IKE] <770> flush_queue(IKE_INIT)
2021-08-09 16:31:56 14[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:31:56 14[IKE] flush_queue(IKE_NATD)
2021-08-09 16:31:56 14[IKE] flush_queue(IKE_INIT)
2021-08-09 16:31:56 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:31:58 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:31:58 03[NET] waiting for data on sockets
2021-08-09 16:31:58 08[NET] <771> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:31:58 08[ENC] <771> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:31:58 08[CFG] <771> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:31:58 08[CFG] <771> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:31:58 08[CFG] <771> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:31:58 08[IKE] <771> received FRAGMENTATION vendor ID
2021-08-09 16:31:58 08[ENC] <771> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:31:58 08[IKE] <771> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:31:58 08[IKE] <771> IKE_SA (unnamed)[771] state change: CREATED => CONNECTING
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:31:58 08[CFG] <771> selecting proposal:
2021-08-09 16:31:58 08[CFG] <771> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:31:58 08[CFG] <771> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:31:58 08[CFG] <771> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:31:58 08[IKE] <771> no proposal found
2021-08-09 16:31:58 08[IKE] <771> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_NATD)
2021-08-09 16:31:58 08[IKE] <771> activating new tasks
2021-08-09 16:31:58 08[IKE] <771> activating INFORMATIONAL task
2021-08-09 16:31:58 08[ENC] <771> generating INFORMATIONAL_V1 request 3668561189 [ N(NO_PROP) ]
2021-08-09 16:31:58 08[NET] <771> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_NATD)
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_INIT)
2021-08-09 16:31:58 08[IKE] <771> IKE_SA (unnamed)[771] state change: CONNECTING => DESTROYING
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_MOBIKE)
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_NATD)
2021-08-09 16:31:58 08[IKE] <771> flush_queue(IKE_INIT)
2021-08-09 16:31:58 08[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:31:58 08[IKE] flush_queue(IKE_NATD)
2021-08-09 16:31:58 08[IKE] flush_queue(IKE_INIT)
2021-08-09 16:31:58 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:32:00 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:32:00 03[NET] waiting for data on sockets
2021-08-09 16:32:00 28[NET] <772> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:32:00 28[ENC] <772> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:32:00 28[CFG] <772> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:32:00 28[CFG] <772> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:32:00 28[CFG] <772> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:32:00 28[IKE] <772> received FRAGMENTATION vendor ID
2021-08-09 16:32:00 28[ENC] <772> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:32:00 28[IKE] <772> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:32:00 28[IKE] <772> IKE_SA (unnamed)[772] state change: CREATED => CONNECTING
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:00 28[CFG] <772> selecting proposal:
2021-08-09 16:32:00 28[CFG] <772> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:00 28[CFG] <772> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:32:00 28[CFG] <772> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:32:00 28[IKE] <772> no proposal found
2021-08-09 16:32:00 28[IKE] <772> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_NATD)
2021-08-09 16:32:00 28[IKE] <772> activating new tasks
2021-08-09 16:32:00 28[IKE] <772> activating INFORMATIONAL task
2021-08-09 16:32:00 28[ENC] <772> generating INFORMATIONAL_V1 request 3998959132 [ N(NO_PROP) ]
2021-08-09 16:32:00 28[NET] <772> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_MOBIKE)
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_NATD)
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_INIT)
2021-08-09 16:32:00 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:32:00 28[IKE] <772> IKE_SA (unnamed)[772] state change: CONNECTING => DESTROYING
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_MOBIKE)
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_NATD)
2021-08-09 16:32:00 28[IKE] <772> flush_queue(IKE_INIT)
2021-08-09 16:32:00 28[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:32:00 28[IKE] flush_queue(IKE_NATD)
2021-08-09 16:32:00 28[IKE] flush_queue(IKE_INIT)
2021-08-09 16:32:02 03[NET] received packet: from 80.120.2.66[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:32:02 03[NET] waiting for data on sockets
2021-08-09 16:32:02 09[NET] <768> received packet: from 80.120.2.66[500] to 217.86.165.104[500] (108 bytes)
2021-08-09 16:32:02 09[ENC] <768> invalid ID_V1 payload length, decryption failed?
2021-08-09 16:32:02 09[ENC] <768> could not decrypt payloads
2021-08-09 16:32:02 09[IKE] <768> message parsing failed
2021-08-09 16:32:02 09[ENC] <768> generating INFORMATIONAL_V1 request 382059531 [ HASH N(PLD_MAL) ]
2021-08-09 16:32:02 09[NET] <768> sending packet: from 217.86.165.104[500] to 80.120.2.66[500] (76 bytes)
2021-08-09 16:32:02 09[IKE] <768> ID_PROT request with message ID 0 processing failed
2021-08-09 16:32:02 09[DMN] <768> [GARNER-LOGGING] (child_alert) ALERT: parsing IKE message from 80.120.2.66[500] failed
2021-08-09 16:32:02 04[NET] sending packet: from 217.86.165.104[500] to 80.120.2.66[500]
2021-08-09 16:32:02 03[NET] received packet: from 213.23.81.142[500] to 217.86.165.104[500] on Port2_ppp
2021-08-09 16:32:02 03[NET] waiting for data on sockets
2021-08-09 16:32:02 24[NET] <773> received packet: from 213.23.81.142[500] to 217.86.165.104[500] (152 bytes)
2021-08-09 16:32:02 24[ENC] <773> parsed ID_PROT request 0 [ SA V V ]
2021-08-09 16:32:02 24[CFG] <773> looking for an ike config for 217.86.165.104...213.23.81.142
2021-08-09 16:32:02 24[CFG] <773> candidate: 217.86.165.104...%any, prio 1052
2021-08-09 16:32:02 24[CFG] <773> found matching ike config: 217.86.165.104...%any with prio 1052
2021-08-09 16:32:02 24[IKE] <773> received FRAGMENTATION vendor ID
2021-08-09 16:32:02 24[ENC] <773> received unknown vendor ID: f4:ed:19:e0:c1:14:eb:51:6f:aa:ac:0e:e3:7d:af:28:07:b4:38:1f:00:00:00:01:00:00:13:8d:61:11:3c:52:00:00:00:00:18:29:00:00
2021-08-09 16:32:02 24[IKE] <773> 213.23.81.142 is initiating a Main Mode IKE_SA
2021-08-09 16:32:02 24[IKE] <773> IKE_SA (unnamed)[773] state change: CREATED => CONNECTING
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable PSEUDO_RANDOM_FUNCTION found
2021-08-09 16:32:02 24[CFG] <773> selecting proposal:
2021-08-09 16:32:02 24[CFG] <773> no acceptable ENCRYPTION_ALGORITHM found
2021-08-09 16:32:02 24[CFG] <773> received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024
2021-08-09 16:32:02 24[CFG] <773> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/CURVE_25519, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_192, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_192, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_521, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_521, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_4096, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_4096, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024, IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_8192/MODP_2048
2021-08-09 16:32:02 24[IKE] <773> no proposal found
2021-08-09 16:32:02 24[IKE] <773> queueing INFORMATIONAL task, already 0 tasks queued
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_NATD)
2021-08-09 16:32:02 24[IKE] <773> activating new tasks
2021-08-09 16:32:02 24[IKE] <773> activating INFORMATIONAL task
2021-08-09 16:32:02 24[ENC] <773> generating INFORMATIONAL_V1 request 2503534815 [ N(NO_PROP) ]
2021-08-09 16:32:02 24[NET] <773> sending packet: from 217.86.165.104[500] to 213.23.81.142[500] (56 bytes)
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_MOBIKE)
2021-08-09 16:32:02 04[NET] sending packet: from 217.86.165.104[500] to 213.23.81.142[500]
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_NATD)
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_INIT)
2021-08-09 16:32:02 24[IKE] <773> IKE_SA (unnamed)[773] state change: CONNECTING => DESTROYING
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_MOBIKE)
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_NATD)
2021-08-09 16:32:02 24[IKE] <773> flush_queue(IKE_INIT)
2021-08-09 16:32:02 24[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:32:02 24[IKE] flush_queue(IKE_NATD)
2021-08-09 16:32:02 24[IKE] flush_queue(IKE_INIT)
2021-08-09 16:32:03 20[JOB] <753> deleting half open IKE_SA with 80.120.2.66 after timeout
2021-08-09 16:32:03 20[DMN] <753> [GARNER-LOGGING] (child_alert) ALERT: IKE_SA timed out before it could be established
2021-08-09 16:32:03 20[IKE] <753> IKE_SA (unnamed)[753] state change: CONNECTING => DESTROYING
2021-08-09 16:32:03 20[IKE] <753> flush_queue(IKE_MOBIKE)
2021-08-09 16:32:03 20[IKE] <753> flush_queue(IKE_NATD)
2021-08-09 16:32:03 20[IKE] <753> flush_queue(IKE_INIT)
2021-08-09 16:32:03 20[IKE] flush_queue(IKE_MOBIKE)
2021-08-09 16:32:03 20[IKE] flush_queue(IKE_NATD)
2021-08-09 16:32:03 20[IKE] flush_queue(IKE_INIT)
Cancel
Vote Up 0 Vote Down

Cancel
0 dirkkotte over 4 years ago in reply to Wolfgang Fischer-Aragall

Die empfangenen Parameter "received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024" sind nicht in der Liste der "configured proposals" ... direkt darunter ... zu finden.

Der NetGear scheint nicht die konfigurierten Parameter 3DES/SHA1 zu senden.

Dirk

Systema Gesellschaft für angewandte Datentechnik mbH // Sophos Platinum Partner
Sophos Solution Partner since 2003
If a post solves your question, click the 'Verify Answer' link at this post.
Cancel
Vote Up +1 Vote Down

Cancel

Reply

0 dirkkotte over 4 years ago in reply to Wolfgang Fischer-Aragall

Die empfangenen Parameter "received proposals: IKE:AES_CBC_128/HMAC_MD5_96/PRF_HMAC_MD5/MODP_1024" sind nicht in der Liste der "configured proposals" ... direkt darunter ... zu finden.

Der NetGear scheint nicht die konfigurierten Parameter 3DES/SHA1 zu senden.

Dirk

Systema Gesellschaft für angewandte Datentechnik mbH // Sophos Platinum Partner
Sophos Solution Partner since 2003
If a post solves your question, click the 'Verify Answer' link at this post.
Cancel
Vote Up +1 Vote Down

Cancel

Children

No Data
