IPSec Site 2 Site VPN XG 115

BRANDO CORSINI

Hi,

I've setup one Site 2 Site VPN between two XG 115, link is up but I'm unable to ping host on site 1 from host/firewall on site 2 and viceversa, below the configuration:

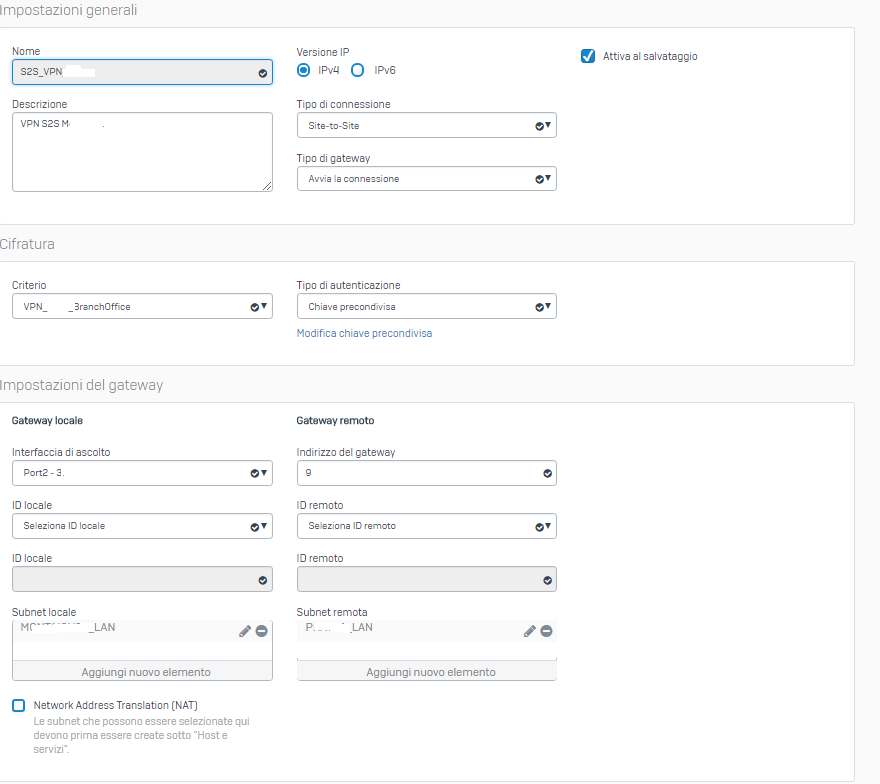

SITE 1 (branch office):





SITE 2 (head office):





Site 1 XG115 has SFOS 17.0.0 GA firwmare

Site 2 XG115 had SFOS 16.05.5 MR-5 firmware

Thank you!





This thread was automatically locked due to age.
Parents
  • 0

    Almost the same issue but with XG 17 MR5 and UTM. IPsec tunnel is up after hours of testing and configuring but traffic won't pass the tunnel. Checked everything but nothing seems to work. Already activated and deactivated 96bit truncation without any change.

  • 0 in reply to Jelle

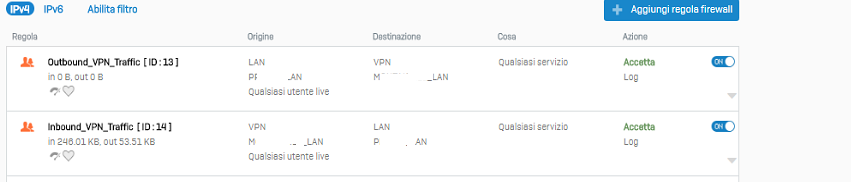

    For those who have an active and connected VPN but can't send data through it: have a look at your corresponding firewall rule and check if primary gateway is set to "None"! Else the routing inside the XG goes wrong, packets will be send to the interface instead to the ipsec connection.

Reply
  • 0 in reply to Jelle

    For those who have an active and connected VPN but can't send data through it: have a look at your corresponding firewall rule and check if primary gateway is set to "None"! Else the routing inside the XG goes wrong, packets will be send to the interface instead to the ipsec connection.
