Dual WAN Configuration Not Working

Good day

We have recently implemented XG230 (SFOS 16.05.5 MR-5). There are two WANs to different ISPs. There are LAN and Wifi zones on the inside. The LAN for network attached computers and the the wifi with 2 access points, let me call them wStaff and wGuests with different ip ranges. We want the wGuests traffics (10.220.1.x) to use WAN2 (Port 3), while the rest LAN (eg. 10.200.1.x) and wStaff (10.210.1.x) to go to WAN 1 (Port 2).

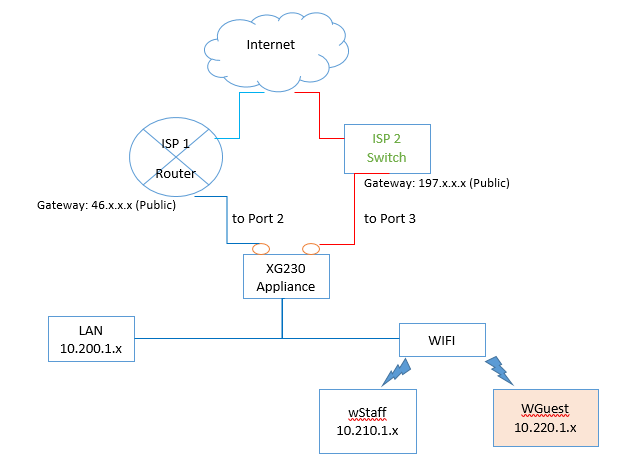

The picture depict the config we want to achieve. Nonetheless, although we have added additional NAT a part from MASQ, policy route for wGuests to WAN2, gateways (both with green status and ping test from diagnostics results positive to both gateways),and created a firewall rule (wGuests as source and WAN, and NAT & Routing to WAN 2), the internet traffic from wGuests are not passing through - all being blocked- error message received on connected devices is attached below. All other traffics from LAN and wStaff are good. Any assistance is much appreciated.

This thread was automatically locked due to age.

0 rfcat_vk over 7 years ago

Hi,

please post your firewall rules. Determining what you are trying to achieve is very difficult without the rules.

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 Fasil Yilma over 7 years ago in reply to rfcat_vk

Thanks for the reply. Here are attached the firewall rule and other that may help. In short, we want our wifi ap(wGuests) to use one WAN, while devices connected to the LAN and other wifi use a separate WAN.
Cancel
Vote Up 0 Vote Down

Cancel
0 Ronak Sheth over 7 years ago

Hello Fasil,

Are you trying to achieve by firewall rule ID 8? If yes, then modify it or create a firewall rules above it as follows.

Src Zone: Wi-Fi

Src Network: 10.250.1.0 / 24

Dst Zone: WAN

Dst Network: Any

Service: Any

Router through Gateway: WAN 2

NAT: Your NAT policy

Web and App Policy of your choice (just for testing keep it None)

Good Luck!!!

Regards, Ronak.
Cancel
Vote Up 0 Vote Down

Cancel
0 Fasil Yilma over 7 years ago in reply to Ronak Sheth

Thank you, Ronak for the assistance. I have added a new rule above (id:6) with the params you recommended, however the problem is still there. attached the screen shot and packet capture indicating the new rule didnt allow the incoming traffics. We also thought it's straight forward but we are missing something.
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 7 years ago in reply to Fasil Yilma

Hi,

what do you mean by incoming traffic? If you mean incoming to the XG from external sources then you will need another rule wan -> lan type.

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 Fasil Yilma over 7 years ago in reply to rfcat_vk

Hi Ian

I tried it but not working.

Regards

Fasil
