WAN Gateway VS Routing Gateway

Ronak Sheth

Hello Everyone,



Can anyone explain difference between WAN Gateway and Routing Gateway? Also provide a use case if possible?



Thanks in advance.



Regards, Ronak.



This thread was automatically locked due to age.
  • 0

    Hi Ronak,

    the WAN Gateway is the default Gateway assigned to a WAN Port (configured in Port Configuration).

    maybe your XG Firewall is not the only Layer 3 Device on your Site and you need to reach some networks via a router which is reacheable over the lan port - than you configure static routing.

    in some more advanced setups you'll need policy based routing.

    the thing you called "routing gateway" can be used in policy based routing.

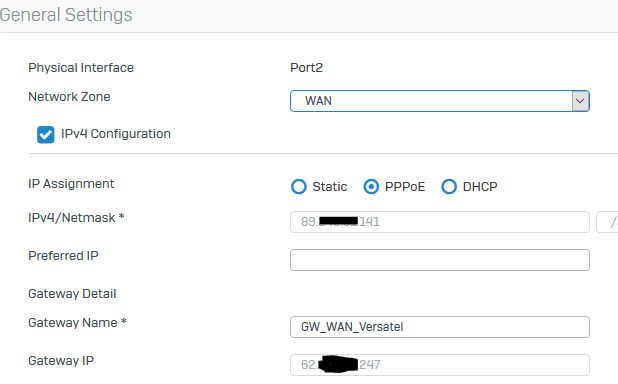

    WAN Gateway:

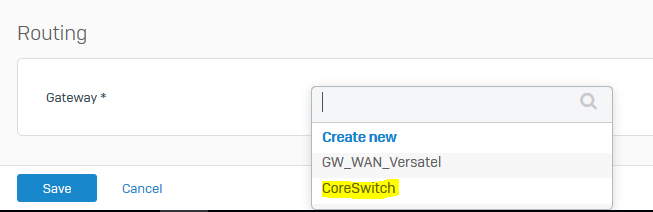

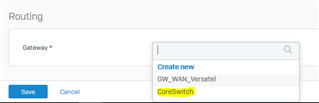

    Policy based routing wizard:

    yours Lukas
