How to Route Traffic through LAN Alias

Shahzad Ali

Dear Team,

i have a problem below is the scenario.

What I configured:

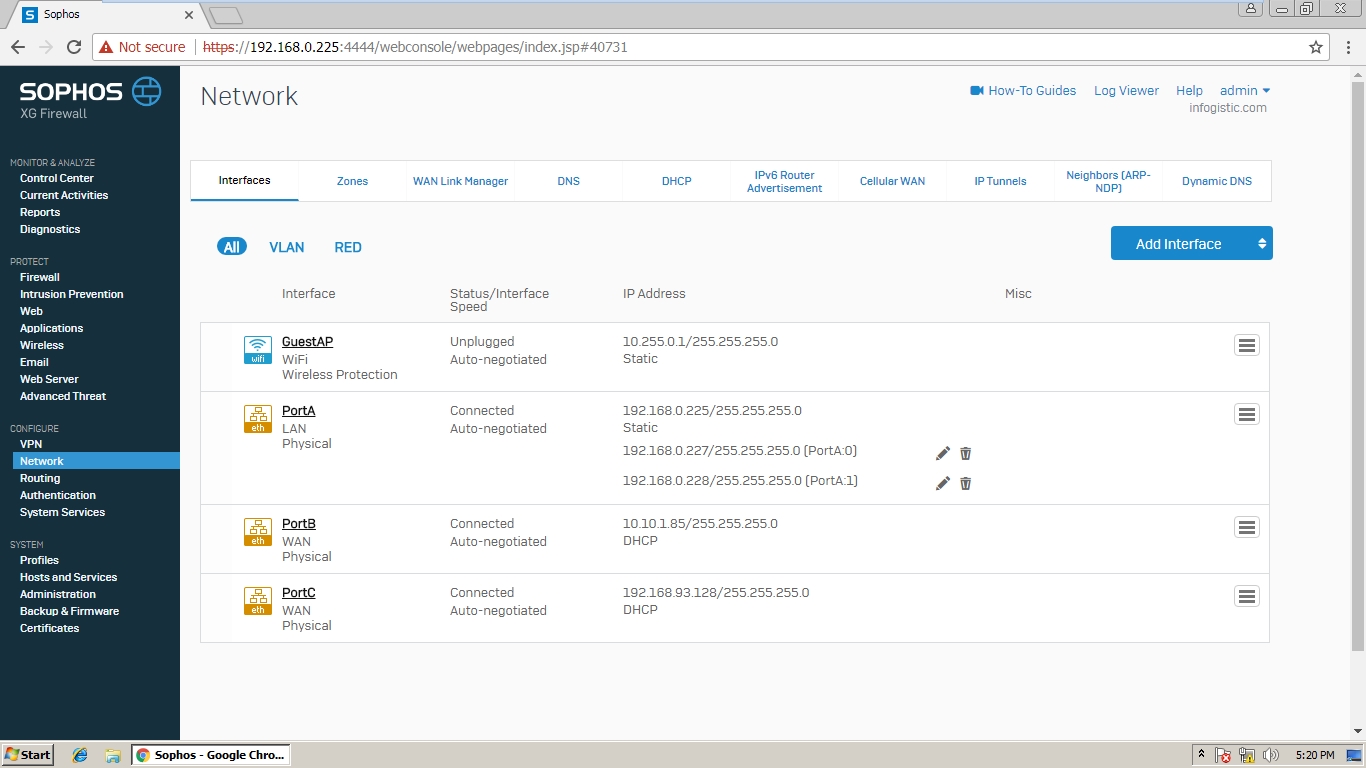

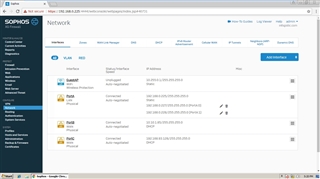

LAN1: (Physical interface) 192.168.0.225

LAN1:0 (Alias Virtual Interface) 192.168.0.227

LAN1:1 (Alias Virtual Interface) 192.168.0.228



ISP1: (Configured on Physical interface)

ISP2: (Configured on Physical interface)

ISP3: (Configured on Physical interface)

What I want:



LAN1: (Physical interface) 192.168.0.225 Traffic go from this interface ISP1: (Configured on Physical interface)

LAN1:0 (Alias Virtual Interface) 192.168.0.227 Traffic go from this interface ISP2: (Configured on Physical interface)

LAN1:1 (Alias Virtual Interface) 192.168.0.228 Traffic go from this interface ISP3: (Configured on Physical interface)

Explanation:

i want to route some users traffic from LAN1 to ISP1 ,LAN1:0 to ISP2, and LAN1:1 to ISP3. I tried almost anything but traffic didnot route through my desire interfaces.

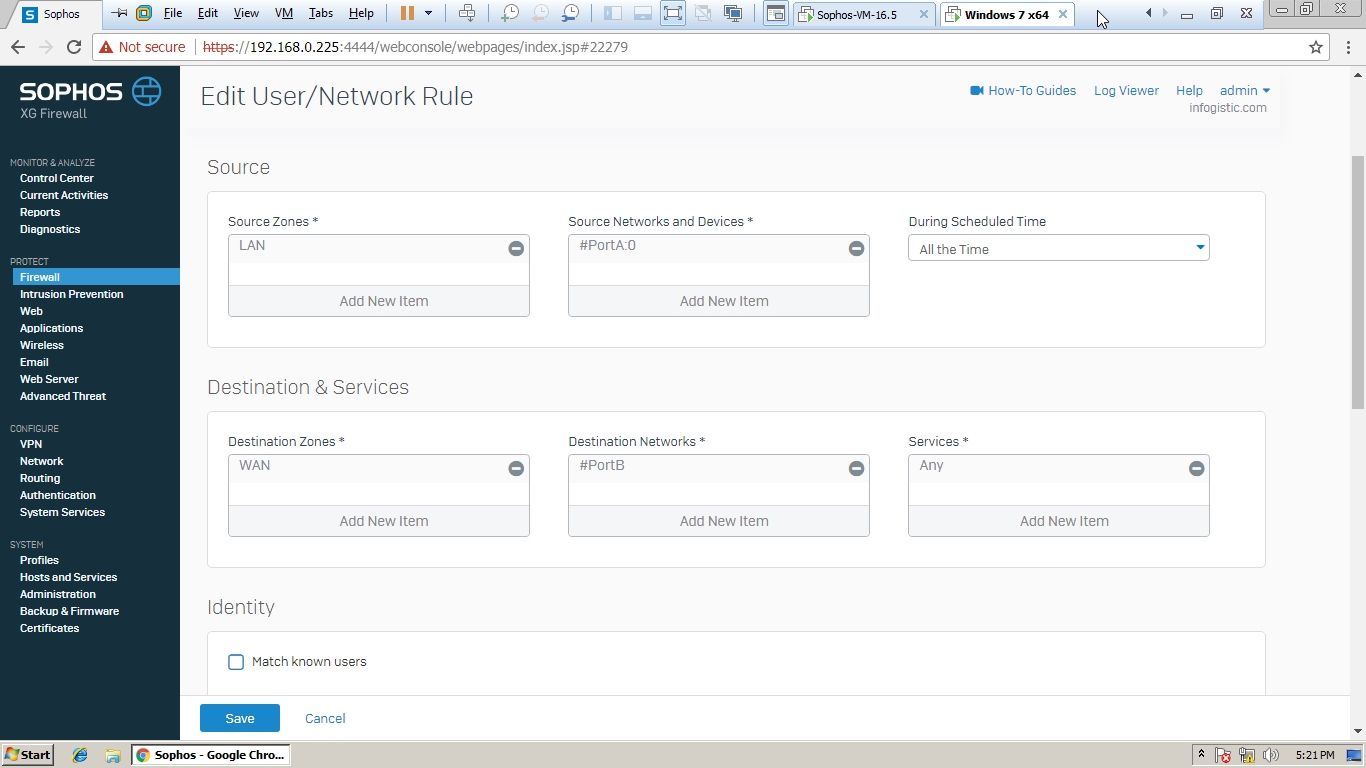

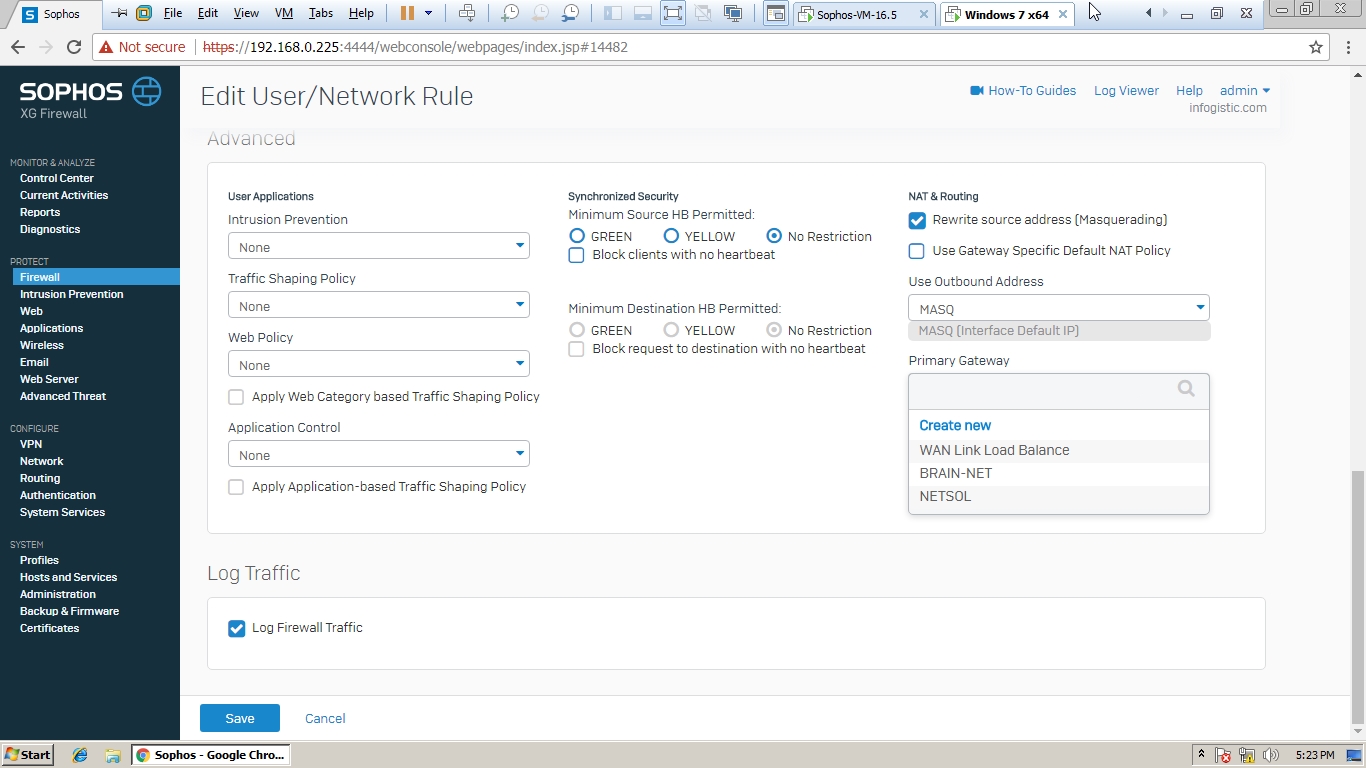

i am also going to attached my firewall configuration screenshots.Please view and suggest me some solution.



i am using Sophos XG-220 and firmware version 16.5
