Can't ping secondary WAN link from Internet.

John Henry Vindas Carballo

Hi all,

I have 2 WAN links, both are from different ISP.

One of them (GW-principal) it's working flawlessly, the sencond one (GW-secundario) was the backup link for the GW-principal.

We decide to change the link state from Backup to Active so we can use it to publish some other stuff.

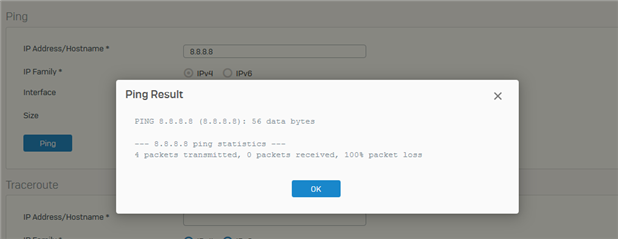

When I add the PortE2 to the WAN zone and configure the gateway, etc. I can ping the GW-secundario only from the firewall.

Everything seems to be ok but I don't know, maybe I'm missing something... Any advice would be appreciate it.

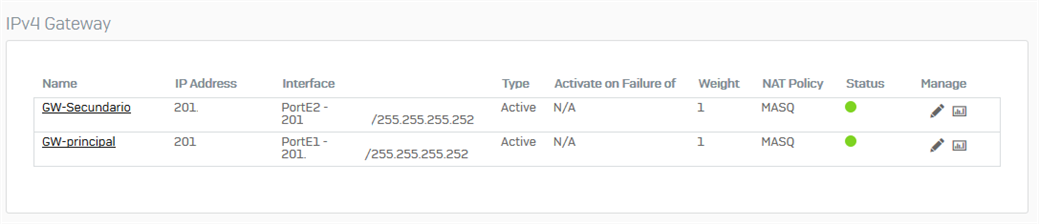

PortE1 = GW-principal

PortE2= GW-secundario

They're not in the same subnet.





EDIT: This is the 'tcpdump interface PortE2' log I just did.

Fullscreen 7360.munisc.log Download
=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2017.09.12 12:08:25 =~=~=~=~=~=~=~=~=~=~=~=


Password:

Sophos Firmware Version SFOS 16.05.5 MR-5

Main Menu

    1.  Network  Configuration
    2.  System   Configuration
    3.  Route    Configuration
    4.  Device Console
    5.  Device Management
    6.  VPN Management
    7.  Shutdown/Reboot Device
    0.  Exit

    Select Menu Number [0-7]: 4
Sophos Firmware Version SFOS 16.05.5 MR-5

console> tcpdump interface PortE2
tcpdump: Starting Packet Dump
12:06:48.207330 PortE2, OUT: IP 201. > 201.: ICMP echo request, id 2, seq 1, length 192
12:06:48.207832 PortE2, IN: IP 201. > 201.: ICMP echo reply, id 2, seq 1, length 192
12:06:48.207872 PortE2, OUT: IP 201. > 201.: ICMP echo request, id 2, seq 2, length 192
12:06:48.208315 PortE2, IN: IP 201. > 201.: ICMP echo reply, id 2, seq 2, length 192
12:06:53.205460 PortE2, IN: ARP, Request who-has 201. tell 201., length 46
12:06:53.205469 PortE2, OUT: ARP, Reply 201. is-at 00:1a:2c:61:2f:c8, length 28
12:07:48.223341 PortE2, OUT: IP 201. > 201.: ICMP echo request, id 2, seq 1, length 192
12:07:48.223827 PortE2, IN: IP 201. > 201.: ICMP echo reply, id 2, seq 1, length 192
12:07:48.223870 PortE2, OUT: IP 201. > 201.: ICMP echo request, id 2, seq 2, length 192
12:07:48.224323 PortE2, IN: IP 201. > 201.: ICMP echo reply, id 2, seq 2, length 192
12:07:53.220613 PortE2, IN: ARP, Request who-has 201. tell 201., length 46
12:07:53.220623 PortE2, OUT: ARP, Reply 201. is-at 00:8a:8b:51:4f:c4, length 28
12 packets captured
12 packets received by filter
0 packets dropped by kernel
console>

Thanks.
