Can't login with windows user to user portal

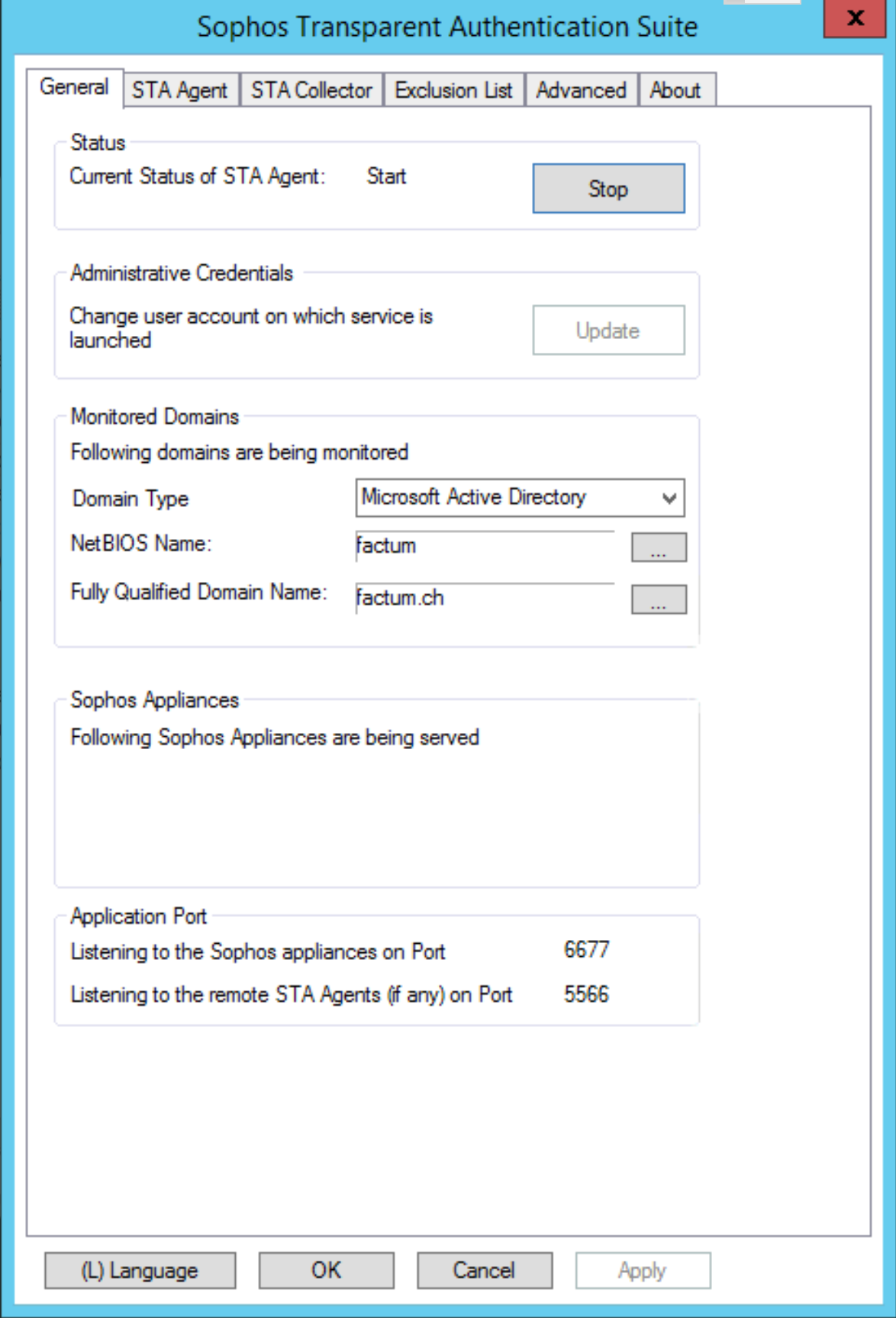

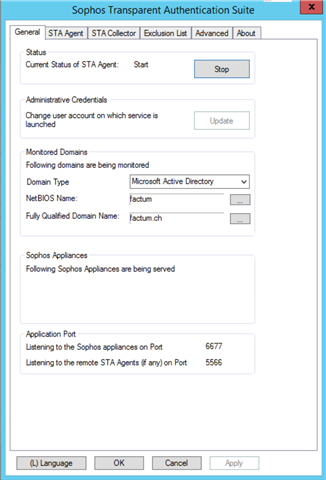

I noticed that on the General Tab the part with the Sophos Applicance served is empty. Might that be the reason here? Does anyone have an idea what the cause could be for that?

Nino,

check all the required steps:

https://community.sophos.com/kb/en-us/123156

https://community.sophos.com/kb/en-us/123155

https://community.sophos.com/kb/en-us/123158

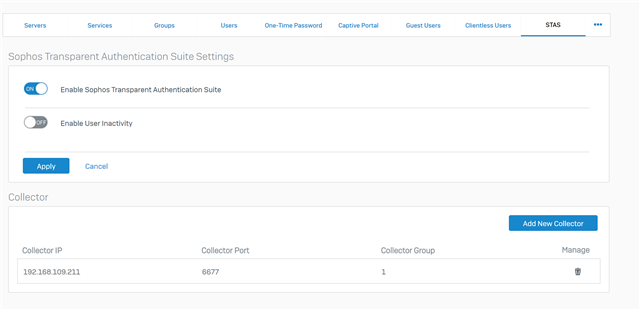

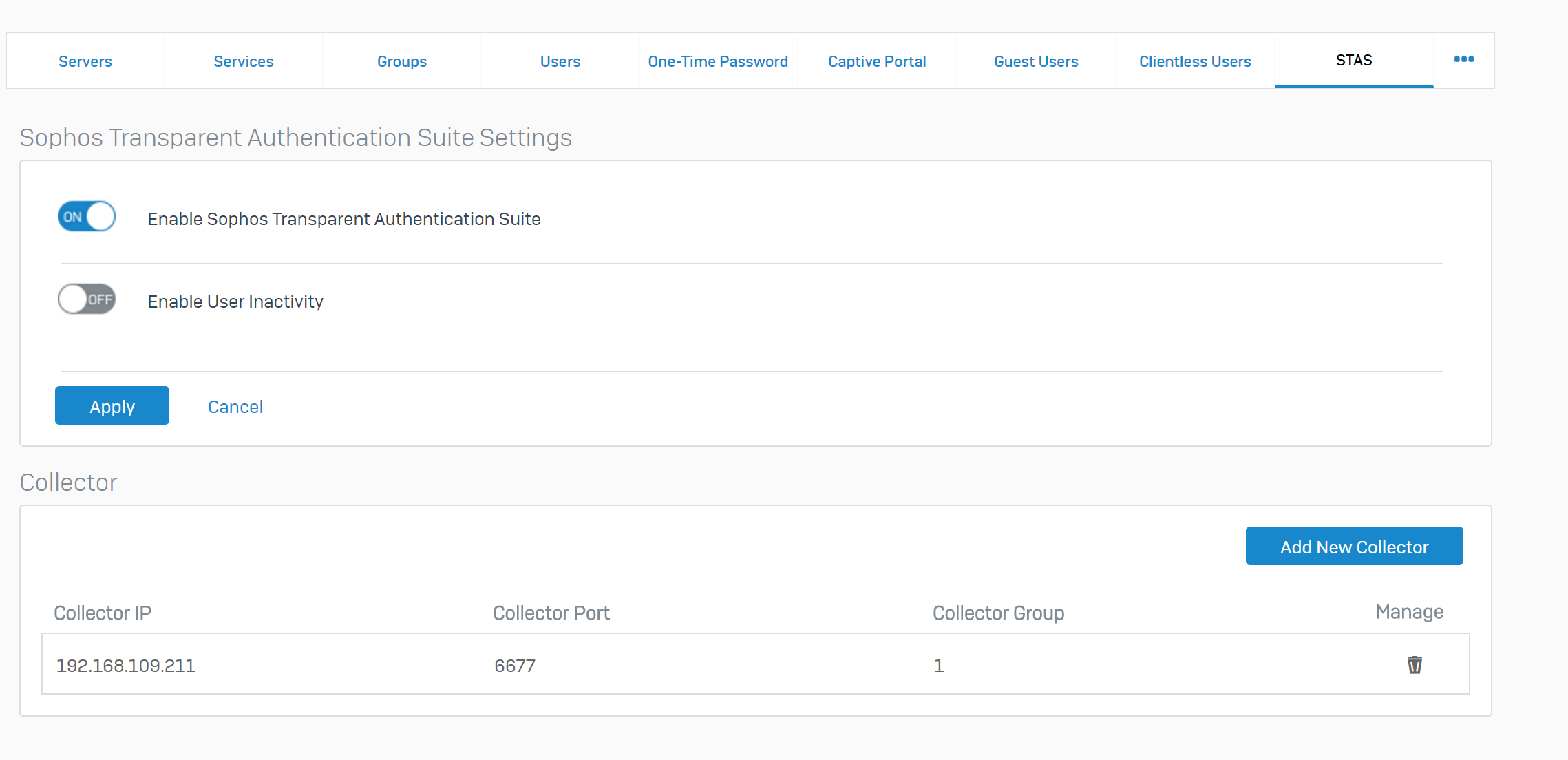

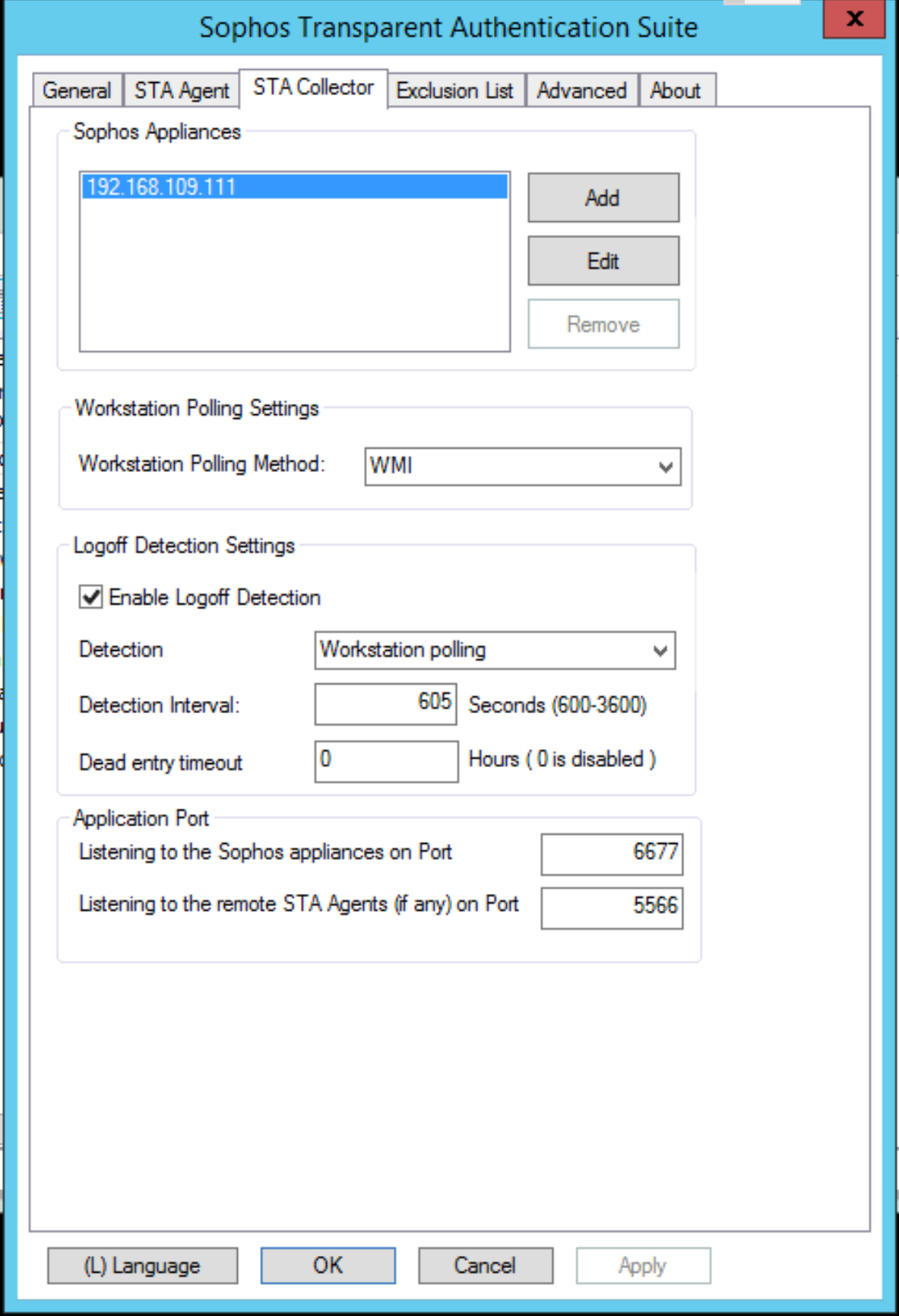

STA collector TAB : XG internal IP

From console:

system auth cta show
  CTA Status          : enable
  CTA Collector          : enable
  Unauth-Traffic Drop Time: 120 sec
  ============================================================
  Collector IP       : Collector Port       : Collector Group
  ------------------------------------------------------------
    DCIP             : 6677                 :         1
  =========================================
  VPN Source Network : VPN Source Netmask
  -----------------------------------------
       -         :       -
Regards

"Playing with gpo is always a big mistake with non Microsoft System Admin."

As far as I can see I have done all the steps.

Also the output on my XG115 looks identically to yours:

Nino,

Make sure firewall ports are open on active directory server from XG. Check port 6677 with tcpdump from XG.

Create a user firewall rule where ad users are added and test if into XG live users the counter increments.

Regards

ah dammed, the windows firewall was the issue that no appliance was shown.. Now my XG115 is shown correctly.

Also I removed the AD Server and added it again. Now that one works aswell. Thanks for your help everyone!
