RED site to site (XG 135 to XG 330) with FULL tunnel

Daniel,

can you check my recap from this thread?

https://community.sophos.com/products/xg-firewall/f/network-and-routing/82891/red-xg-client-to-xg-server-do-i-need-routing/311221#311221

Thanks

Luk,

Thank you for the assist.

I have my set up configured that way.

I can:

ping the Client XG from the Server network.

ping nodes on the Server XG from the Client network.

Trace route to nodes on the Server XG network thru the tunnel.

I cannot:

ping nodes on the Client XG network from the Server XG network.

Trace Route to nodes outside the Server XG network thru the tunnel.  The route is not thru the tunnel.

What I am looking for is setting up the XG 135 to be like a RED 10/15/50 with the Operation Mode of "Standard/Unified" so that all traffic is routed thru the tunnel, not just networks specified in the "Static Routing" list.  And be able to communicate with the Client XG network from the Server XG network.

Thanks,

Daniel

Daniel,

did you try to add the 0.0.0.0/0.0.0.0 static route on the XG acting as Client? I am not sure XG will allow to add this route.

sachingurung, Aditya Patel is the configuration Daniel is asking for achievable?

Thanks

Luk,

Yes I tried that and that breaks the connection.

Pings to 192.168.30.10 (RED Server XG) & xxx.yyy.151.99 (node on Server XG) fail.

Thanks,

Daniel

Hi Luk,

I have the same issue.

After add the static route 0.0.0.0/0 on client site XG,

I can go out through Server site with RED tunnel.

But it just works few seconds, and then the 0.0.0.0/0 static route broken the RED tunnel, client site user can't go to anywhere...

I already open a case ID:7799882, hope support team can help me to verify if it possible to set the RED full tunnel on XG.

Shunze

Instead of setting a 0.0.0.0 route, why not create a gateway for the RED interface.

Then you can simply write a rule to force all traffic destined for WAN zone out that gateway.  I use XG appliances at branches in this manner to force all traffic out the central firewall (similar to a RED std/unified).

Daniel,

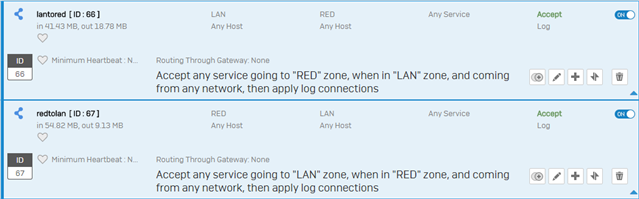

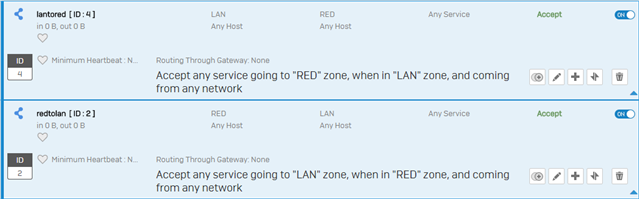

What do your routes looks like?  The concept is pretty simple in that we setup our zones, RED interfaces, firewall rules, and routes.  If traffic isn't flowing in one direction or the other, it's usually from a route or firewall rule.

Thanks,

John

Hi John,

After create a policy route to replace 0.0.0.0/0 static route, it works~

Thank you~

Hi John,

After create a policy route to replace 0.0.0.0/0 static route, it works~

Thank you~
