SSL VPN can't reach any device on LAN.I know it's has been discussed a lott, but I can't figure out what wrong. Please help.

Question

Hello,

 I installed the sophos XG 125 a few days ago. So far everyting works fine except I can't get access to any device on the LAN via SSL VPN. I have been reading through a lott of topics, done all the youtube tutorials. My configuration seems just fine. I can't ping my server on 10.20.3.181 from a VPN connected client that has been assigned a IP of 10.81.234.6.
 The VPN client connects just fine also using internet through the VPN is working when in full tunnel mode.

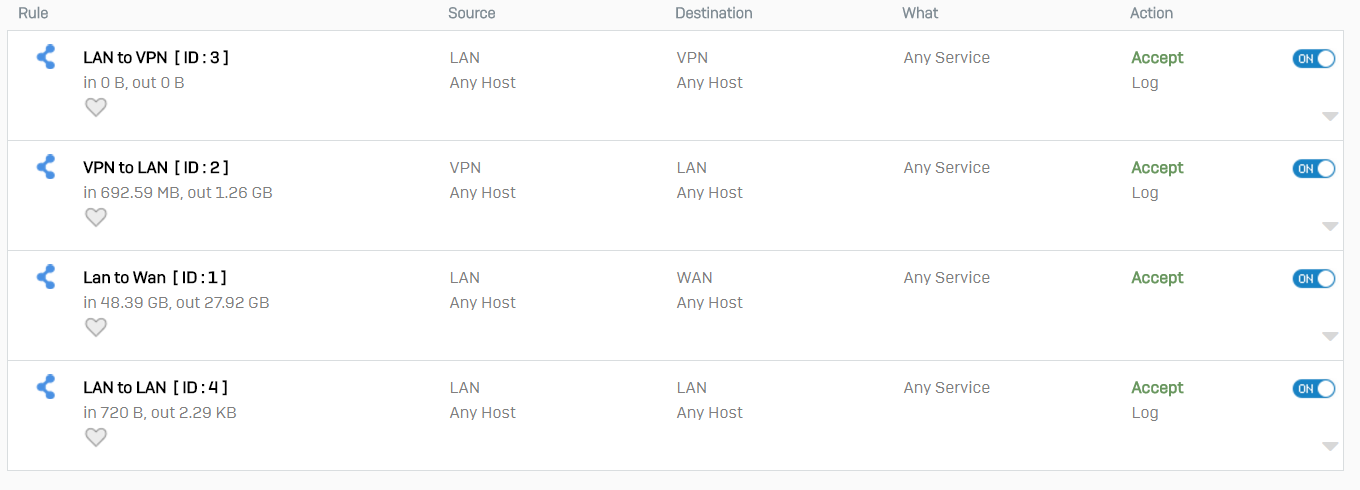

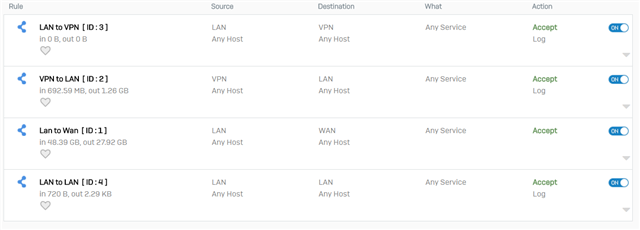

 I have added all the needed firewall rules:
 - LAN to LAN
 - VPN to LAN
 - LAN to VPN
 - LAN to WAN

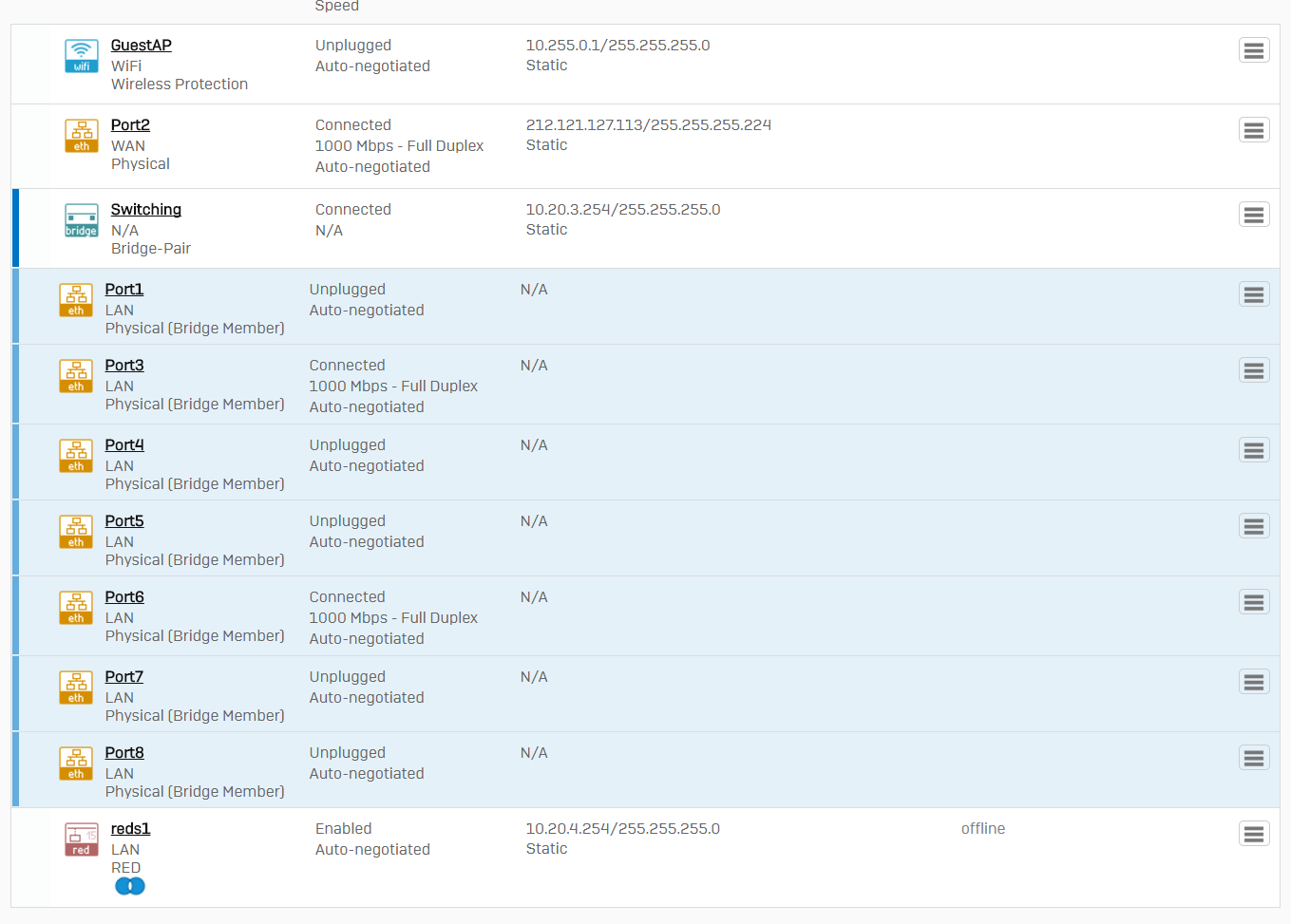

 I have bridged the all the ports except the port 2 used for WAN:

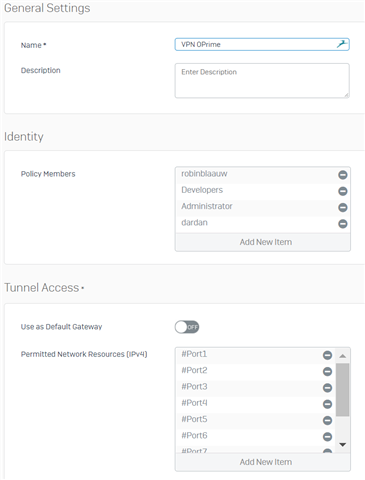

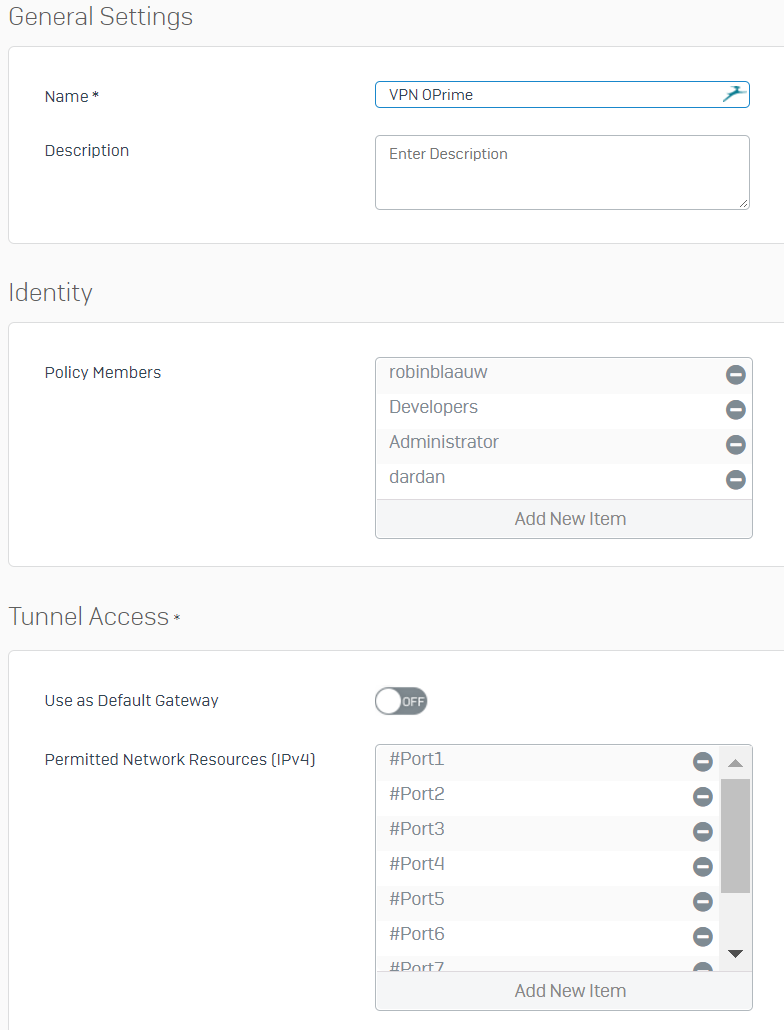

 My SSL VPN connection, adding all interfaces to the permitted network resources, also the bridge called "switching":

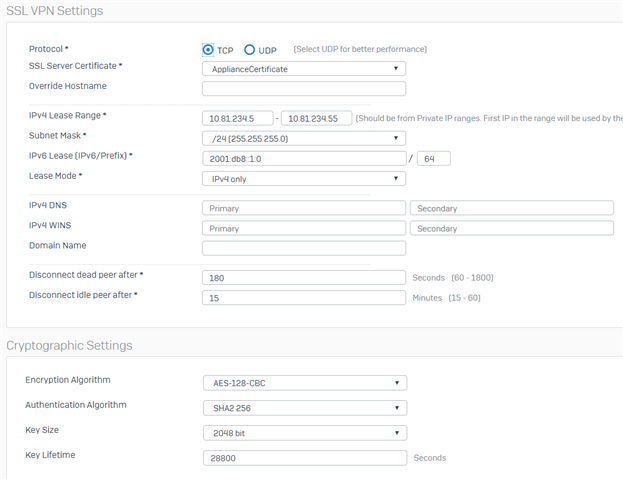

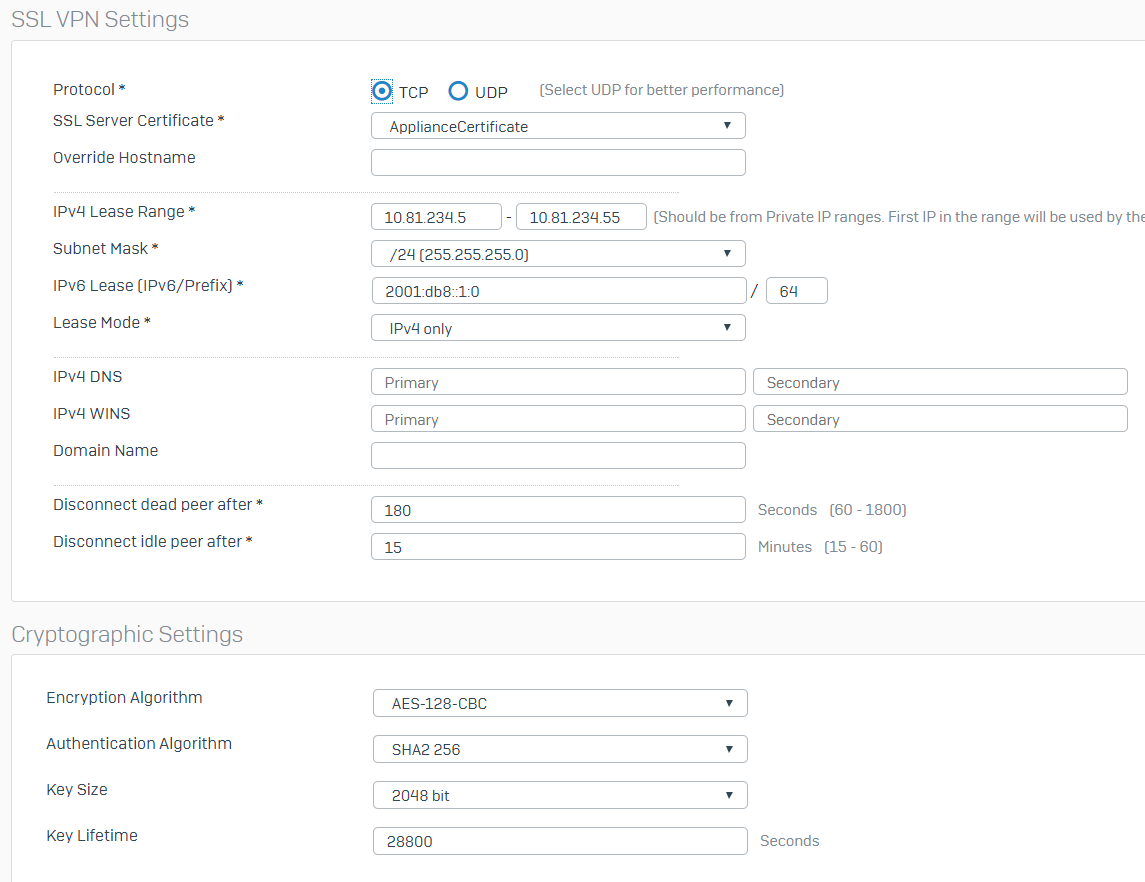

My VPN settings:

any help would be more than welcome.

Robin Blaauw · Accepted Answer

Got the solution with a little help from some one that should be on holiday ;)

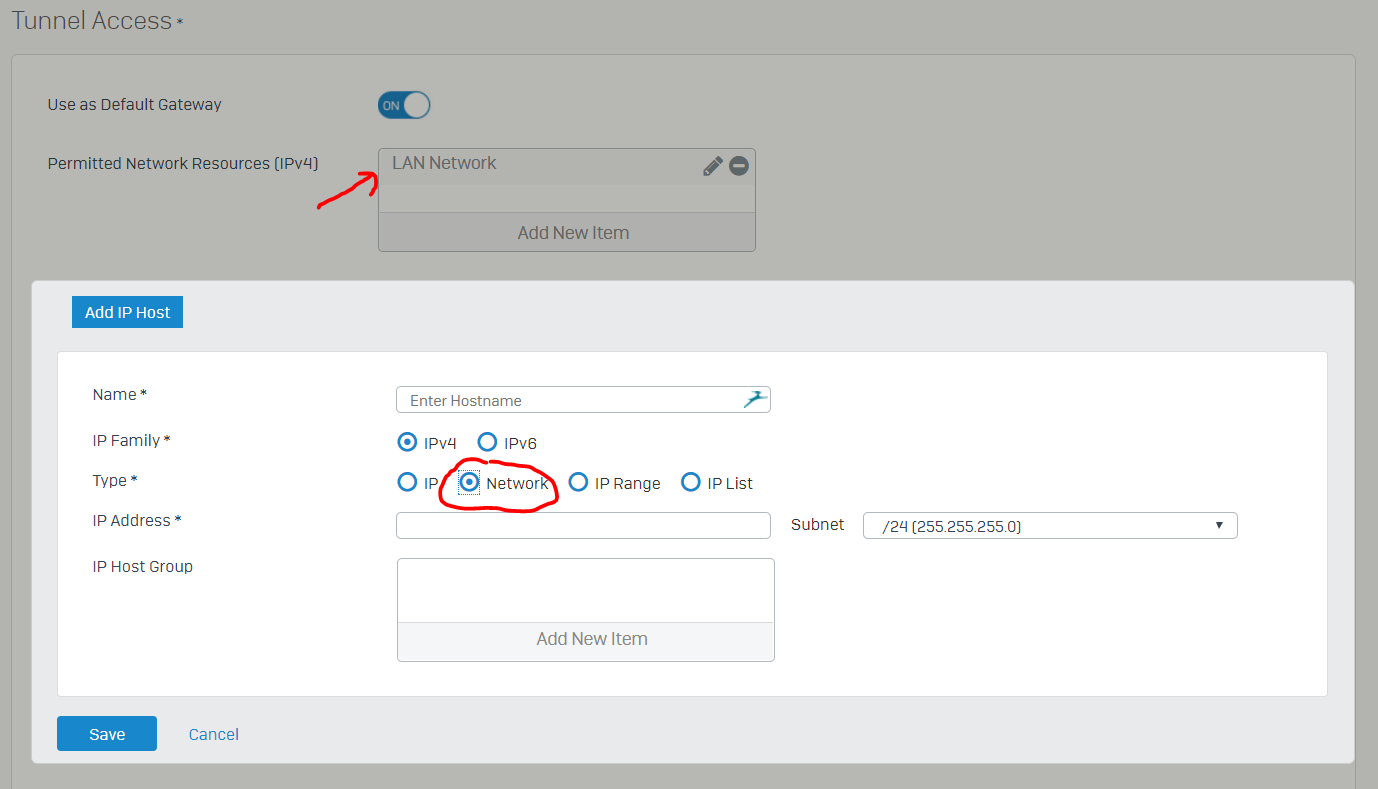

 The problem for me was that I added the interfaces(port1,port3 etc) for allowed resources. What worked for me was that I added IP network and subnet !

There is also a bug. Adding an IP range won't work, it will show you a green message it was added but it will not add it to the permitted resources.

sachingurung · Answer

Hi Robin,
 Two quick checks:

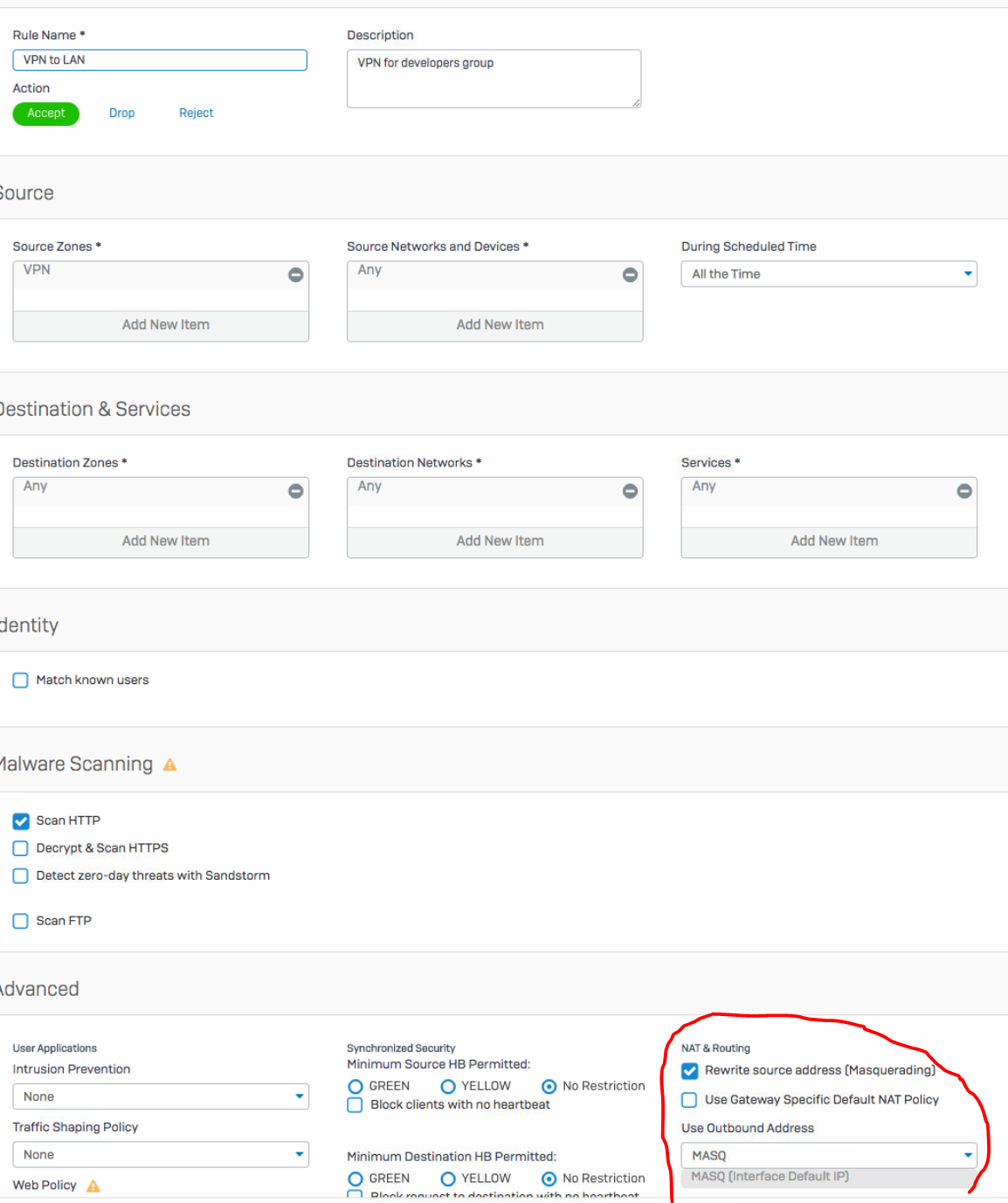

 1. VPN to LAN rule, MASQ enabled.

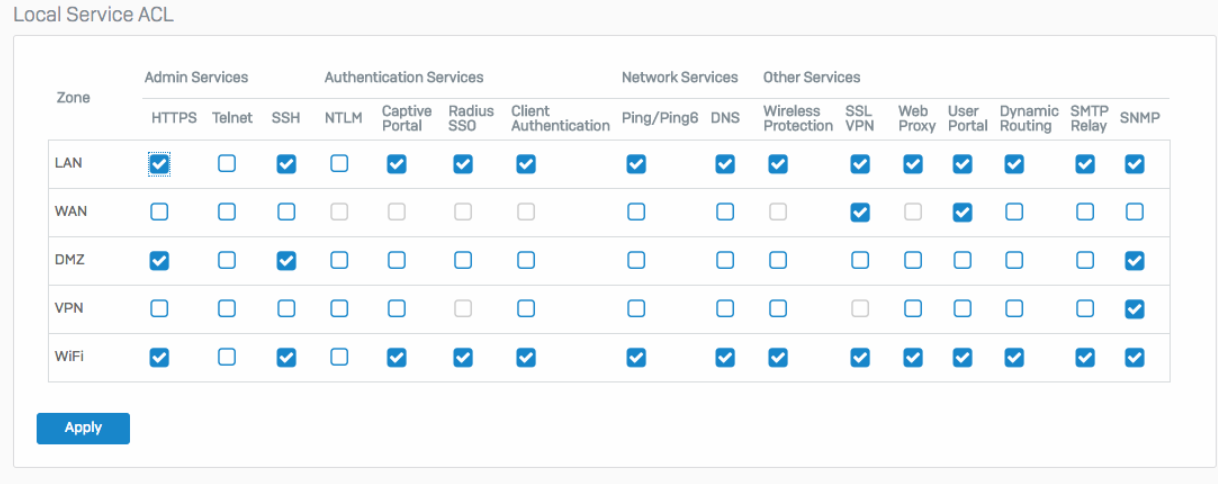

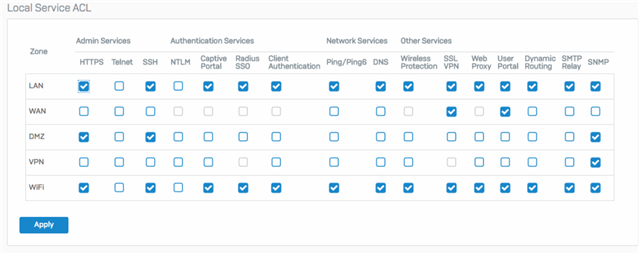

 2. Allow access to SSL VPN on the LAN zone from Administration | Device access | LAN > SSL VPN.
 Any help?
