DNS not resolve while using captive portal

Amrish

Hello Sophos XG community,



This is my first post in XG community. I was using sophos ASG220 firewall since last 7 years but recently I switch to sophos XG firewall and after switching to XG firewall, issues were raises.

Currently I have a XG210 firewall with below configuration,

1. We have configure more than 25 VLANs

2. We have configure more than 100 users

3. All users are using internet via Captive Portal or Client Authentication Agent

4. Admin users and Super users's machine MAC's are bypass for internet so they can access Internet without Captive Portal



Problem:

If we use Internet without Captive Portal or Client Authentication Agent then Internet surfing (Internet speed) working fine as configured but If we use Internet with Captive Portal or Client Authentication Agent then Internet speed is too slow and It taking too much time to open for a single website.



What we have mark,

- If we use Internet without Captive Portal ( mean my network have no need to authenticate or my machine MAC is bypass from authenticate)  and try to ping global DNS (8.8.8.8) then response time is 15ms to 20ms.

- If we use Internet with Captive Portal and try to ping global DNS (8.8.8.8), then response time is more than 1500ms and it varies to 3000ms. I thought that because of this I suffer problem while surfing Internet.



Can anyone have any Idea to resolve this issue. My whole network and all users suffering problem because of this issue since last 20 days. Getting suggestion are appreciate.



This thread was automatically locked due to age.
  • 0

    Amrish,

    can you share the captive portal configuration?

    Can you show the rule wher the captive portal is configured?

    Are you using internal DNS on your computer or external DNS?

    What version of XG Firmware are you running?

    Thanks

  • 0

    Hi,

    MAC Binding is not supported with either Captive Portal or Agent authentication. You can check #4 in the guide here to verify if there are any dropped or error packets capture on the interface.

    Thanks

  • 0 in reply to lferrara

    Hello lferrara,

    Thanks for replying.

    My reply inline below

    lferrara said:

    Amrish,

    can you share the captive portal configuration?

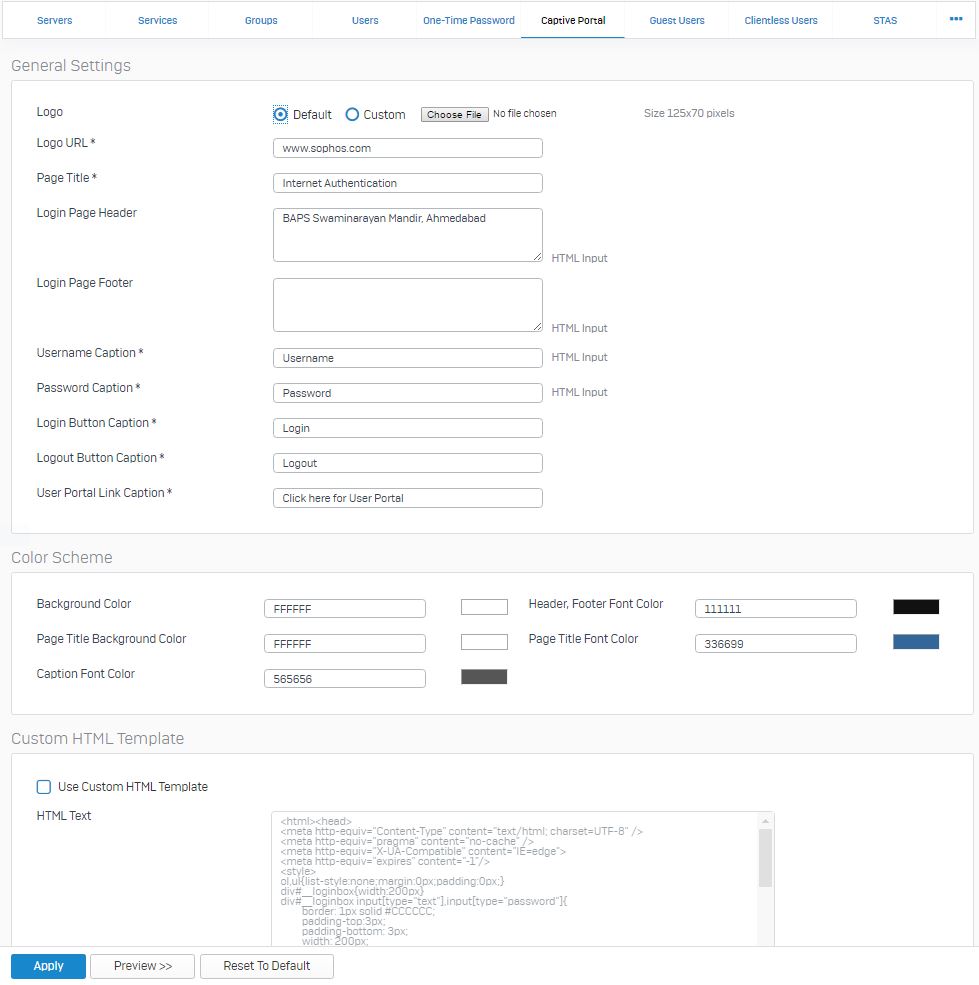

    Reply: Captive Portal config page is attached with this thread.





    Can you show the rule where the captive portal is configured?

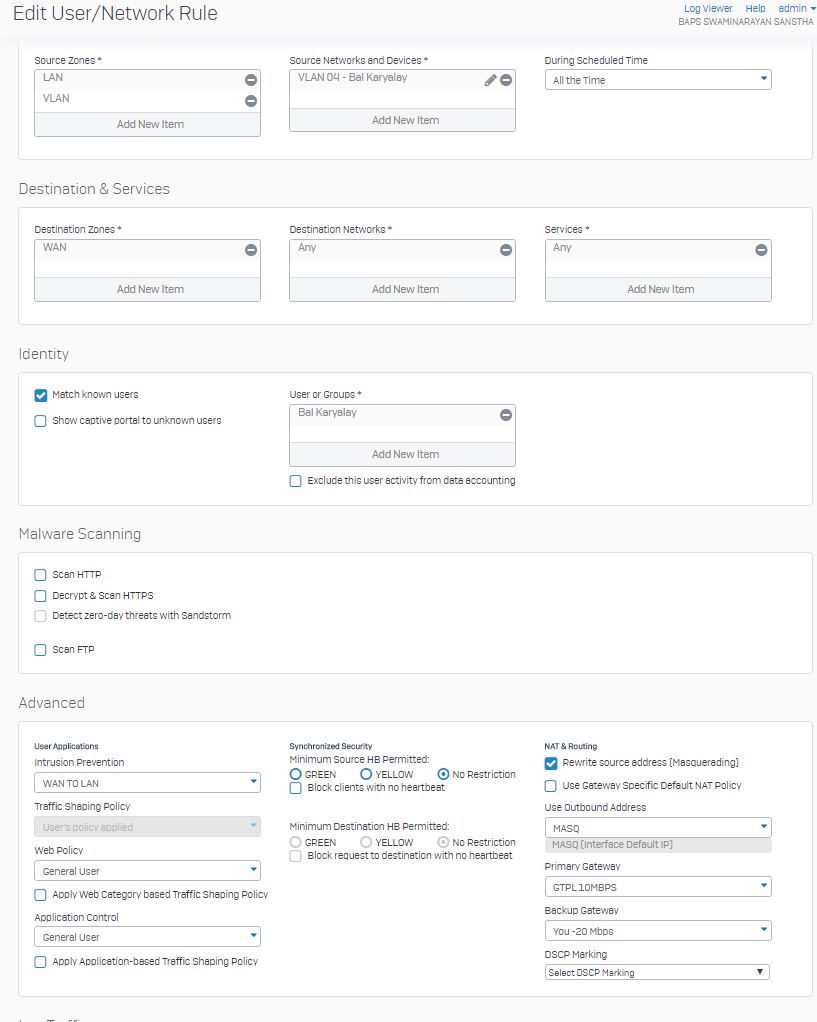

    Reply: My configuration as like below,

    - Source Zone: LAN, VLAN

    - Source Network: VLAN ID

    - Scheduled Time: All the time

    - Destination Zones: WAN

    - Destination Network: Any

    - Services: Any

    - Identity: Match known users

    - User and Group: Group of users what can access Internet within that VLAN

    - Intrusion Prevention: LAN to WAN

    - Traffic Shaping Policy: Users policy applied

     (Image also attached with this thread)

    [Addition things share: We have used same rules for the super user which MAC address binding for Internet. Only change is source network is 'Super users machine MAC address' and Identity for User and Group is disable for bypass captive portal]

    Are you using internal DNS on your computer or external DNS?

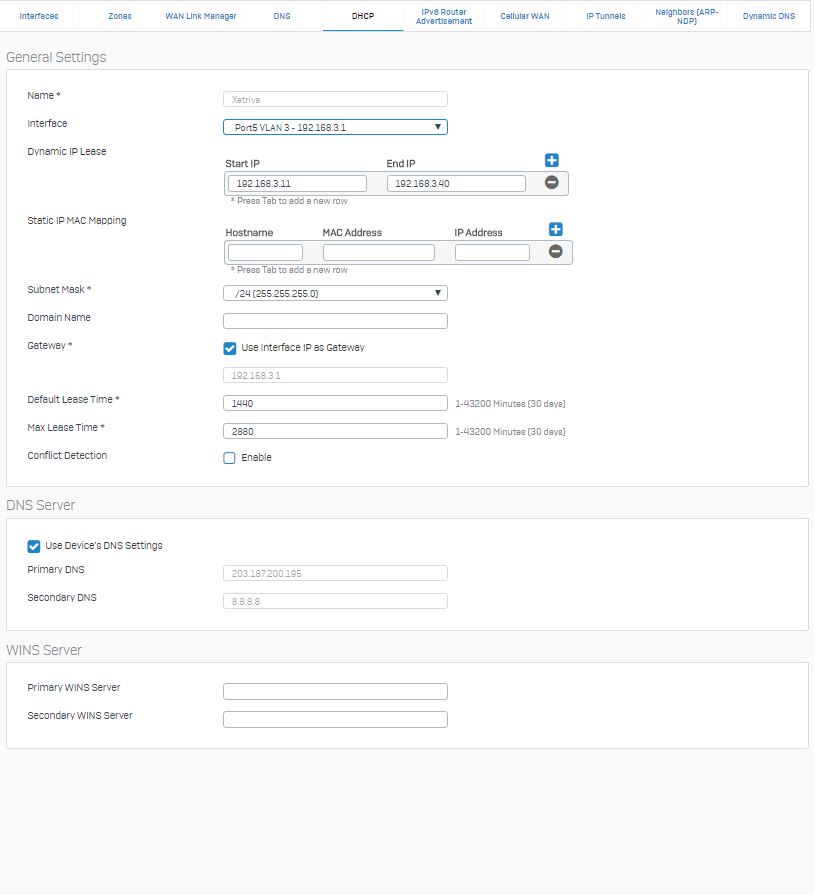

    Reply: We are using DNS which provide by our WAN ISP and we are also using global DNS. All VLANs having DHCP enable so any machine which connect within VLAN that can automatically get IP from DHCP pool. We are using device DNS for that. (Image attached with this thread)

    What version of XG Firmware are you running?

    Reply: We have a latest update XG firmware that is SFOS 16.05.3 MR-3

    Thanks



  • 0 in reply to sachingurung

    Hello Sachin,

    Thanks for response,

    As you said that is right and that is why we have a two rules, one for the captive portal users and other that MAC address binding for super users. Also we have checked that packets are dropped or error only when we using captive portal. If I bypass the MAC address for the same machine then Internet browsing working good and even packets are not dropped.

    That is why I finally confused and double on captive portal. Hope you can get my point.

  • 0 in reply to Amrish

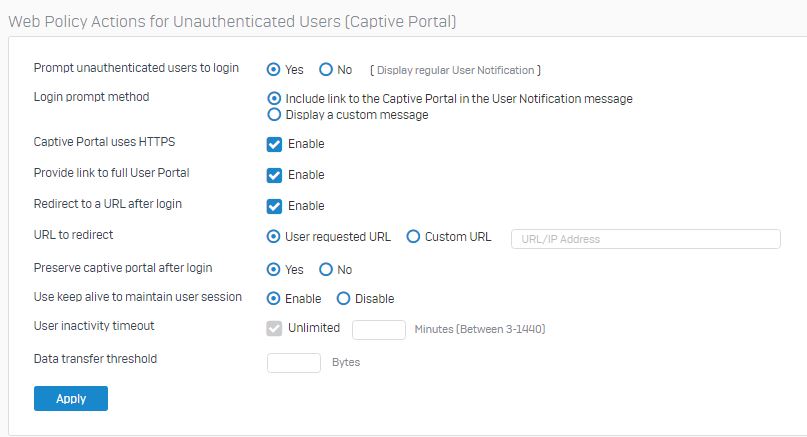

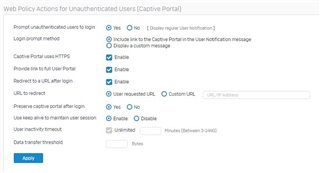

    Additional snap attached for Captive Portal setting

  • 0 in reply to Amrish

    Amrish,

    if you are using external DNS, make sure to create a top rule where you allow DNS service to all LAN resources.

    Regards

  • 0 in reply to lferrara

    Hello lferrara,

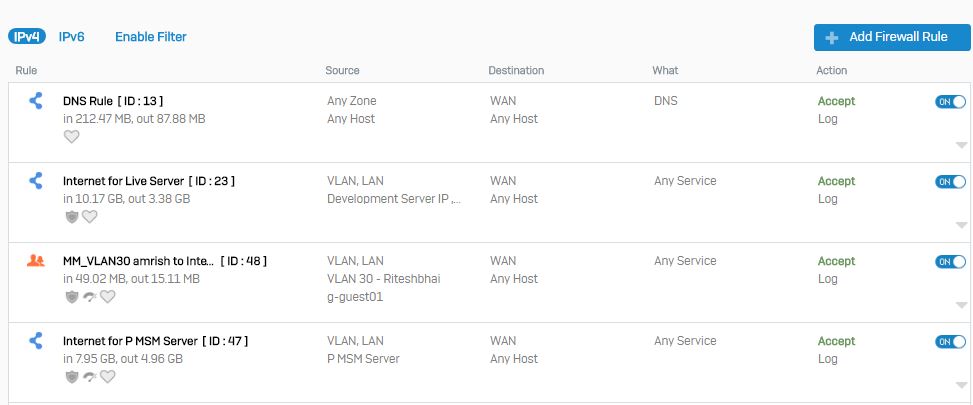

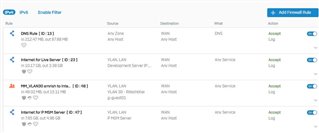

    Yes I know about that DNS rule and it's priority to level. That is why from the first day, I have set that DNS rule on top of the all firewall rules.

  • 0 in reply to Amrish

    Amrish,

    try this:

    On a computer that needs to be authenticated, set as DNS server the XG lan interface and see if the name resolution is still slow. If it works, try to change public DNS (I always advice to use internal DNS server or XG) or open a ticket with Support.

    Regards

  • 0 in reply to Amrish

    Hi Amrish,

    Could you verify the number of simultaneous users in your network, As per our recommendation for your model is between 60-80 as you are using FullGuard protection (WEB/Application/IPS/Email) .

    Also, Check the traffic through the WAN interface, it would seem you have 2 lines and both speeds seem different. Check on both ISP if there is a deviation on the speed. If the result is the same then check the Memory and CPU usage for any abnormality.

    I would also recommend removing IPS policy to test the performance as well.

  • 0 in reply to lferrara

    Hello lferrrara,

    Tried but not success.

    One thing I could not understand that If I use Internet without Captive Portal (mean MAC address is bypass or VLAN network have not required for authenticate) and even same machine, same VLAN and same IP address, then Internet browsing is working very fine and the same machine using internet with Captive Portal trouble to browsing Internet.

    Really strange.!![:(]
