Noob needs help! - Migrating from pfSense to XG - No internet on LAN

sparkytech

First of all, thanks for the patience. I am a complete noob on XG, and I am trying to migrate from pfSense to Sophos XG, and I have read the other posts on the forum. As others have stated, I have internet within XG, and can ping google, and other web hostnames, however on LAN, I cannot ping anything on the web. I setup a rule to pass "any to any" and have also unchecked the "Match users" checkbox. This is the only thing I have done so far in the configuration. What am I doing missing or doing wrong?

Thanks!



This thread was automatically locked due to age.
Parents
  • 0

    Please expand the rule so we can see what other features you have or have not enabled.

    Do have the NAT set in your rules?

  • 0 in reply to rfcat_vk

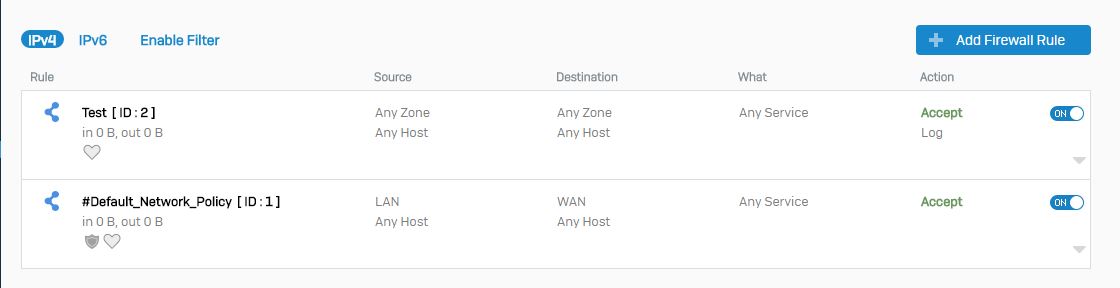

    Below are the details of the rule(s). I pretty much left everything at the default settings, until I understand what everything does:

  • 0 in reply to sparkytech

    Bryan,

    Traffic is not even hitting the firewall.

    Can you provide us more info about your configuration? Bridge, router mode? Are you computers using XG as default gateway (routing mide)?

    Thanks

  • 0 in reply to lferrara

    My configuration (for testing) is as follows:

    WAN (Comcast modem) <--> Sophos XG Port 2 -- Sophos XG Machine -- Sophos XG Port 1 <--> 4 port unmanaged switch <--> Laptop

    I have Sophos set in gateway mode. Sophos receives DHCP address from WAN, laptop receives a DHCP address from Sophos, and can access GUI. I noticed that too, that there is no traffic shown in the firewall rule. I can ping websites, and also send test emails from the firewall, so the WAN is working, at least up to the firewall. I read some other posts that WAN/LAN routing has to be setup... is this something I need to do? Please let me know if you need any other information.

    Thanks!

  • 0 in reply to sparkytech

    In the firewall rule, I see "Primary Gateway = None" .  Select a gateway interface and see if that helps.

  • 0 in reply to DavidWilliams1

    I set the primary gateway to Port 2- still no internet... BUT... it got me thinking. I set my laptop to a static IP, and have internet. I feel dumb for admitting this, but I looked in the firewall DHCP settings, and I didn't have a DHCP server setup. The reason behind this is a long story, but the moral of this story is: Don't try to configure a firewall while fighting a cold and in a NyQuil haze.

    Thanks to all for the help!

  • 0 in reply to sparkytech

    another random data point for anyone who lands here - on my pfsense box the LAN and WAN ports are the opposite way around from the default XG assumes.

    I.E WAN is port 1 and LAN is port 2 - i eventually worked out to swap my cables or swap the zones on the ports ;-0
