Port 4 wireless with DHCP

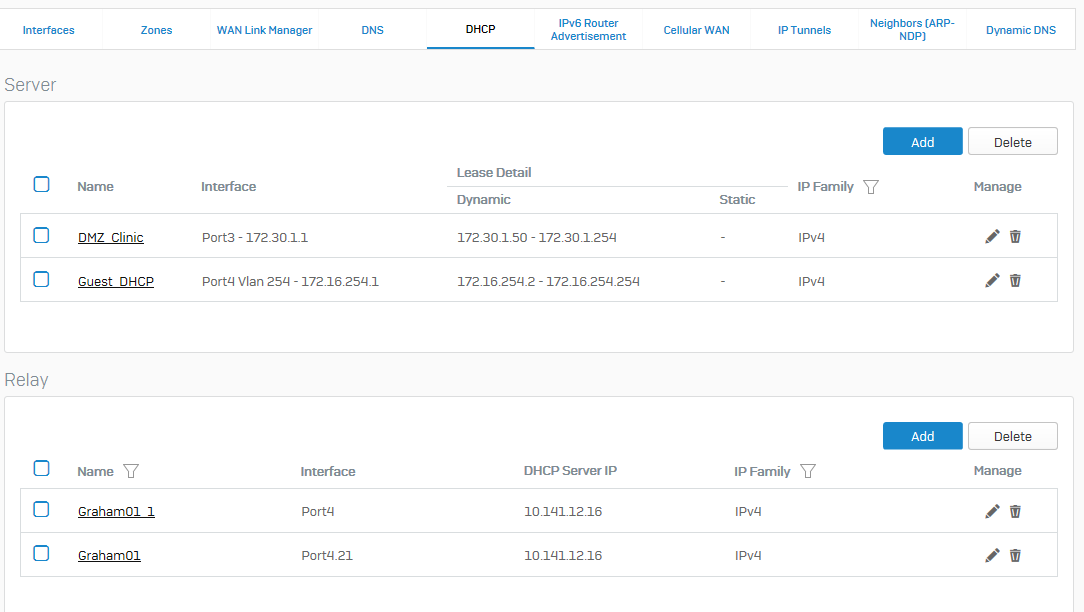

Here is a screenshot...

DHCP relay is the right settings. Your configuration does not work?

Thanks

The wifi clients need to be using 10.141.21.1 as the gateway, unless it doesn't matter when configuring the dhcp relay on the XG.

I was worried about the NAT Subnet not working and didn't verify whether having 10.141.21.1 as the gateway instead of 10.141.12.1 made any difference.

BRO,

if you configure DHCP relay, the dhcp settings are released and controlled by the DHCP servers and not by the XG itself.

So you have to make sure to configure proper gateway by your DHCP Servers.

Thanks

Ok cool,  DHCP is working now with the old firewall so I should be in business there.  I just got confused with the network cards showing it connected to my 10.141.12.16 dhcp server but showed the gateway of 10.141.21.1
