Port forward - Sophos XG 210 - firmware SFOS 16.01.2

Sascha Papini over 8 years ago

Hi all, I need to forward one TCP port (580) to one server in my DMZ (server A). I have a XG210 with /29 in WAN link:

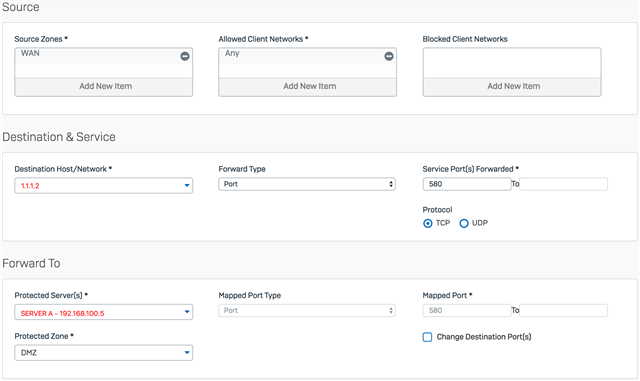

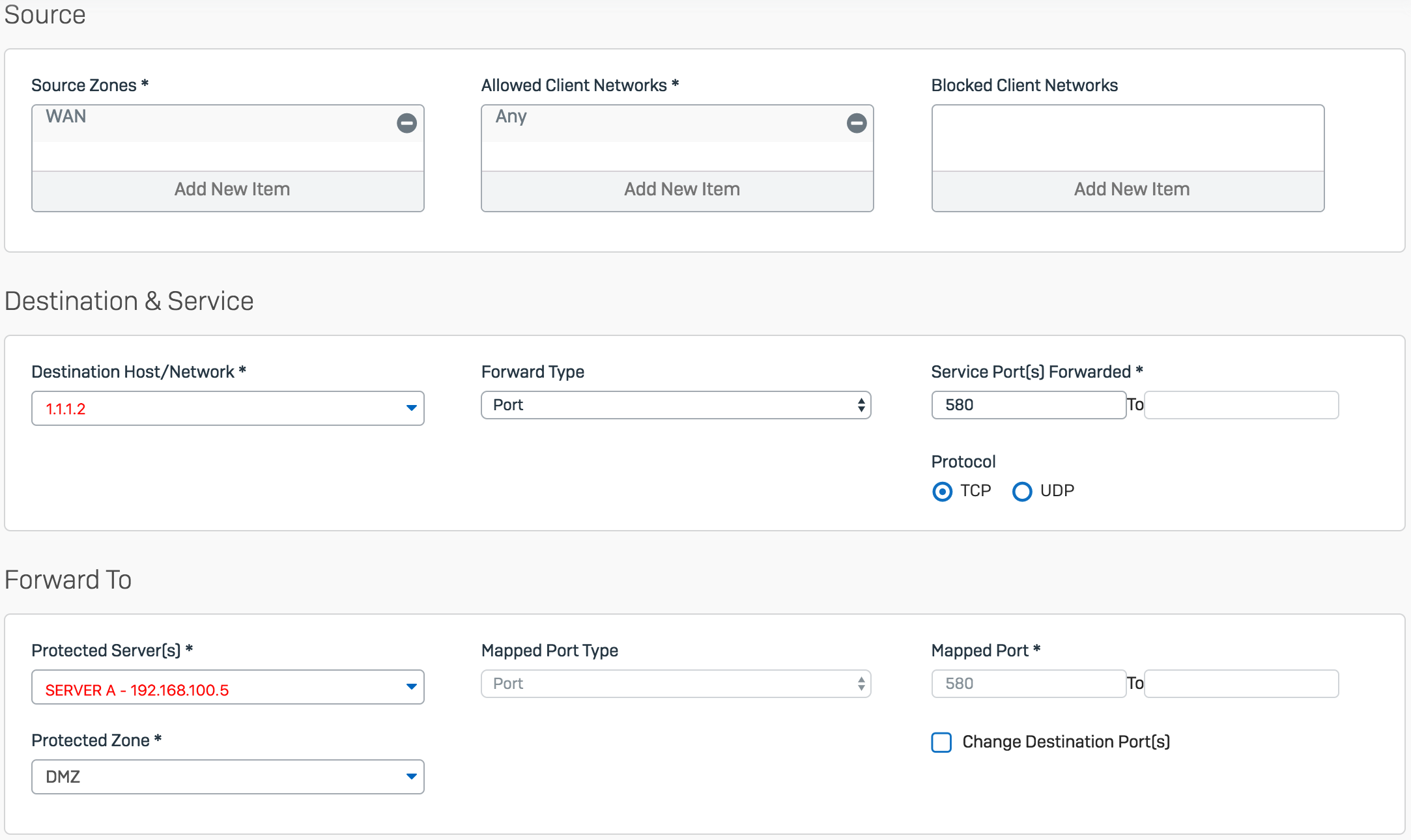

I configure new business application with type DNAT/Full NAT

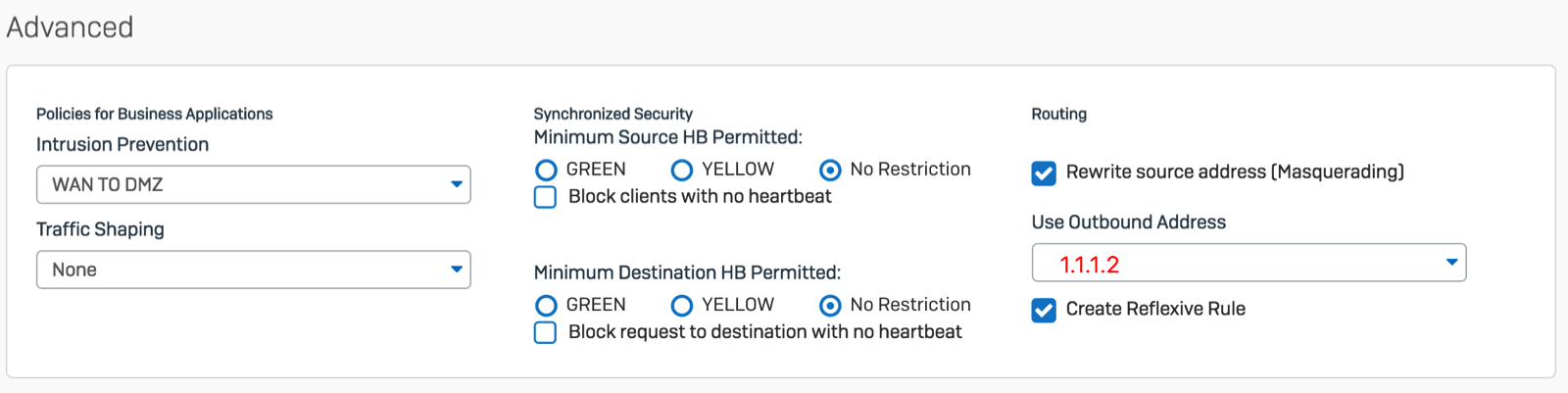

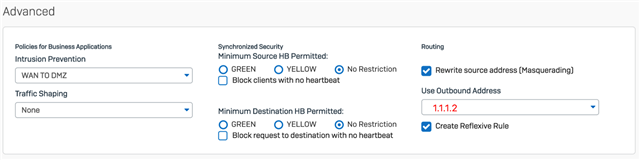

I flag the "Rewrite source address (Masquerading)" and "Create Reflexive Rule", it's correct ?

I need to create another network rule for NAT all outbound traffic of my server A with public IP (1.1.1.2) ?

Thank's Sascha

This thread was automatically locked due to age.

Parents

0 lferrara over 8 years ago

Correct! You can uncheck reflexive rule checkbox.
Cancel
Vote Up 0 Vote Down

Cancel
0 Sascha Papini over 8 years ago in reply to lferrara

Hi lferrara, thank's for reply :)

I remove the flag on "Create Reflexive Rule", but I need to create another network rule for NAT all outbound traffic of my server A with public IP (1.1.1.2) ?

The server A can generate traffic to port 580 and I want the new connection to another server on internet have a source ip 1.1.1.2

ps- when I check "Create Reflexive Rule" ?

Thank's Sascha
Cancel
Vote Up 0 Vote Down

Cancel
0 lferrara over 8 years ago in reply to Sascha Papini

Reflexive rule creates a rule exactly the dnat but the source and destination are inverted. If you only need port 580, it is ok. I always prefer to create it manually.

Regards
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 lferrara over 8 years ago in reply to Sascha Papini

Reflexive rule creates a rule exactly the dnat but the source and destination are inverted. If you only need port 580, it is ok. I always prefer to create it manually.

Regards
