High bandwith consumption in bridge mode and high latency

HI JoseCasanova,

If the updates are the cause of your issue , We do have an option to manage the updates .

Pattern updates are updated automatically by default. Various patterns for different models like Sophos AV, IPS, WAF, and ATP can be updated. The page also allows you to update patterns or schedule how often it will auto-update.

You can update patterns:

• Manually
• Automatically

Update Patterns Automatically

To update patterns automatically, navigate to System > Administration > Updates and enable Auto Update in Pattern Download/Installation section. You can schedule how often you want to receive updates. The parameters can be set as shown in the image below.

Update Patterns Manually

When you wish to update the Database/signatures and also AV then you may select UPDATE PATTERN NOW .

Taken from KB article 123277

Hope this would resolve your issue

Thanks and Regards

Aditya Patel | Network and Security Engineer.

Hi Jose,

That is strange, do you see any dropped or error packets on the interface?

Take SSH to XG and go to option 4. Device console.

Execute, show network interfaces. Post the output.

Thanks

Thanks Aditya and Sachin for your answers.

The updates I was referring are windows updates and other high consumption bandwidth apps (in the LAN side).

Sachin, the output of the command shows:

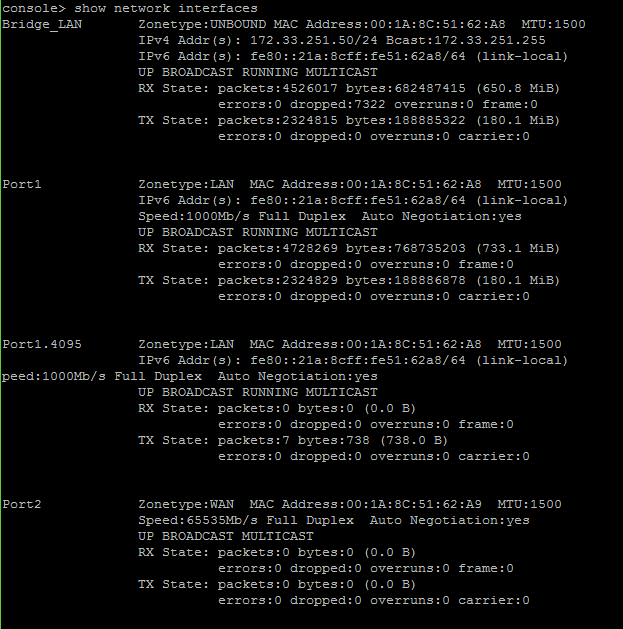

As you can see, there is dropped packages on the Bridge interface. Today we are going to configure the physical interfaces from autonegotiation to 1000 Mbps Full Duplex, in the Sophos XG and in the Cisco ASA, and Switch Core.

Do you have any other recomendation that I could applied?

Thanks again for all your help.

Regards,

Jose

Hi Jose,

When you capture dropped packets on a physical interface, you must check the physical connectivity between the two ends; here, physical cables. Replace the cables with a fresh one and verify if the drops increase.

Thanks

Hi Sachin,

thanks again for your answer. However, I checked the patch cords, which were freshly opened for the deployment. Besides, this client has two branches with same configuration, and in both locations are experience the same issue.

let me know if there is another workaround.

Regards,

Jose

Hi Jose,

If the Bandwidth utilization is high due to Windows Update , I would recommend you to apply QOS on application "BITS" under application filter and Enable QOS for Application filtering on the Firewall rules. Also the value you insert is in KB so 128KBPS=1mbps bandwidth.

This would enable te updates to pass through  XG appliance with Specified Bandwidth so it would not hamper your network when all systems updates simultaneously.

Thanks and Regards

Aditya Patel

Jose,

make sure to configure Speed on both Switch and XG side. Also can you share output from the following commands:

netstat -s

ethtool -S "portname"

You should execute these commands from CLI > Option 5 > Option 3

Thanks

Hi Luk,

thanks for your reply. The Sophos XG is only connected to the LAN port of the bridge, and is not handling any traffic, so I hope this commands shows historic events:

netstat -s output:

XG210_WP02_SFOS 15.01.0 MR-3# netstat -s
Ip:
0 total packets received
0 forwarded
0 incoming packets discarded
3936584 incoming packets delivered
5784012 requests sent out
100 dropped because of missing route
560 reassemblies required
280 packets reassembled ok
Icmp:
24566 ICMP messages received
199 input ICMP message failed.
InCsumErrors: 0
ICMP input histogram:
destination unreachable: 6282
timeout in transit: 2
echo requests: 1400
echo replies: 16882
24493 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
destination unreachable: 6188
echo request: 16905
echo replies: 1400
IcmpMsg:
InType0: 16882
InType3: 6282
InType8: 1400
InType11: 2
OutType0: 1400
OutType3: 6188
OutType8: 16905
Tcp:
101521 active connections openings
84699 passive connection openings
382 failed connection attempts
1074 connection resets received
201 connections established
2172208 segments received
2196522 segments send out
12106 segments retransmited
6 bad segments received.
24868 resets sent
InCsumErrors: 0
Udp:
1696223 packets received
5563 packets to unknown port received.
32977 packet receive errors
3547019 packets sent
RcvbufErrors: 4212
SndbufErrors: 0
InCsumErrors: 0
UdpLite:
InDatagrams: 0
NoPorts: 0
InErrors: 0
OutDatagrams: 0
RcvbufErrors: 0
SndbufErrors: 0
InCsumErrors: 0
error parsing /proc/net/snmp: Success

ethtool Output:

XG210_WP02_SFOS 15.01.0 MR-3# ethtool -S Bridge_LAN
no stats available
XG210_WP02_SFOS 15.01.0 MR-3# ethtool -S Port1
NIC statistics:
rx_packets: 4794509
tx_packets: 2335180
rx_bytes: 810968783
tx_bytes: 202218405
rx_broadcast: 550328
tx_broadcast: 5078
rx_multicast: 3222889
tx_multicast: 21
multicast: 3222889
collisions: 0
rx_crc_errors: 0
rx_no_buffer_count: 0
rx_missed_errors: 0
tx_aborted_errors: 0
tx_carrier_errors: 0
tx_window_errors: 0
tx_abort_late_coll: 0
tx_deferred_ok: 0
tx_single_coll_ok: 0
tx_multi_coll_ok: 0
tx_timeout_count: 0
rx_long_length_errors: 0
rx_short_length_errors: 0
rx_align_errors: 0
tx_tcp_seg_good: 0
tx_tcp_seg_failed: 0
rx_flow_control_xon: 0
rx_flow_control_xoff: 0
tx_flow_control_xon: 0
tx_flow_control_xoff: 0
rx_long_byte_count: 810968783
tx_dma_out_of_sync: 0
tx_smbus: 0
rx_smbus: 0
dropped_smbus: 0
os2bmc_rx_by_bmc: 0
os2bmc_tx_by_bmc: 0
os2bmc_tx_by_host: 0
os2bmc_rx_by_host: 0
tx_hwtstamp_timeouts: 0
rx_hwtstamp_cleared: 0
rx_errors: 0
tx_errors: 0
tx_dropped: 0
rx_length_errors: 0
rx_over_errors: 0
rx_frame_errors: 0
rx_fifo_errors: 0
tx_fifo_errors: 0
tx_heartbeat_errors: 0
tx_queue_0_packets: 776457
tx_queue_0_bytes: 58987356
tx_queue_0_restart: 0
tx_queue_1_packets: 1558723
tx_queue_1_bytes: 132022413
tx_queue_1_restart: 0
rx_queue_0_packets: 3851276
rx_queue_0_bytes: 493450618
rx_queue_0_drops: 0
rx_queue_0_csum_err: 1
rx_queue_0_alloc_failed: 0
rx_queue_1_packets: 943233
rx_queue_1_bytes: 285533749
rx_queue_1_drops: 0
rx_queue_1_csum_err: 5
rx_queue_1_alloc_failed: 0
XG210_WP02_SFOS 15.01.0 MR-3# ethtool -S Port2
NIC statistics:
rx_packets: 0
tx_packets: 0
rx_bytes: 0
tx_bytes: 0
rx_broadcast: 0
tx_broadcast: 0
rx_multicast: 0
tx_multicast: 0
multicast: 0
collisions: 0
rx_crc_errors: 0
rx_no_buffer_count: 0
rx_missed_errors: 0
tx_aborted_errors: 0
tx_carrier_errors: 0
tx_window_errors: 0
tx_abort_late_coll: 0
tx_deferred_ok: 0
tx_single_coll_ok: 0
tx_multi_coll_ok: 0
tx_timeout_count: 0
rx_long_length_errors: 0
rx_short_length_errors: 0
rx_align_errors: 0
tx_tcp_seg_good: 0
tx_tcp_seg_failed: 0
rx_flow_control_xon: 0
rx_flow_control_xoff: 0
tx_flow_control_xon: 0
tx_flow_control_xoff: 0
rx_long_byte_count: 0
tx_dma_out_of_sync: 0
tx_smbus: 0
rx_smbus: 0
dropped_smbus: 0
os2bmc_rx_by_bmc: 0
os2bmc_tx_by_bmc: 0
os2bmc_tx_by_host: 0
os2bmc_rx_by_host: 0
tx_hwtstamp_timeouts: 0
rx_hwtstamp_cleared: 0
rx_errors: 0
tx_errors: 0
tx_dropped: 0
rx_length_errors: 0
rx_over_errors: 0
rx_frame_errors: 0
rx_fifo_errors: 0
tx_fifo_errors: 0
tx_heartbeat_errors: 0
tx_queue_0_packets: 0
tx_queue_0_bytes: 0
tx_queue_0_restart: 0
tx_queue_1_packets: 0
tx_queue_1_bytes: 0
tx_queue_1_restart: 0
rx_queue_0_packets: 0
rx_queue_0_bytes: 0
rx_queue_0_drops: 0
rx_queue_0_csum_err: 0
rx_queue_0_alloc_failed: 0
rx_queue_1_packets: 0
rx_queue_1_bytes: 0
rx_queue_1_drops: 0
rx_queue_1_csum_err: 0
rx_queue_1_alloc_failed: 0

Thanks for all your help!

Jose

 Hello again,

I've connected the Sophos XG to the Bridge, and managed to get the commands on production state. After applying the fixed speed, the issue is still happening:

console> show network interfaces
Bridge_LAN Zonetype:UNBOUND MAC Address:00:1A:8C:51:8A:08 MTU:1500
IPv4 Addr(s): 172.16.1.3/29 Bcast:172.16.1.7
IPv6 Addr(s): fe80::21a:8cff:fe51:8a08/64 (link-local)
UP BROADCAST RUNNING MULTICAST
RX State: packets:468893970 bytes:392817535575 (365.8 GiB)
errors:0 dropped:1370 overruns:0 frame:0
TX State: packets:475980078 bytes:313076385621 (291.5 GiB)
errors:0 dropped:0 overruns:0 carrier:0


Port1 Zonetype:LAN MAC Address:00:1A:8C:51:8A:08 MTU:1500
IPv6 Addr(s): fe80::21a:8cff:fe51:8a08/64 (link-local)
Speed:1000Mb/s Full Duplex Auto Negotiation:yes
UP BROADCAST RUNNING MULTICAST
RX State: packets:326663262 bytes:127449718446 (118.6 GiB)
errors:0 dropped:9 overruns:304294600 frame:0
TX State: packets:398203001 bytes:357424995732 (332.8 GiB)
errors:0 dropped:0 overruns:0 carrier:0


Port1.4095 Zonetype:LAN MAC Address:00:1A:8C:51:8A:08 MTU:1500
IPv6 Addr(s): fe80::21a:8cff:fe51:8a08/64 (link-local)
peed:1000Mb/s Full Duplex Auto Negotiation:yes
UP BROADCAST RUNNING MULTICAST
RX State: packets:0 bytes:0 (0.0 B)
errors:0 dropped:0 overruns:0 frame:0
TX State: packets:7 bytes:738 (738.0 B)
errors:0 dropped:0 overruns:0 carrier:0


Port2 Zonetype:WAN MAC Address:00:1A:8C:51:8A:09 MTU:1500
IPv6 Addr(s): fe80::21a:8cff:fe51:8a09/64 (link-local)
peed:1000Mb/s Full Duplex Auto Negotiation:yes
UP BROADCAST RUNNING MULTICAST
RX State: packets:439759585 bytes:446119713527 (415.4 GiB)
errors:0 dropped:0 overruns:264143088 frame:0
TX State: packets:388091890 bytes:130658151528 (121.6 GiB)
errors:0 dropped:0 overruns:0 carrier:0


Port2.4095 Zonetype:WAN MAC Address:00:1A:8C:51:8A:09 MTU:1500
IPv6 Addr(s): fe80::21a:8cff:fe51:8a09/64 (link-local)
peed:1000Mb/s Full Duplex Auto Negotiation:yes
UP BROADCAST RUNNING MULTICAST
RX State: packets:0 bytes:0 (0.0 B)
errors:0 dropped:0 overruns:0 frame:0
TX State: packets:7 bytes:738 (738.0 B)
errors:0 dropped:0 overruns:0 carrier:0

XG210_WP02_SFOS 15.01.0 MR-3# ethtool -S Port1
NIC statistics:
rx_packets: 326806982
tx_packets: 398446281
rx_bytes: 130023448747
tx_bytes: 360826530798
rx_broadcast: 1551018
tx_broadcast: 1332185
rx_multicast: 14938213
tx_multicast: 10693
multicast: 14938213
collisions: 0
rx_crc_errors: 0
rx_no_buffer_count: 0
rx_missed_errors: 0
tx_aborted_errors: 0
tx_carrier_errors: 0
tx_window_errors: 0
tx_abort_late_coll: 0
tx_deferred_ok: 0
tx_single_coll_ok: 0
tx_multi_coll_ok: 0
tx_timeout_count: 8
rx_long_length_errors: 0
rx_short_length_errors: 0
rx_align_errors: 0
tx_tcp_seg_good: 0
tx_tcp_seg_failed: 0
rx_flow_control_xon: 0
rx_flow_control_xoff: 0
tx_flow_control_xon: 0
tx_flow_control_xoff: 0
rx_long_byte_count: 130023448747
tx_dma_out_of_sync: 0
tx_smbus: 0
rx_smbus: 0
dropped_smbus: 0
os2bmc_rx_by_bmc: 0
os2bmc_tx_by_bmc: 0
os2bmc_tx_by_host: 0
os2bmc_rx_by_host: 0
tx_hwtstamp_timeouts: 0
rx_hwtstamp_cleared: 0
rx_errors: 0
tx_errors: 0
tx_dropped: 0
rx_length_errors: 0
rx_over_errors: 0
rx_frame_errors: 0
rx_fifo_errors: 304294600
tx_fifo_errors: 0
tx_heartbeat_errors: 0
tx_queue_0_packets: 71189423
tx_queue_0_bytes: 76625644605
tx_queue_0_restart: 0
tx_queue_1_packets: 327260696
tx_queue_1_bytes: 281003430295
tx_queue_1_restart: 0
rx_queue_0_packets: 151618006
rx_queue_0_bytes: 55971457089
rx_queue_0_drops: 137924835
rx_queue_0_csum_err: 45
rx_queue_0_alloc_failed: 0
rx_queue_1_packets: 175191061
rx_queue_1_bytes: 71509904861
rx_queue_1_drops: 166369765
rx_queue_1_csum_err: 14
rx_queue_1_alloc_failed: 0

XG210_WP02_SFOS 15.01.0 MR-3# ethtool -S Port2
NIC statistics:
rx_packets: 440053260
tx_packets: 388302942
rx_bytes: 449831128962
tx_bytes: 134031575147
rx_broadcast: 1160146
tx_broadcast: 1468531
rx_multicast: 10673
tx_multicast: 14040840
multicast: 10673
collisions: 0
rx_crc_errors: 0
rx_no_buffer_count: 0
rx_missed_errors: 0
tx_aborted_errors: 0
tx_carrier_errors: 0
tx_window_errors: 0
tx_abort_late_coll: 0
tx_deferred_ok: 256836
tx_single_coll_ok: 0
tx_multi_coll_ok: 0
tx_timeout_count: 3
rx_long_length_errors: 0
rx_short_length_errors: 0
rx_align_errors: 0
tx_tcp_seg_good: 0
tx_tcp_seg_failed: 0
rx_flow_control_xon: 553141
rx_flow_control_xoff: 971217
tx_flow_control_xon: 0
tx_flow_control_xoff: 0
rx_long_byte_count: 449831128962
tx_dma_out_of_sync: 0
tx_smbus: 0
rx_smbus: 0
dropped_smbus: 0
os2bmc_rx_by_bmc: 0
os2bmc_tx_by_bmc: 0
os2bmc_tx_by_host: 0
os2bmc_rx_by_host: 0
tx_hwtstamp_timeouts: 0
rx_hwtstamp_cleared: 0
rx_errors: 0
tx_errors: 0
tx_dropped: 0
rx_length_errors: 0
rx_over_errors: 0
rx_frame_errors: 0
rx_fifo_errors: 264143088
tx_fifo_errors: 0
tx_heartbeat_errors: 0
tx_queue_0_packets: 13231709
tx_queue_0_bytes: 5257628889
tx_queue_0_restart: 0
tx_queue_1_packets: 375074542
tx_queue_1_bytes: 125440529004
tx_queue_1_restart: 0
rx_queue_0_packets: 225874311
rx_queue_0_bytes: 228188636332
rx_queue_0_drops: 111393676
rx_queue_0_csum_err: 21
rx_queue_0_alloc_failed: 0
rx_queue_1_packets: 214182721
rx_queue_1_bytes: 218229179843
rx_queue_1_drops: 152749412
rx_queue_1_csum_err: 23
rx_queue_1_alloc_failed: 0

Thanks for all your help.

Regards,

Jose,

what about CPU/RAM utilization?

I think you should open a ticket with support. It can be a problem that XG is too small, NIC driver issue or a bug inside the code.

Let us know!

Thanks
